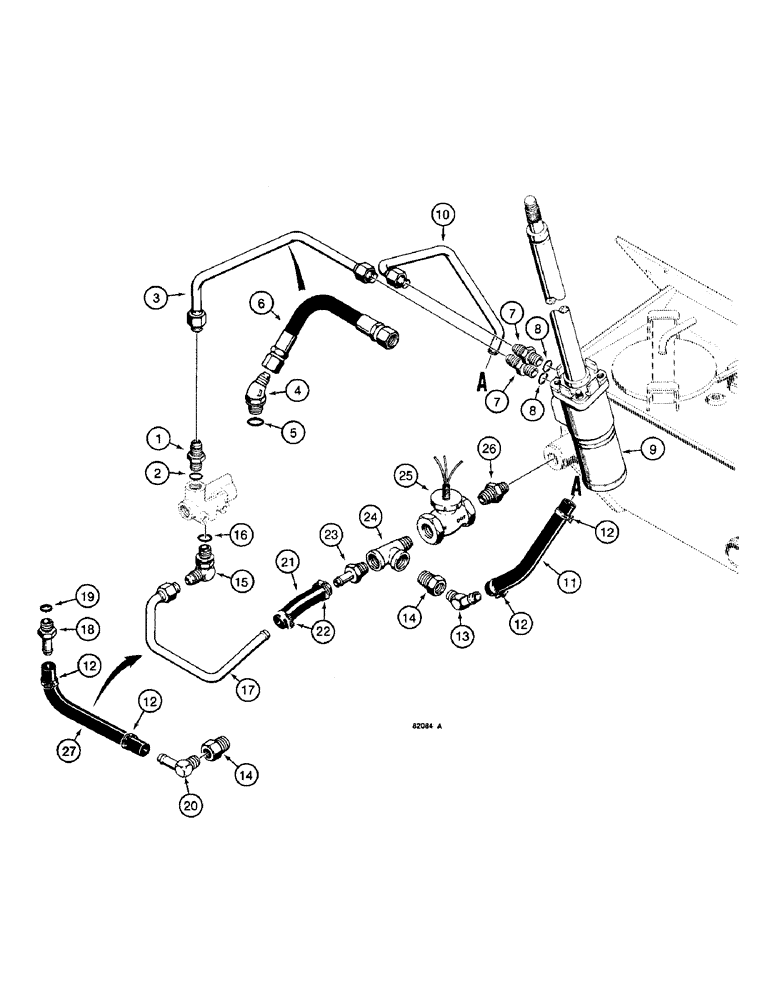

Запчасти Case W14 (256) - AUXILIARY STEERING HYDRAULIC CIRCUITS, FLOW CONTROL VALVE TO FILTER IN RESEVOIR (05) - STEERING

1

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, used with L59644 tube, Includes: Ref. 2

1шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

3

L59644

TUBE,0.625" OD x 10.8, 6.2" L

- flow control valve to steering valve, order L73647 hose and 218-5137 elbow, Refs. 4 and 6

1шт.

4

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

ELBRefjustable, used with L73647 hose, Ref. 5

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

6

L73647

HOSE ASSY.,0.63" ID x 19.00", SAE 100R2 Type A

HOSE ASSY, 0.63" ID x 19.00", SAE 100R2, Type A, Flow Control Valve to Steering Valve

1шт.

7

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., , straight, Incl. Ref. 8 7/8"-14, 37º x 3/4"-16, O-Ring

2шт.

8

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, adapter

1шт.

9

REF

INSTRUCTION

CONTROL VALVE - steering, see figures 244 and 248 for correct valve and components

1шт.

10

L103770

TUBE,0.625" OD

- steering valve return

1шт.

11

L73652

HOSE,0.63" ID x 10.00", SAE 100R6

1шт.

12

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose

2-4шт.

13

217-425

45 ELBOW,5/8" Hose Barb x 3/4" NPTF

STEM FITTING - 45 degree

1шт.

14

221-65

REDUCER,Hex, 1" x 3/4" NPT

- 1" NPT x 3/4" NPT

1-2шт.

15

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, used with L59837 tube, Ref. 17, Incl. Ref. 16

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

17

L59837

TUBE,0.625" OD

- order L73652 hose, 217-175 stem fitting, 217-165 elbow, and 221-65 reducer, Refs. 11, 18, and 20

1шт.

18

217-175

FITTING,5/8" Hose Barb x 7/8" - 14 Male ORB

Includes Ref. 19 5/8" Hose x 7/8"-14 ORB, Beaded

1шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- stem fitting

1шт.

20

217-165

ELBOW,90 Degree, 3/4" NPT x 5/8" Barbed

STEM FITTING - 90 degree

1шт.

21

L51361

HOSE,0.63" ID x 4.00", SAE 30R2 Type 1

0.63" ID x 4.00", SAE 30R2, Type 1

1шт.

22

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose

2шт.

23

217-382

STEM FITTING - straight 5/8" Hose x 1" NPTF Beaded

1шт.

24

221-695

FITTING,1" NPT

TEE - 1" NPT

1шт.

25

L58400

PRESSURE SWITCH

SWITCH - flow control

1шт.

26

217-1075

HYD CONNECTOR,1" - 11-1/2 NPTF x 3/4" - 14 NPTF

ADAPTER - male, straight

1шт.

27

L53607

HOSE,127.00 mm ID x 762.00 mm, SAE 30R2 Type 3

15.9 mm ID x 762 mm, SAE 30R2, Type 3

1шт.
