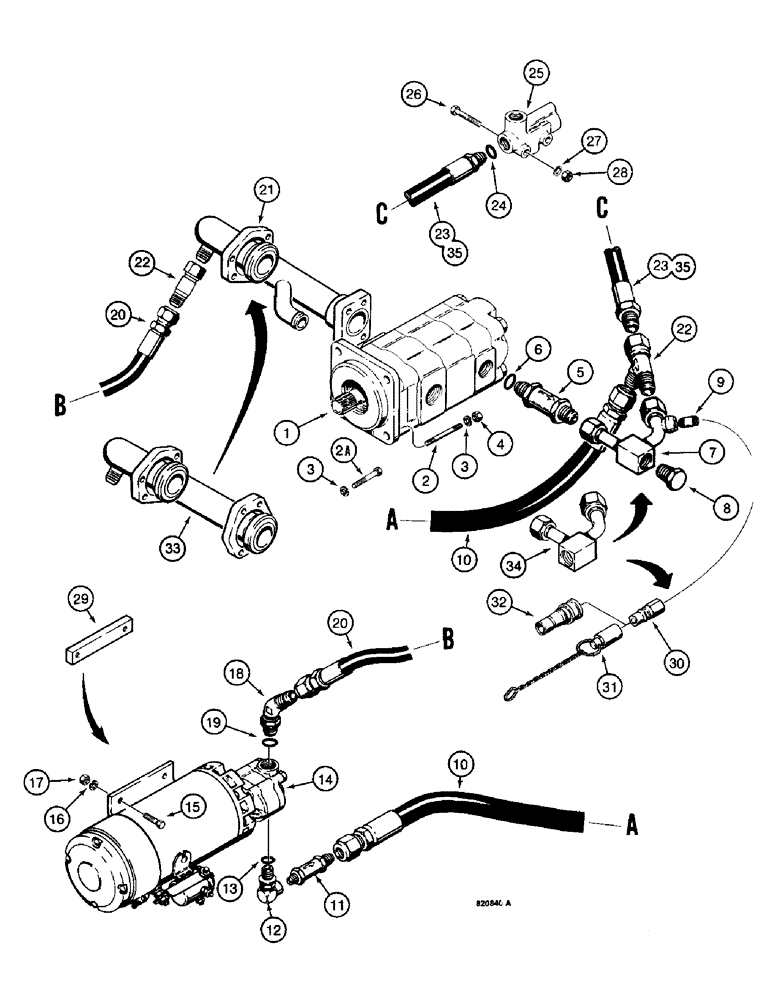

Запчасти Case W14 (254) - AUXILIARY STEERING HYDRAULIC CIRCUITS, PUMP TO FLOW CONTROL VALVE (05) - STEERING

1

REF

INSTRUCTION

HYDRAULIC PUMP - parts list figure 270 and 272

1шт.

2

A27182

STUD

- special, used with CS and S pump

4шт.

2a

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Used with Vickers pump Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

3

92-8

LOCK WASHER,1/2"

2-4шт.

4

25-108

NUT,1/2"-13, G5

- hex, 1/2"-13 NC, used with CS and S pump

4шт.

5

L58391

VALVE

CHECK VALVE - steering

1шт.

6

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- check valve

1шт.

7

L100964

TUBE

- hydraulic, used with CS and S pump

1шт.

8

221-655

PLUG,Hex Hd, 3/4"-14

- hex head, 3/4" NPT, used with Ref. 7, L100964 tube

1шт.

9

321-130

DECAL

NIPPLE - tube, used with Ref. 7, L100964 tube

1шт.

10

L72662

HOSE ASSY.,0.50" ID x 37.00", SAE 100R1 Type A

HOSE ASSY, 0.50" ID x 37.00", SAE 100R1, Type A

1шт.

11

L70819

VALVE

CHECK VALVE - steering

1шт.

12

218-5460

FITTING

ELBOW - 90 degree, adjustable, Includes: Ref. 13

1шт.

13

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, elbow

1шт.

14

L116118

PUMP, HYDRAULIC

PUMP - parts list figure 262

1шт.

15

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Not used with L72530 plate Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

15

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Used with L72530 plate, Ref. 29 Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

16

92-6

LOCK WASHER,3/8"

4шт.

17

25-106

NUT,3/8"-16, G5

- hex, 3/8"-16 NC, used on models without backhoe

4шт.

18

218-5146

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 45 degree, adjustable, without backhoe, Includes: Ref. 19

1шт.

18

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, with backhoe, not shown, Includes: Ref. 19

1шт.

19

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, 218-5146 and 218-5121 fittings

1шт.

20

L72669

HOSE ASSY.,0.50" ID x 24.00", SAE 100R3

HOSE ASSY, , With Backhoe 0.50" ID x 24.00", SAE 100R3

1шт.

20

L72663

HOSE ASSY.,0.50" ID x 14.00", SAE 100R3

HOSE ASSY, , Without Backhoe 0.50" ID x 14.00", SAE 100R3

1шт.

21

L54948

MANIFOLD

TUBE - suction, used with CS and S pump

1шт.

22

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

Special 37º, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

2шт.

23

L50800

HOSE

- 34-13/16" (884 mm) long, used with CS and S pump, Includes: Ref. 24

1шт.

24

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- hose

1шт.

25

L51457

VALVE

- flow control, parts list figure 260

1шт.

26

13-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

27

92-5

LOCK WASHER,5/16"

2шт.

28

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16"-18 NC

2шт.

29

L72530

PLATE

- pump mount, used on models with backhoe

2шт.

30

S206607

DISC

COUPLING - male

1шт.

31

S206608

CAP

COVER - dust

1шт.

32

S206610

MAKING-UP

COUPLING - female

1шт.

33

L108299

MANIFOLD

TUBE - suction, used with Vickers pump

1шт.

34

L111006

TUBE ASSY.,3.3" L

TUBE - steering supply, used with Vickers pump

1шт.

35

L111011

HOSE ASSY.

HOSE - 31" (787 mm) long, used with Vickers pump

1шт.
