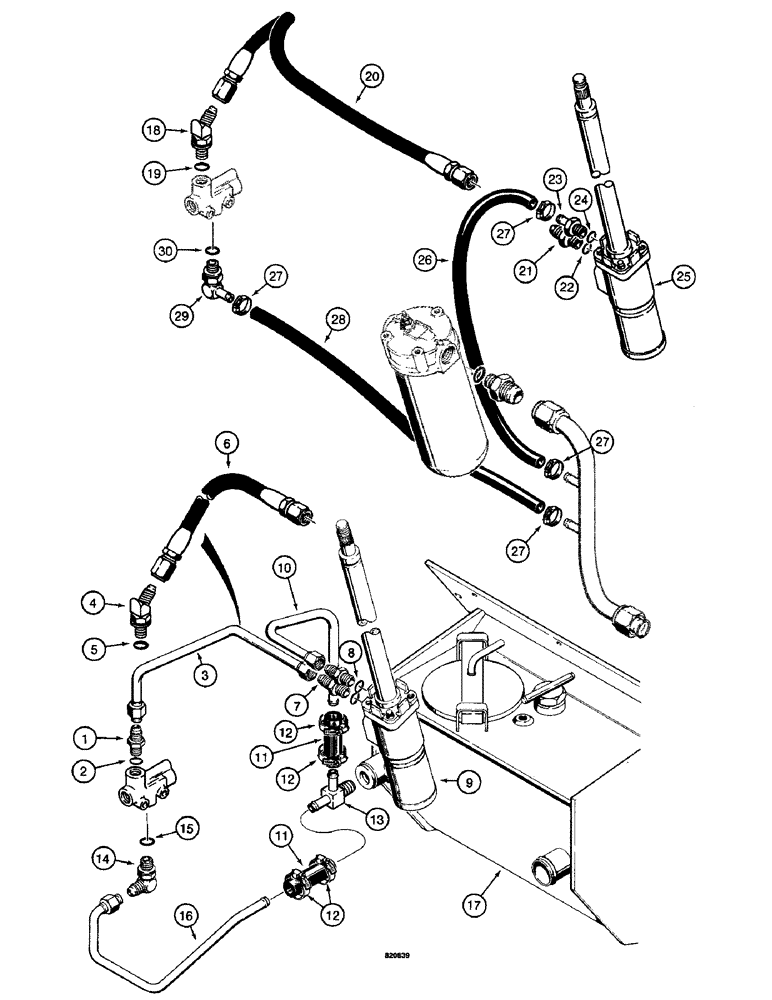

Запчасти Case W14 (252) - STEERING HYDRAULIC CIRCUIT, FLOW CONTROL VALVE TO FILTER IN RESEVOIR (05) - STEERING

1

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, used with L59644 tube, Includes: Ref. 2

1шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

3

L59644

TUBE,0.625" OD x 10.8, 6.2" L

- flow control valve to steering valve, order L73647 hose and 218-5137 elbow, Refs. 4 and 6

1шт.

4

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

ELBRefjustable, used with L73647 hose, Ref. 5

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

6

L73647

HOSE ASSY.,0.63" ID x 19.00", SAE 100R2 Type A

HOSE ASSY, 0.63" ID x 19.00", SAE 100R2, Type A, Flow Control Valve to Steering Valve

1шт.

7

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., , straight, Incl. Ref. 8 7/8"-14, 37º x 3/4"-16, O-Ring

2шт.

8

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, adapter

1шт.

9

REF

INSTRUCTION

CONTROL VALVE - steering, see figures 244 and 248 for correct valve and components

1шт.

10

L102522

TUBE,0.625" OD

- steering valve to reservoir

1шт.

11

L51361

HOSE,0.63" ID x 4.00", SAE 30R2 Type 1

0.63" ID x 4.00", SAE 30R2, Type 1

2шт.

12

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose

4шт.

13

L51622

TEE

- special

1шт.

14

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, Incl. Ref. 15

1шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

16

L59762

TUBE,0.625" OD

- flow control valve to reservoir

1шт.

17

REF

INSTRUCTION

HYDRAULIC RESERVOIR - parts list figure 452

1шт.

18

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 45 degree, adjustable, models with external hydraulic filter, Incl. Ref 19

1шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow, models with external hydraulic filter

1шт.

20

L73647

HOSE ASSY.,0.63" ID x 19.00", SAE 100R2 Type A

HOSE ASSY, 0.63" ID x 19.00", SAE 100R2, Type A, Flow Control Valve to Steering Valve, Models With External Hydraulic Filter

1шт.

21

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., , straight, models with external hydraulic filter, Incl. Ref. 22 7/8"-14, 37º x 3/4"-16, O-Ring

1шт.

22

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, adapter, models with external hydraulic filter

1шт.

23

217-395

FITTING,5/8" Hose Barb x 3/4" - 16 Male ORB

STEM FITTING - straight, models with external hydraulic filter, Includes: Ref. 24

1шт.

24

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, stem fitting, models with external hydraulic filter

1шт.

25

REF

INSTRUCTION

CONTROL VALVE - steering, see figures 244 and 248 for correct valve and components, models with external hydraulic filter

1шт.

26

L106433

HOSE

- 5/8" (16 mm) ID x 22" (559 mm) long, models with external hydraulic filter

1шт.

27

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose, models with external hydraulic filter

4шт.

28

L53607

HOSE,127.00 mm ID x 762.00 mm, SAE 30R2 Type 3

15.9 mm ID x 762 mm, SAE 30R2, Type 3, for Models With External Hydraulic Filter

1шт.

29

217-349

ELBOW,90 Degree Elbow, 5/8" Hose Barb x 7/8" - 14 Male ORB

90°, Models with external hydraulic filter, Incl Ref 30

1шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- stem fitting, models with external hydraulic filter

1шт.
