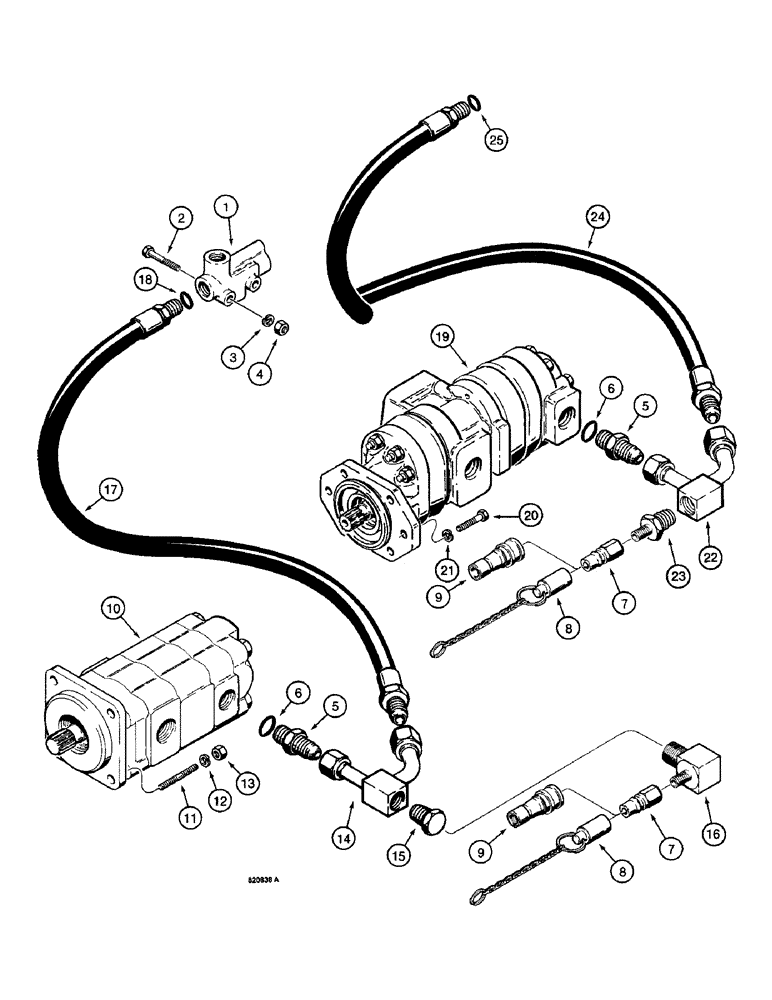

Запчасти Case W14 (250) - STEERING HYDRAULIC CIRCUIT, PUMP TO FLOW CONTROL VALVE, MODELS W/O AUXILIARY STEERING (05) - STEERING

1

L51457

VALVE

- flow control, part list figure 260

1шт.

2

13-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

3

92-5

LOCK WASHER,5/16"

2шт.

4

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16"-18 NC

2шт.

5

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - male, straight, Incl. Ref. 6

1шт.

6

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- adapter

1шт.

7

S206607

DISC

COUPLING - male

1шт.

8

S206608

CAP

COVER - dust

1шт.

9

S206610

MAKING-UP

COUPLING - female

1шт.

10

REF

INSTRUCTION

HYDRAULIC PUMP - Commercial-Shearing, parts list figure 270, pump used, Serial Range: -9151870

1шт.

11

A27182

STUD

- special, pump used, Serial Range: -9151870

4шт.

12

92-8

LOCK WASHER,1/2"

pump used 1/2", Serial Range: -9151870

4шт.

13

25-108

NUT,1/2"-13, G5

- hex, 1/2"-13 NC, pump used, Serial Range: -9151870

4шт.

14

L53111

TUBE,4, 3.1" L

- pump to flow control valve, used with CS and S pump, pump used, Serial Range: -9151870

1шт.

15

221-655

PLUG,Hex Hd, 3/4"-14

- hex head, 3/4" NPT, if used, pump used, Serial Range: -9151870

1шт.

16

L100938

FITTING

ELBOW - 90 degree, pump used, Serial Range: -9151870

1шт.

17

L50800

HOSE

- 34-13/16" (884 mm), pump used, Includes: Ref. 18, Serial Range: -9151870

1шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- hose, pump used, Serial Range: -9151870

1шт.

19

REF

INSTRUCTION

HYDRAULIC PUMP - Vickers, parts list figure 272, pump used, Start Serial: 9151870

1шт.

20

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Pump used Hex, 1/2"-13 x 1 1/2", G5, Full Thd, Start Serial: 9151870

2шт.

21

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Pump used 1/2", Start Serial: 9151870

2шт.

22

L106806

TUBE ASSY.

TUBE - pump to flow control valve, used with Vickers pump, pump used, Start Serial: 9151870

1шт.

23

217-1092

HYD CONNECTOR,3/4"-14 NPTF x 1/4"-18 NPTF

CONNECTOR - straight, pump used, Start Serial: 9151870

1шт.

24

L106908

HYDRAULIC HOSE,0.63" ID x 33.00", SAE 100R2

HOSE, , Pump Used, Includes: Ref. 25 0.63" ID x 33.00", SAE 100R2, Start Serial: 9151870

1шт.

25

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- hose, pump used, Start Serial: 9151870

1шт.
