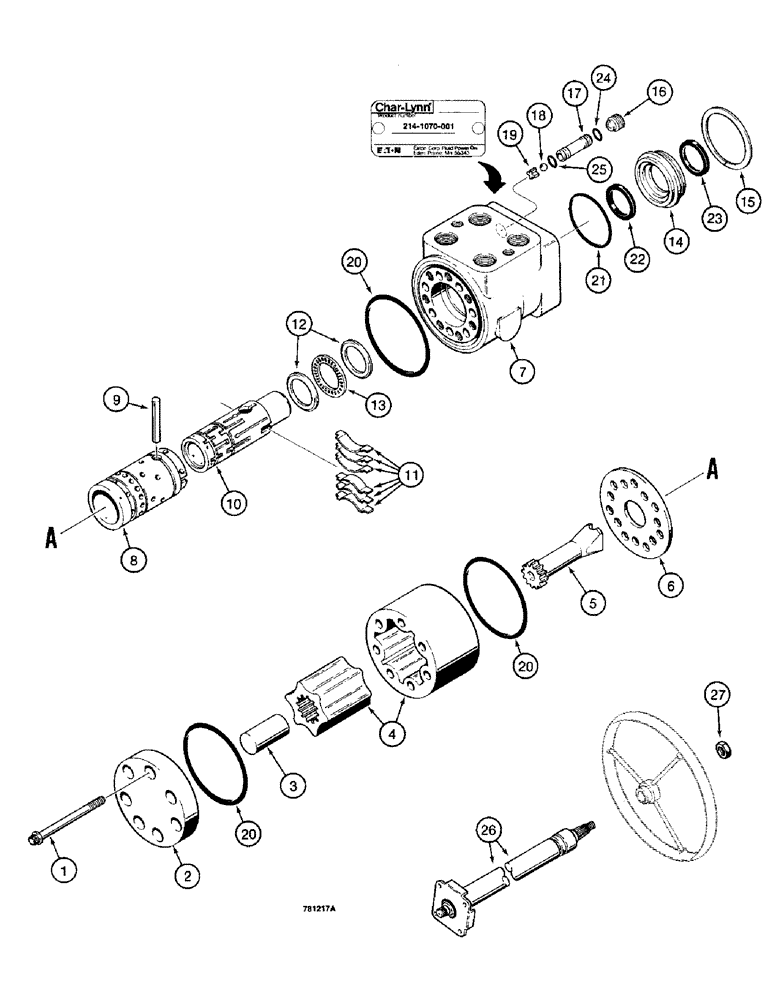

Запчасти Case W14 (248) - L79641 STEERING CONTROL VALVE AND COLUMN (05) - STEERING

L79641

PUMP

VALVE AND COLUMN - Char-Lynn No. 214-1069-001, Includes: Ref. 1 - 26

1шт.

See name plate on valve for correct model number. See figure 244 for other valves.

1шт.

D83214

CONTROL

VALVE ASSEMBLY - steering - Char-Lynn No. 211-1039-001, Includes: Ref. 1 - 25

1шт.

1

166-537

12 PT SCREW,Flg, 5/16" - 24 x 3 1/2", Gr 8

SCREW - Ferry head, 5/16"-24 NF x 3-1/2"

7шт.

2

D82809

COVER

CAP - end

1шт.

3

D83217

SPACER

- drive shaft

1шт.

4

D83216

WHEEL GEAR

GEROTOR SET - valve

1шт.

5

L30878

DRIVE SHAFT

- valve

1шт.

6

S113037

PLATE

- spacer

1шт.

D83215

BODY

CONTROL ASSEMBLY - valve, Includes: Ref. 7 - 11

1шт.

7

NSS

NOT SOLD SEPARAT

HOUSING - control assembly

1шт.

8

NSS

NOT SOLD SEPARAT

SLEEVE - control assembly

1шт.

9

L30888

PIN

- sleeve

1шт.

10

NSS

NOT SOLD SEPARAT

SPOOL - control assembly

1шт.

11

L30889

SPRING

- spool

6шт.

12

D82804

RACE

THRUST WASHER - bearing

2шт.

13

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

BEARING, THRUST - Needle

1шт.

14

S110170

BUSHING

- seal

1шт.

15

S110169

WASHER

RETAINING RING - bushing

1шт.

16

D82805

SET SCREW

SET SCREW - special

1шт.

17

D82806

VALVE SEAT

SPOOL - ball check

1шт.

18

211-9

BALL,5/16" Dia

- check

1шт.

19

L35368

RETAINER

- check ball

1шт.

D82802

SEAL PACKAGE

KIT - seal, Includes: Ref. 20 - 25

1шт.

20

N6392

O-RING,0.07" Thk x 2.864" ID, -40, Cl 5, 75 Duro

SEAL - cap and plate

3шт.

21

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL - O-ring

1шт.

22

A72029

RING

SEAL - quad ring

1шт.

23

A28211

OIL SEAL

- control assembly

1шт.

24

A30825

O-RING,0.364" ID x 0.504" OD x 0.07"

SEAL - O-ring

1шт.

25

L30893

O-RING,1/16" Thk x 5/16" ID

SEAL - O-ring, 7/16 x 5/16 x 1/16 in

1шт.

26

D80621

POST

COLUMN ASSEMBLY - steering

1шт.

27

F19646

LOCK NUT,13/16"-20, Thin

NUT - steering wheel

1шт.
