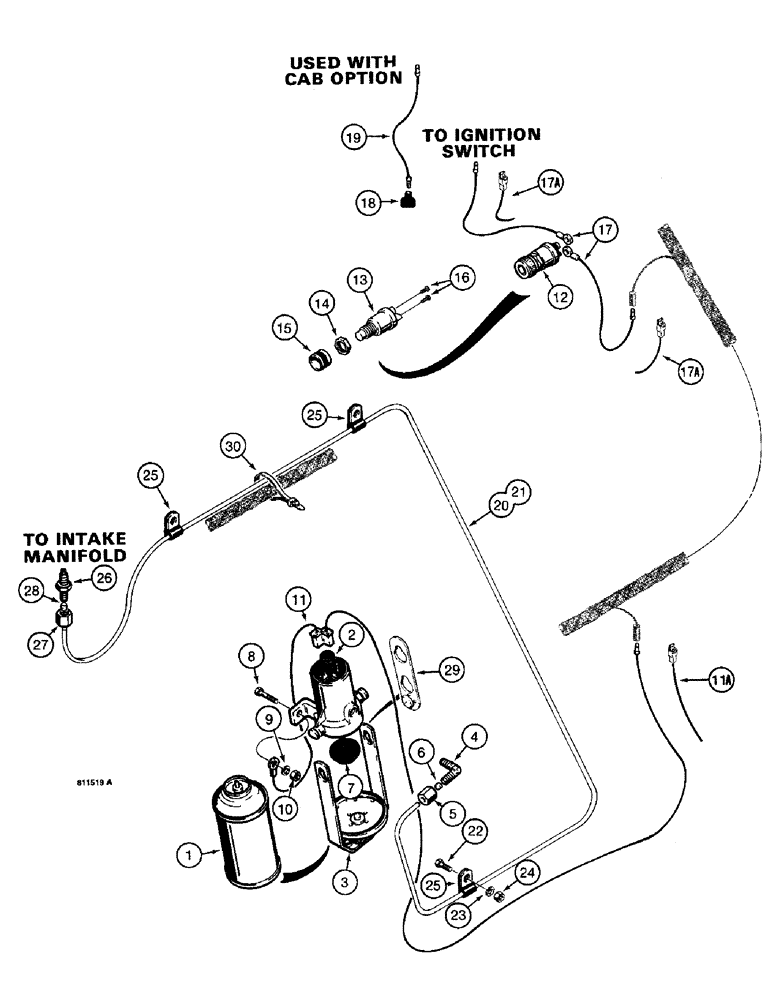

Запчасти Case W14 (240) - COLD START SYSTEM, SEE ITEMS 1 AND 2 FOR IDENTIFICATION (04) - ELECTRICAL SYSTEMS

1

B17072

START SPRAY FLUID

CONTAINER - ether

1шт.

See figure 238 for other cold start system

1шт.

L73025

STARTING MOTOR

SOLENOID ASSEMBLY - 24 volt

1шт.

See figure 238 for other cold start system

1шт.

2

NSS

NOT SOLD SEPARAT

SOLENOID - cold start

1шт.

3

D77648

BAIL

- container

1шт.

A44809

FITTING

- 90 degree, Includes: Ref. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

5

222-110

TUBE NUT,3/8"-24

NUT - compression

1шт.

6

222-100

TUBE NUT,1/8" Tube

SLEEVE - compression

1шт.

7

R30786

GASKET

- solenoid

1шт.

8

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

9

92-5

LOCK WASHER,5/16"

2шт.

10

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16"-18 NC

2шт.

11

L73023

ELECTRICAL WIRE

WIRE - jumper, used before tractor SN 9154965

1шт.

11a

L114172

HARNESS

WIRE - jumper, used on tractor SN 9154965 and after

1шт.

12

L72776

SWITCH

- push button, Includes: Ref. 13 - 16

1шт.

13

NSS

NOT SOLD SEPARAT

BODY - switch

1шт.

14

D73741

NUT

- hex, special

1шт.

15

H275784

JAM NUT

- special

1шт.

16

173-93

BOLT,Sl Rnd Hd, #10 - 24 x 1/4"

SCREW - round head, No. 10 - 32 NF x 1/4"

2шт.

17

A18112

ELECTRICAL WIRE

WIRE - jumper, used before tractor SN 9154965

2шт.

17a

L114446

HARNESS

WIRE - jumper, used on tractor SN 9154965 and after

2шт.

18

A8210

CONNECTOR, ELEC

CONNECTOR - electrical, 3-way, if used

1шт.

19

L58674

ELECTRICAL WIRE

WIRE - jumper, if used

1шт.

20

D35090

TUBE

- nylon, 57" (1448 mm) long, uses P-clamp and hardware, if used

1шт.

21

L16688

TUBE,0.078" ID x 0.125" OD x 32" L

- nylon, 32" (813 mm) long, if used

1шт.

22

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

23

92-6

LOCK WASHER,3/8"

2шт.

24

25-106

NUT,3/8"-16, G5

- hex, 3/8"-16 NC

2шт.

25

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

- used with D35090 tube

3шт.

L73024

NOZZLE CAP

NOZZLE ASSEMBLY - cold start, Includes: Ref. 26 - 28

1шт.

26

NSS

NOT SOLD SEPARAT

BODY - nozzle

1шт.

27

222-110

TUBE NUT,3/8"-24

NUT - compression

1шт.

28

222-100

TUBE NUT,1/8" Tube

SLEEVE - compression

1шт.

29

R30812

LINK

- bail

2шт.

30

L18337

CABLE TIE,9.95"-12.1" lg

TIE STRAP - tube, used with L16688 tube

4шт.
