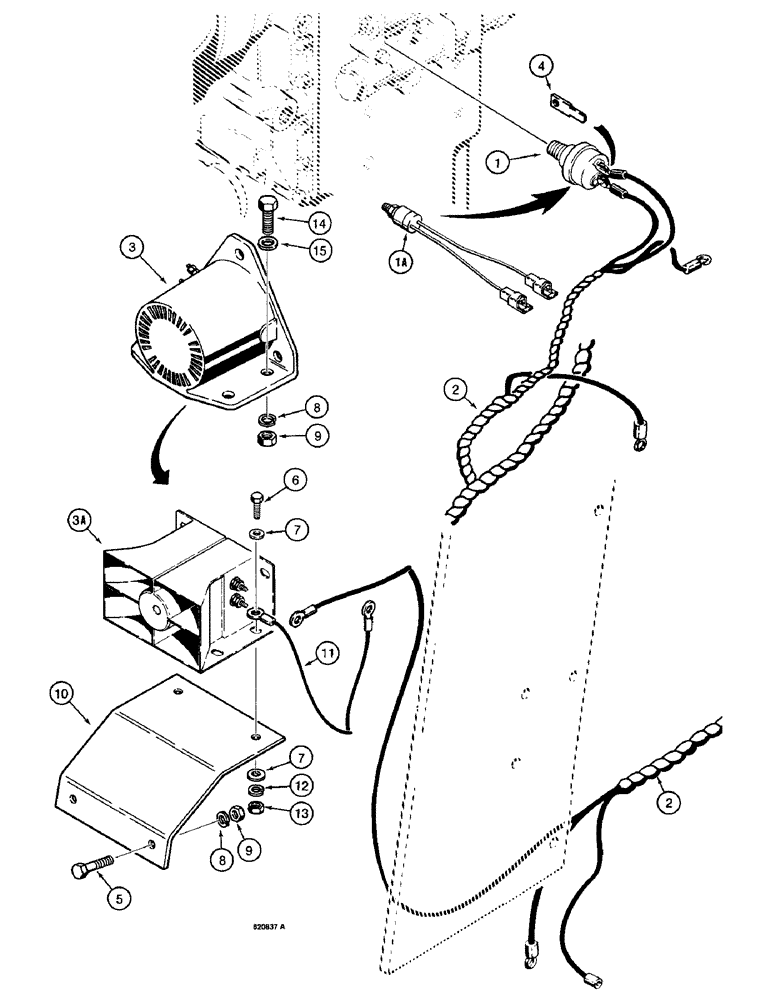

Запчасти Case W14 (234) - BACKUP ALARM, USED BEFORE PIN 9154965 (04) - ELECTRICAL SYSTEMS

1

L57459

SWITCH

- backup alarm, has screw type terminals, order Ref. 1A and L36238 kit below

1шт.

1a

L112588

SWITCH

- backup alarm, has spade type terminals

1шт.

See P/N L57459, Backup Alarm Switch

1шт.

2

REF

INSTRUCTION

HARNESS - rear, see figures 144 - 150

1шт.

3

D75814

BUZZER

ALARM ASSEMBLY - backup, for service, order Ref. 3A L109087 alarm, and Refs. 6, 7, 12, and 13

1шт.

3a

L109087

HOUSING

ALARM ASSEMBLY - backup

1шт.

4

L59682

TERMINAL CONNECTOR

TERMINAL - straight

1шт.

5

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

6

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

7

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

4шт.

8

92-6

LOCK WASHER,3/8"

2-4шт.

9

25-106

NUT,3/8"-16, G5

- hex, 3/8"-16 NC

2-4шт.

10

L101141

BRACKET

MOUNT - alarm

1шт.

11

L59563

ELECTRICAL WIRE

WIRE - ground

1шт.

12

92-5

LOCK WASHER,5/16"

2шт.

13

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16"-18 NC

2шт.

14

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

15

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

L36238

KIT

- electrical, includes parts to adapt different switches to different harnesses

1шт.

See P/N L57459, Backup Alarm Switch

1шт.
