Запчасти Case W14 (224) - CAB FRONT WIPERS, USED BEFORE PIN 9154965, FRONT WIPER - (04) - ELECTRICAL SYSTEMS

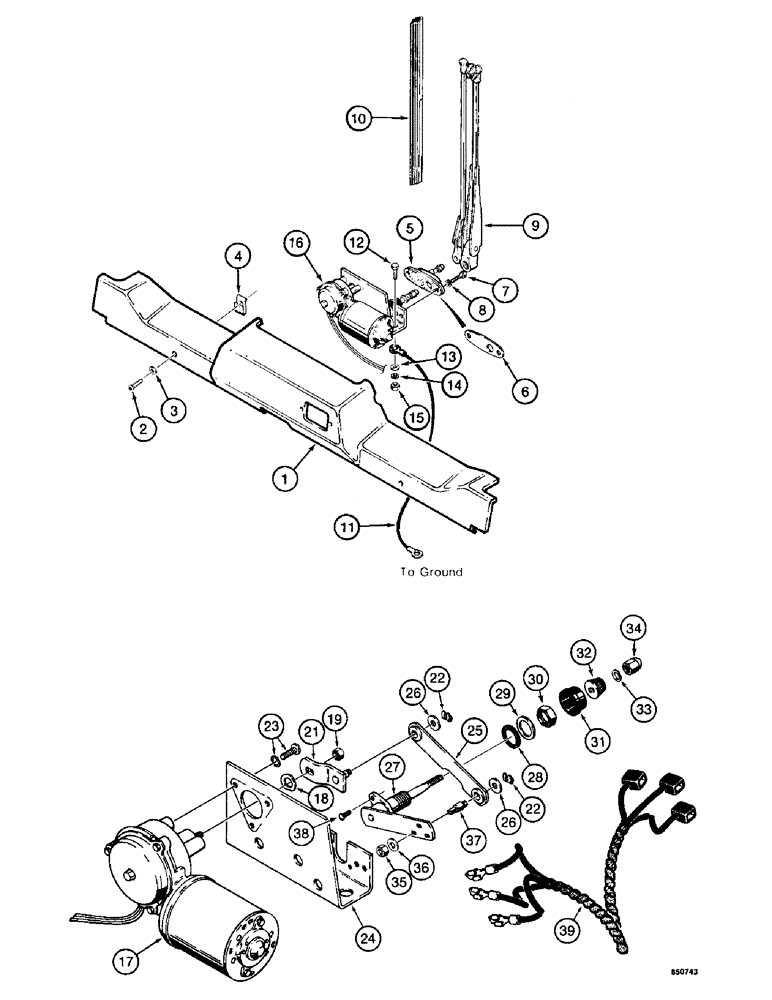

Схема запчастей Case W14 - (224) - CAB FRONT WIPERS, USED BEFORE PIN 9154965, FRONT WIPER - (04) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

1

L111751

COVER

- wiper, motor, cab SN 44769 and after, brown

1шт.

1

L71469

COVER

- wiper, motor, black, Serial Range: -9130338

1шт.

1

L77437

PANEL

COVER - wiper, motor, black, Start Serial: 9130338

1шт.

2

187-1099

SELF-TAP SCREW,Cross Oval Hd, #10 x 1 1/4"

SCREW - self-tapping, Phillips oval head, No. 10 - 16 NC x 1-1/4", black

4шт.

3

F43576

WASHER

- black nylon, No. 10

4шт.

4

131-645

NUT,Tinn, U, #10

- U-type, No. 10 - 16 NC

4шт.

5

L35753

ADAPTER

- pantograph wiper, front wiper - included in cab before cab SN 52650

1шт.

6

D70646

BUSHING

SPACER - adapter, front wiper - included in cab before cab SN 52650

1шт.

7

14-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5, Full Thd

- hex head, 1/"-20 NC x 3/4", front wiper - includer in cab before cab SN 52650

2шт.

8

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Front wiper - included in cab before cab S/N 52650 1/4"

2шт.

9

L35263

ARM

- wiper, 18" (458 mm) long, front wiper - included in cab before cab SN 52650

1шт.

10

F42214

WIPER

BLADE - wiper, 18" (458 mm) long, front wiper - included in cab before cab SN 52650

1шт.

11

L40793

ELECTRICAL WIRE

WIRE - ground, front wiper - included in cab before cab SN 52650

1шт.

12

113-335

BOLT,Hex, 7/16" - 14 x 3/4", Gr 5, Full Thd

Front wiper - included in cab before cab SN 52650 Hex, 7/16"-14 x 3/4", G5, Full Thd

1шт.

13

95-7

WASHER,7/16"

- flat, , front wiper - included in cab before cab SN 52650 7/16"

1шт.

14

92-7

LOCK WASHER,7/16"

front wiper - included in cab before cab SN 52650 7/16"

1шт.

15

25-107

NUT,7/16"-14, G5

- hex, 7/16"-14 NC, front wiper - included in cab before cab SN 52650

1шт.

16

L35259

WIPER MOTOR

MOTOR - wiper, front, bullet connectors, use F93654 motor and N7016 jumper wire, front wiper - included in cab before cab SN 52650

1шт.

16

F93654

WIPER MOTOR

MOTOR ASSEMBLY - windshield wiper, optional wiper motor available as part of L36262 kit, see figures 174 and 228, front wiper - included in cab before cab SN 52650, Includes: Ref. 17 - 19

1шт.

17

NSS

NOT SOLD SEPARAT

MOTOR - 24V, front wiper - included in cab before cab SN 52650

1шт.

18

D71411

WASHER

- wave, front wiper - included in cab before cab SN 52650

1шт.

19

F44452

LOCK NUT

AND EXTERNAL WASHER - 1/4"-28 NF, front wiper - included in cab before cab SN 52650

1шт.

20

N6029

GEAR

DRIVE GEAR - plastic, not shown, front wiper - included in cab before cab SN 52650

1шт.

21

A36091

ARM

- drive, front wiper - included in cab before cab SN 52650

1шт.

22

D71414

CLIP

- spring, front wiper - included in cab before cab SN 52650

2шт.

23

D72849

SCREW

AND WASHER - No. 10 - 32 NF, front wiper - included in cab before cab SN 52650

3шт.

24

D72850

BRACKET

- motor, front wiper - included in cab before cab SN 52650

1шт.

25

D71427

LINK,85.85mm L

- wiper, front wiper - included in cab before cab SN 52650

1шт.

26

A22431

WASHER

SPACER - washer, front wiper - included in cab before cab SN 52650

2шт.

D72848

SHAFT

AND PIVOT - wiper, front wiper - included in cab before cab SN 52650, Includes: Ref. 27 - 37

1шт.

27

NSS

NOT SOLD SEPARAT

SHAFT - wiper, front wiper - included in cab before cab SN 52650

1шт.

28

D71417

SPECIAL WASHER

WASHER - felt, front wiper - included in cab before cab SN 52650

1шт.

29

D71418

WASHER

- flat, front wiper - included in cab before cab SN 52650

1шт.

30

D71419

NUT

- shaft, front wiper - included in cab before cab SN 52650

1шт.

31

D71420

CAP

BOOT - rubber, front wiper - included in cab before cab SN 52650

1шт.

32

D71421

TOOL

DRIVER - knurled, front wiper - included in cab before cab SN 52650

1шт.

33

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, , Front wiper - included in cab before cab S/N 52650 Ext Tooth, 5/16"

1шт.

34

D71422

NUT

- cap, front wiper - included in cab before cab SN 52650

1шт.

35

425-154

JAM NUT,Jam, 1/4"-28, G5

Front wiper - included in cab before cab S/N 52650 Jam, 1/4"-28, G5

1шт.

36

193-60

LOCK WASHER,Int Tooth, 1/4"

WASHER - flat, 1/4", plated, front wiper - included in cab before cab SN 52650

1шт.

37

D73642

PIN

- special, front wiper - included in cab before cab SN 52650

1шт.

38

F44456

SCREW,0.19" - 32 x 3 3/4"

- round head slotted, No. 10 - 32 NF x 3/8", plated, front wiper - included in cab before cab SN 52650

2шт.

39

N7016

ELECTRICAL WIRE

WIRE - jumper, if used, front wiper - included in cab before cab SN 52650

1шт.

L36262

KIT

- front wiper motor, optional, includes all Refs. on figure 228 as N8351 wiper motor, additional kit parts are identified on figure175, front wiper - included in cab before cab SN 52650

1шт.

Выбрано товаров: 44
