Запчасти Case W14 (222) - DEFROSTER FAN (04) - ELECTRICAL SYSTEMS

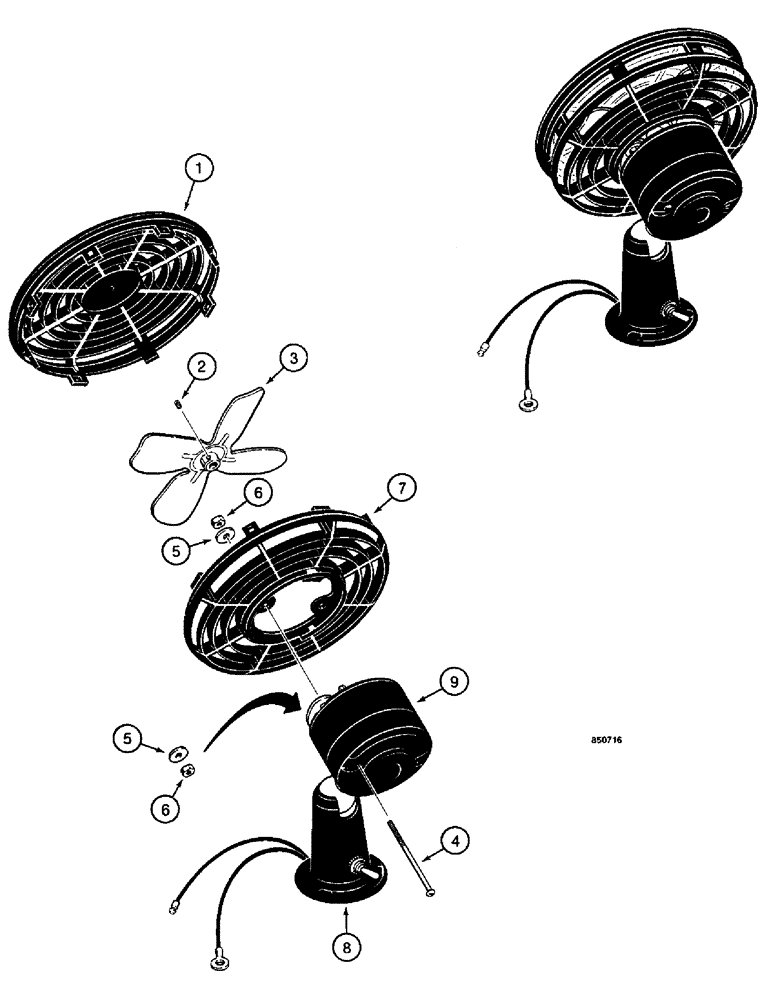

Схема запчастей Case W14 - (222) - DEFROSTER FAN (04) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

L116505

FAN

- defroster, Includes: Ref. 1 - 9

1шт.

1

N6272

GUARD

- front

1шт.

2

178-819

SET SCREW,Hex Soc, #10-32 x 3/16"

- hex socket headless, No. - 32 NF x 3/16", cup point

1шт.

3

N6273

FAN

BLADE - fan

1шт.

4

182-576

SCREW,Slotted Pan Hd, #10-32 x 3"

MACHINE SCREW - pan Phillips head, No. 10 - 32 NF x 3", plated

2шт.

5

195-513

WASHER,#10

- flat, No. 10, plated

4шт.

6

129-37

NUT,#10-32

4шт.

7

N6274

GUARD

- rear

1шт.

8

NSS

NOT SOLD SEPARAT

PEDESTAL - fan

1шт.

9

NSS

NOT SOLD SEPARAT

MOTOR - fan

1шт.

In the Artwork, the Fans are showing to have switches. This is incorrect. the switch is on the Accessory switch panel.

1шт.

Выбрано товаров: 11
