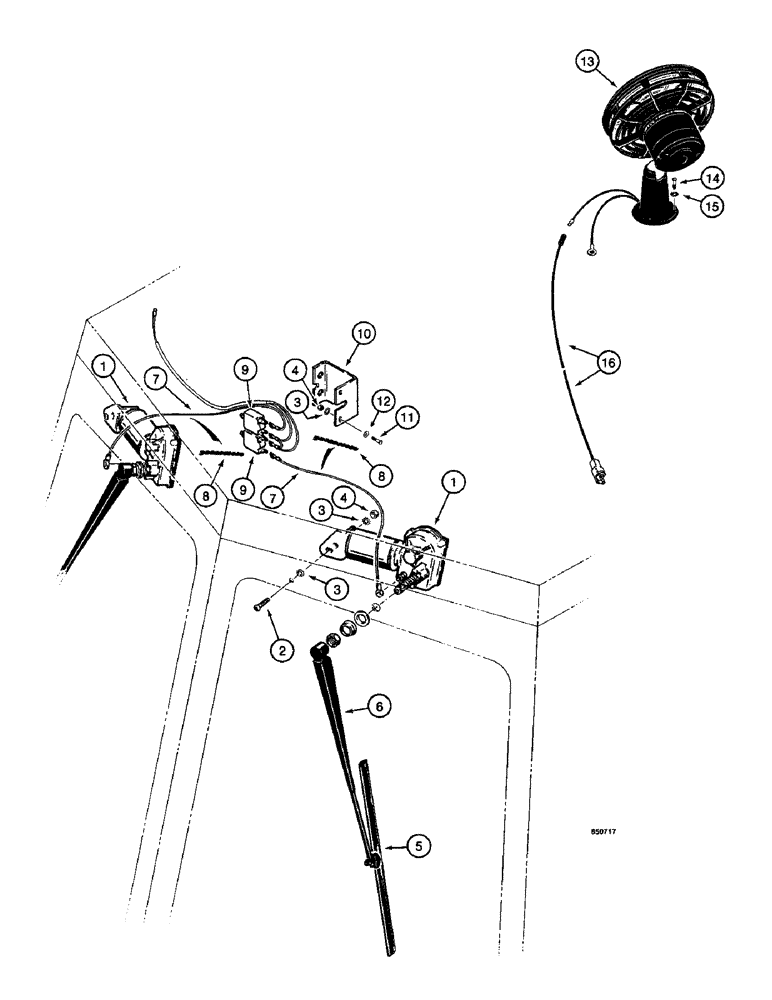

Запчасти Case W14 (220) - CAB REAR WIPERS AND DEFROSTER, USED ON PIN 9154965 AND AFTER, REAR WIPER- OPTIONAL (04) - ELECTRICAL SYSTEMS

1

L115054

WIPER MOTOR

MOTOR - wiper, rear

2шт.

2

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

- pan head, No. 10 - 24 NC x 1/2"

2шт.

3

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

6шт.

4

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 - 24 NC

4шт.

5

F43517

WIPER BLADE

BLADE - wiper, 12" (533 mm) long

2шт.

6

F43516

ARM

- wiper, 6" - 10" (152 - 254 mm) long, adjustable

2шт.

7

L11541

CABLE TIE,203.2mm L, Nylon

WIRE - circuit, Serial Range: breaker-wiper

2шт.

8

A176851

CONDUIT

- flex, wire

2шт.

9

L76726

BREAKER

CIRCUIT BREAKER - 3 amp

2шт.

10

L115450

BRACKET

- circuit breaker

1шт.

11

182-561

SCREW,Slotted Pan Hd, #10-24 x 3/4"

MACHINE SCREW - pan head slotted, No. 10 - 24 NC x 3/4", plated

2шт.

12

195-12

WASHER,#10

- flat, No. 10, plated

2шт.

13

L116505

FAN

- defroster, parts list figure 222, defroster mounting

1шт.

14

182-561

SCREW,Slotted Pan Hd, #10-24 x 3/4"

MACHINE SCREW - pan head slotted, No. 10 - 24 NC x 3/4", plated, defroster mounting

3шт.

15

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, , Defroster mounting Ext-Int Tooth, #10

3шт.

16

L115208

ELECTRICAL WIRE

WIRE - defroster mounting

1шт.
