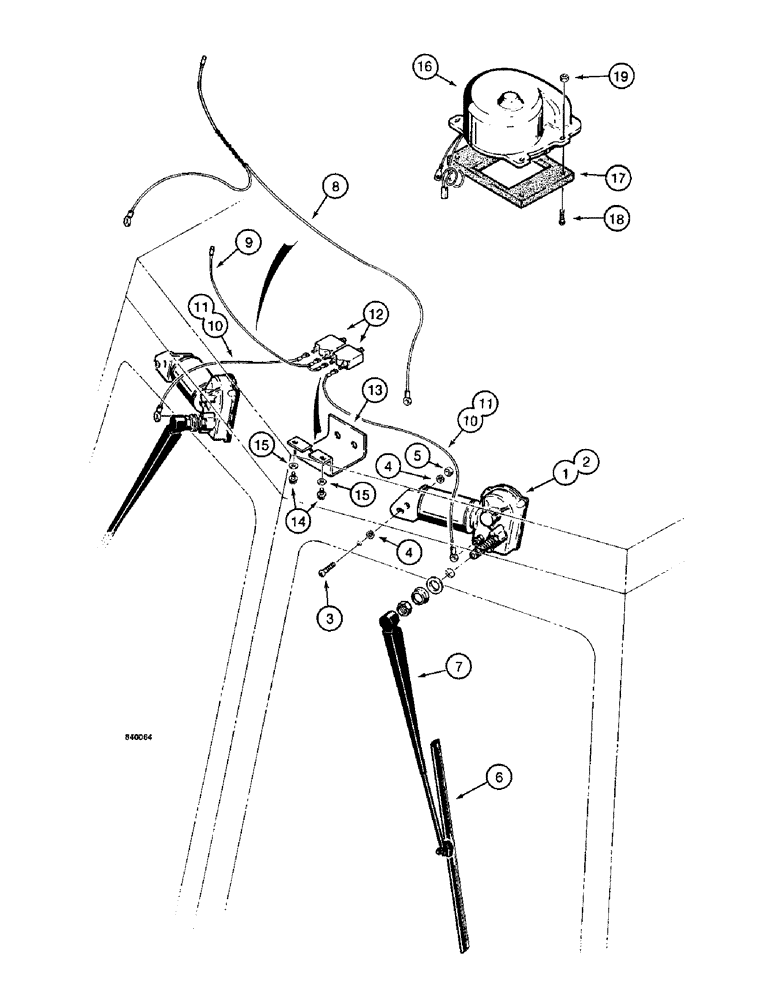

Запчасти Case W14 (218) - CAB REAR WIPERS AND DEFROSTER, USED BEFORE PIN 9154965, REAR WIPER- OPTIONAL (04) - ELECTRICAL SYSTEMS

1

F93633

MOTOR, ELECTRIC

MOTOR - wiper, rear, no longer used, order Refs. 2 and 11

2шт.

2

L115054

WIPER MOTOR

MOTOR - wiper, rear

2шт.

3

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

- pan head, No. 10 - 24 NC x 1/2"

2шт.

4

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

4шт.

5

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 - 24 NC

2шт.

6

F43517

WIPER BLADE

BLADE - wiper, 12" (533 mm) long

2шт.

7

F43516

ARM

- wiper, 6" - 10" (152 - 254 mm) long, adjustable

2шт.

8

F43518

HARNESS

WIRE - jumper, if used

1шт.

9

L77036

ELECTRICAL WIRE

WIRE - cab to circuit breaker

1шт.

10

L76821

ELECTRICAL WIRE

WIRE - jumper, used with stud type connector, used with F93633 motor

2шт.

11

L109884

ELECTRICAL WIRE

WIRE - jumper, used with spade type connector, used with L115054 motor, not shown

2шт.

12

L76726

BREAKER

CIRCUIT BREAKER - 3 amp

2шт.

13

L76818

BRACKET

- circuit breaker

1шт.

14

187-1054

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - hex slotted, No. 10 - 24 NC x 1/2", plated

2шт.

15

195-12

WASHER,#10

- flat, No. 10, plated

2шт.

16

F43618

DIFFUSER

DEFROSTER - cab, defroster mounting

1шт.

17

F43619

SEAL

- defroster mounting

1шт.

18

182-132

SCREW,Slotted Pan Hd, #10-24 x 1 1/2"

- No. 10 - 24 NC x 1-1/2", defroster mounting

4шт.

19

86625057

NUT,#10-24, GB

NUT, LOCK, , Defroster mounting #10-24, GB

4шт.
