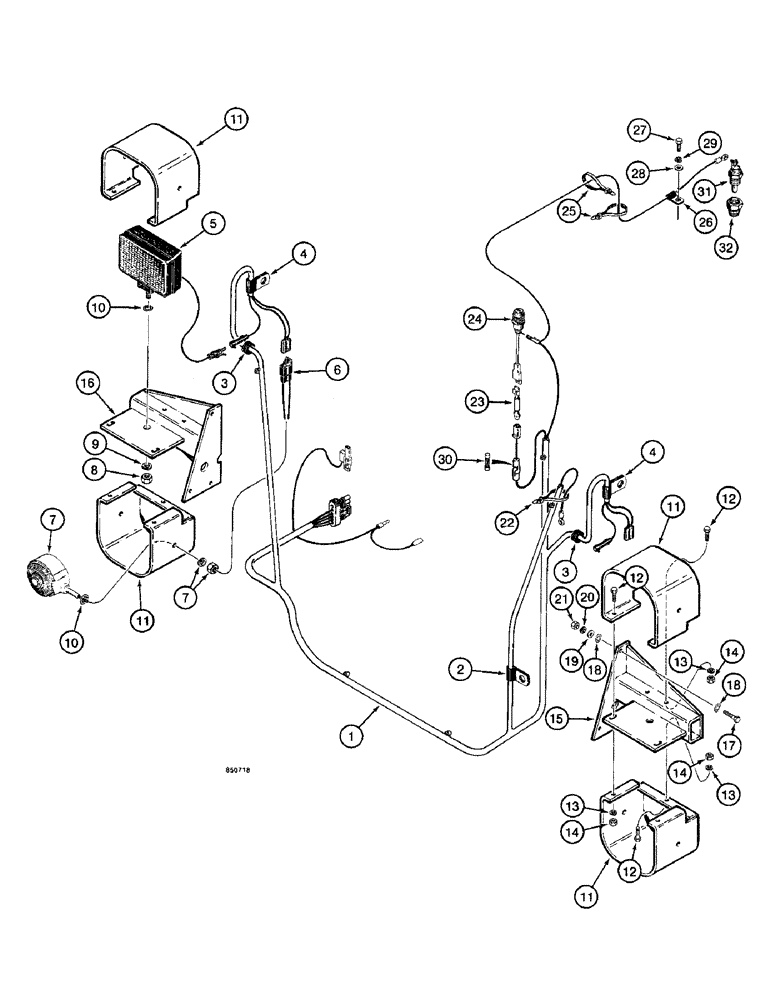

Запчасти Case W14 (216) - 35 AND 35A BACKHOE LAMP CIRCUIT, USED ON PIN 9154965 AND AFTER (04) - ELECTRICAL SYSTEMS

1

L114870

HARNESS

- backhoe

1шт.

2

49852

PTO SHAFT

- harness

1шт.

3

A37373

GROMMET - wire

2шт.

4

66297

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

- harness

2шт.

5

L113373

LIGHT ASSY.

LAMP - flood, backhoe, parts list figure 194

1-2шт.

6

223-173

CONNECTOR, ELEC

CONNECTOR - female

1-2шт.

7

L114617

LAMP

- stop and tail, parts list figure 196

1-2шт.

8

129-105

NUT,Hex, 1/2" - 13, Gr 5

1-2шт.

9

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1-2шт.

10

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

2-4шт.

11

L79048

GUARD

- lamp

4шт.

12

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

14

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

8шт.

15

L116392

BRACKET

MOUNT - lamp guard, right-hand

1шт.

16

L116391

BRACKET

MOUNT - lamp guard, left-hand

1шт.

17

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

6шт.

18

193-72

LOCK WASHER

- internal-external tooth lock, 3/8", plated

12шт.

19

195-104

WASHER,3/8"

- flat, , plated 3/8"

6шт.

20

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

21

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

6шт.

22

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

23

L58497

RESISTOR

- warning lamp

1шт.

24

H371849

INDICATOR

LAMP - warning

1шт.

25

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

26

51200330

CLAMP

- wire

1шт.

27

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

28

195-104

WASHER,3/8"

- flat, , plated 3/8"

1шт.

29

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

30

223-10

FUSE,10 Amp, Type 3AG

- 3AG, 10 amp

1шт.

31

L50238

SWITCH

SENDER - water temperature

1шт.

32

221-56

REDUCER - 1/2" x 3/8" NPT

1шт.
