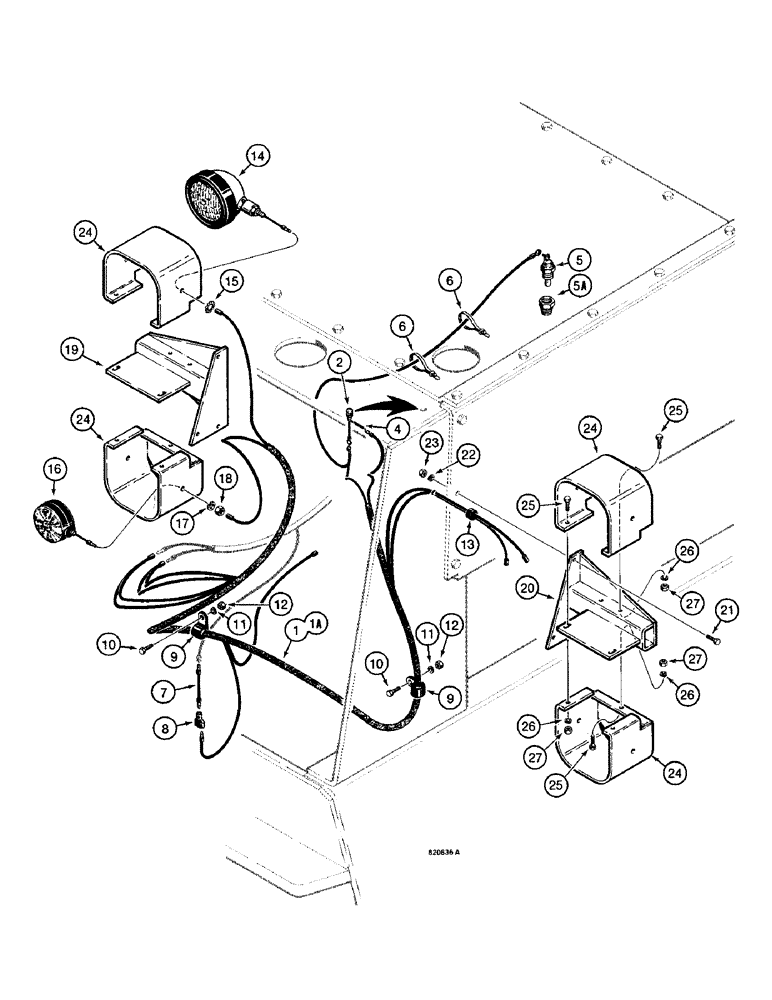

Запчасти Case W14 (214) - 35 AND 35A BACKHOE LAMP CIRCUIT, USED BEFORE PIN 9154965 (04) - ELECTRICAL SYSTEMS

1

L100752

HARNESS

- 35 backhoe

1шт.

Used with Warning Lamp, P/N L55349

1шт.

1a

L109564

HARNESS

- 35A backhoe

1шт.

Used with Warning Lamp, P/N H371849

1шт.

2

H371849

INDICATOR

LAMP - warning, used with L109564 harness

1шт.

Part of water temperature kit, P/N L36223

1шт.

3

L55349

LAMP

- warning, used with L100752 harness, not available, order L36223 kit, not shown

1шт.

4

L58497

RESISTOR

- warning lamp

1шт.

Part of water temperature kit, P/N L36223

1шт.

5

L50238

SWITCH

SENDER - water temperature

1шт.

5a

221-56

BUSHING - reducer, 1/2" - 3/8" NPT

1шт.

6

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

7

L55344

ELECTRICAL WIRE

WIRE - fuel pump, if used

1шт.

8

A8210

CONNECTOR, ELEC

CONNECTOR - 3 way

1шт.

9

49852

PTO SHAFT

- harness

2шт.

10

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

11

92-6

LOCK WASHER,3/8"

2шт.

12

25-106

NUT,3/8"-16, G5

- hex, 3/8"-16 NC

2шт.

13

A37373

GROMMET - wire

2шт.

14

L105756

HEADLIGHT

FLOOD LAMP - backhoe, parts list figure 190

1шт.

15

193-48

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

1шт.

16

L59897

LAMP

- stop and tail, parts list figure 192

1шт.

17

92-8

LOCK WASHER,1/2"

1шт.

18

25-118

NUT,1/2"-20, G5

- hex, 1/2"-13 NC

1шт.

19

L100398

MOUNTING PARTS

MOUNT - lamp guard, right-hand

1шт.

20

L100399

MOUNTING PARTS

MOUNT - lamp guard, left-hand

1шт.

21

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

6шт.

22

92-6

LOCK WASHER,3/8"

6шт.

23

25-106

NUT,3/8"-16, G5

- hex, 3/8"-16 NC

6шт.

24

L79048

GUARD

- lamp

4шт.

25

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

8шт.

26

92-6

LOCK WASHER,3/8"

8шт.

27

25-106

NUT,3/8"-16, G5

- hex, 3/8"-16 NC

8шт.

L36223

KIT

- water temperature warning for backhoe, Includes: Ref. 2 and 4, two 222-155 male connectors.

1шт.
