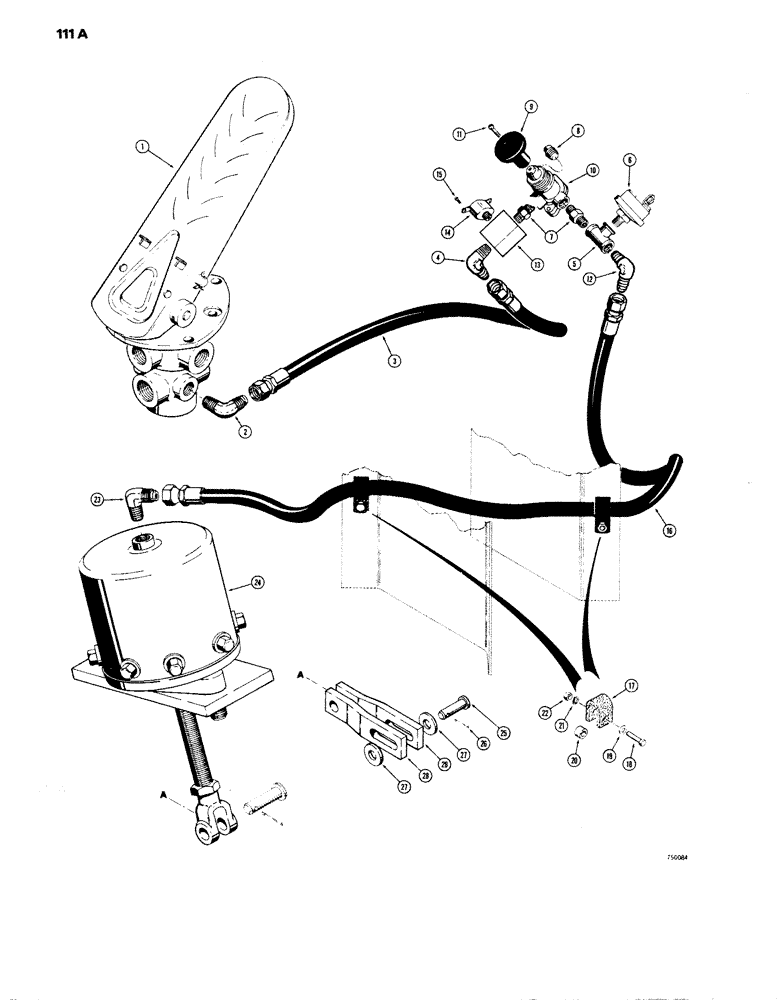

Запчасти Case W14 (111A) - BRAKE SYSTEM, EMERGENCY BRAKE VALVE TO SAFETY CHAMBER, MODELS W/ INSTRUMENT CLUSTER (07) - BRAKES
№
Артикул
Название
Примечание
Количество
1
L44173
VALVE
TREADLE ASSAEMBLY - brake, R.H. (Parts list Figure 128)
1шт.
2
218-491
ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/4" - 18 Male NPTF
- 90 degrees, male
1шт.
3
L48029
HOSE
- pressure gauge (40" long)
1шт.
4
218-481
ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF
- 40 degrees, male
1шт.
5
221-421
TEE,1/8" NPT
- pipe, () 1/8" NPT
1шт.
6
L57176
SENDER UNIT
SENDING UNIT - air pressure
1шт.
7
217-1071
HYD CONNECTOR,1/4" - 18NPTF x 1/8" - 27 NPTF
CONNECTOR - straight, male
2шт.
8
221-1
DRAIN PLUG,Sq Hd, 1/8"-27 NPTF
PLUG - pipe, square head (1/8" NPT)
1шт.
L52178
VALVE
ASSEMBLY - emergency brake, Includes: Ref. 9 - 11
1шт.
9
L35267
KNOB
- brake
1шт.
10
NSS
NOT SOLD SEPARAT
BODY - valve
1шт.
11
169-146
SCREW,Phil Fil Hd, #8 - 32 x 3/8"
RHMS - phillips, #8 - 32 NC x 3/8"
1шт.
12
218-481
ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF
- 90 degrees
1шт.
13
L13273
UNION TEE
TEE - special, emergency brake line
1шт.
14
L48480
SWITCH
- pressure
1шт.
15
173-73
SCREW,Sl Rnd Hd, #8 - 32 x 1/4"
- #8 - 32 NC x 1/4"
2шт.
16
L48120
HOSE
- safety chamber (82" long)
1шт.
17
L50641
CONNECTING STRIP
STRAP - hose mounting
4шт.
18
413-632
BOLT,Hex, 3/8" - 16 x 2", Gr 5
4шт.
19
95-6
WASHER,3/8"
- flat () 3/8"
6шт.
20
G50050
SPACER - hose strap
2шт.
21
92-6
LOCK WASHER,3/8"
4шт.
22
25-106
NUT,3/8"-16, G5
- hex. (3/8" - 16 NC)
2шт.
23
218-491
ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/4" - 18 Male NPTF
- 90 degrees, male
1шт.
24
L48127
CHAMBER
ASSEMBLY - safety (Parts list Figure 132)
1шт.
25
141-5
CLEVIS PIN,7/16" x 1.190"
PIN - clevis, 7/16" dia.
1шт.
26
132-26
COTTER PIN
Pin, Split (Cotter), 3/32" x 3/4"
1шт.
27
94-7
WASHER - standard wrot (7/16")
2шт.
28
L51415
PROTECTOR
- brake, 4-13/64" long (Use 2-L72258 links)
2шт.
28
L72258
DRAG LINK
LINK - brake, 3-29/32" long
2шт.
