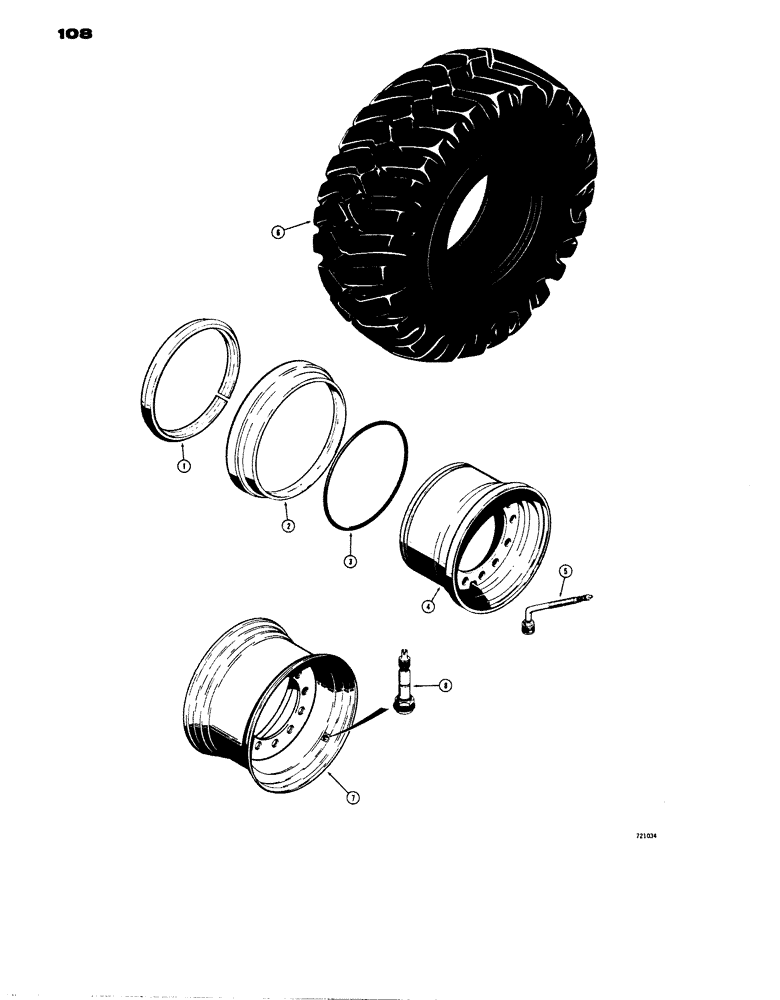

Запчасти Case W14 (108) - RIMS AND TIRES, USED ON MODELS WITH 13.00 X 24 AND, 14.00 X (06) - POWER TRAIN

1

A13098

RING

Lock

4шт.

2

A13097

RING

Side, rim

4шт.

3

A13099

O-RING,22 1" ID x 0.25"

Seal

4шт.

4

L50655

RIM

WHEEL Tire

4шт.

5

L48133

VALVE STEM

Tubeless tire, 45 degrees elbow ( Not shown)

4шт.

REF. 5 - THE SMALL END CAP COULD USE PART NUMBER L19664.

1шт.

6

REF

INSTRUCTION

TIRE - articulated loader, 13.00 x 24 - 10, 12 and 16 ply tires

4шт.

1

A19123

RING

Lock

4шт.

2

A19122

RING

Side, rim

4шт.

3

A19101

O-RING,6.6mm Thk x 590.55mm ID

Seal

4шт.

4

L50656

SPARE PART RIM - tire

4шт.

5

L11405

VALVE

Tubeless tire, 90 degrees elbow

4шт.

6

REF

INSTRUCTION

TIRE - articulated loader, 15.50 x 25 -10, 12 and 16 ply tires

4шт.

6

REF

INSTRUCTION

TIRE - ARTICULAYTED LOADER (16.9 x 24 - 8 ply)

4шт.

7

L53435

WHEEL

RIM AND DISC - one piece, used on models with 16.9 x 24 - 8 ply tires

4шт.

8

A20058

VALVE STEM

Tire, tubeless, used on models with 16.9 x 24 - 8 ply tires

4шт.

6

REF

INSTRUCTION

TIRE AND TUBE - 14.4 x 26, used on models with 18.4 x 26 tires

4шт.

7

L59726

WHEEL

RIM - tire, used on models with 18.4 x 26 tires

4шт.

8

221-530

CAP,2" NPT

Inner tube, used on models with 18.4 x 26 tires

4шт.
