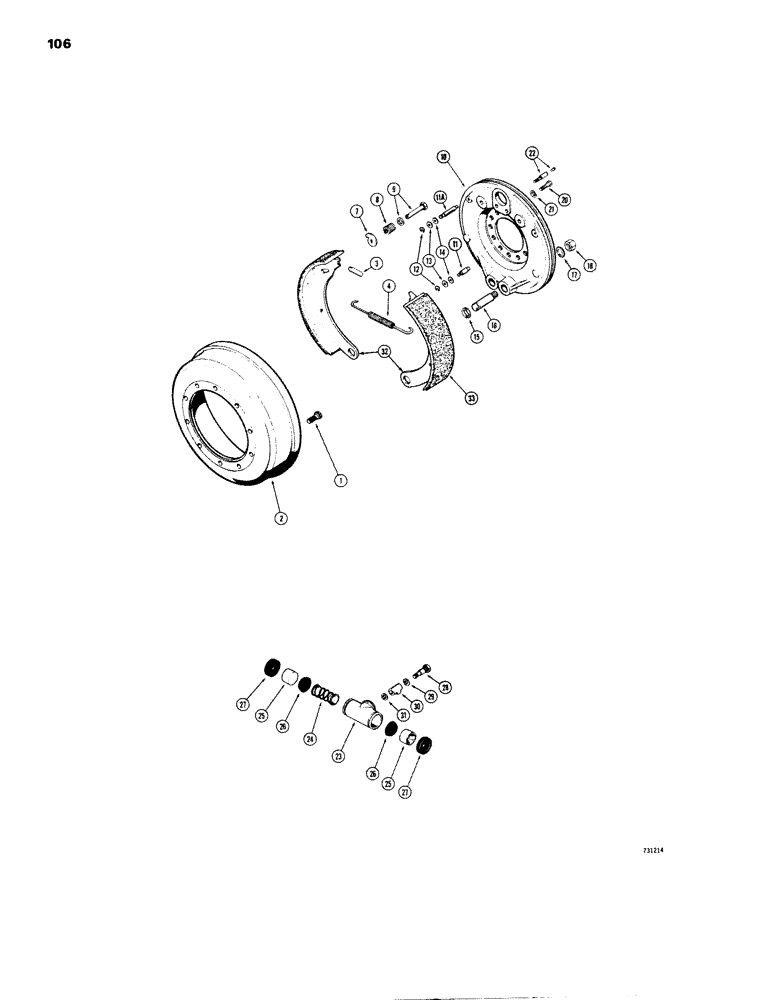

Запчасти Case W14 (106) - FRONT AND REAR AXLE BRAKES (06) - POWER TRAIN

REF

INSTRUCTION

AXLE ASSEMBLY - see Figure 092 for proper axle, Includes: Ref. 1 - 33

1шт.

1

A14962

BOLT,5/8" x 1 1/2", Gr 8

CAP SCREW - special

20шт.

1a

391-636

ELECTRICAL WIRE

WIRE LOCK - No. 16 x 50", not shown

1шт.

2

L35225

DRUM

Brake

2шт.

D73631

BRAKE

ASSEMBLY - axle (replaces D73632), Includes: Ref. 3 - 31

2шт.

3

A12983

ROD

Push, brake cylinder

2шт.

4

L35486

SPRING

Shoe return

1шт.

5

RESERVED

1шт.

6

RESERVED

1шт.

L35952

PLATE ASSY.

BACKING - brake, Includes: Ref. 7 - 11A

1шт.

7

A13201

SHOE

CAM - brake adjusting

2шт.

8

A13023

SPRING

Adjusting cam

2шт.

9

A12997

CAPTIVE WASHER SCREW

AND WASHER - adjusting cam

2шт.

10

NSS

NOT SOLD SEPARAT

PLATE - backing

1шт.

11

A18271

PIN,11.11mm OD x 33.34mm L

Shoe guide, short

2шт.

11a

A18272

GUIDE PIN

Shoe guide, long

2шт.

12

A13127

WASHER

RETAINER - guide pin

4шт.

13

A13128

WASHER

Spring, guide pin

1шт.

14

A13129

WASHER

Plain, guide pin

1шт.

15

A13126

RING, SNAP,22.23mm ID x 33.34mm OD x 2.278mm Thk

RING SNAP Retaining, anchor pin (replaces A13136 )

2шт.

16

A13024

PIN,29.39mm OD x 68.25mm L

Anchor, brake

2шт.

17

193-50

LOCK WASHER,Ext-Int Tooth, 5/8"

2шт.

18

A13134

NUT

Hex, special

2шт.

19

RESERVED

1шт.

20

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

21

92-6

LOCK WASHER,3/8"

2шт.

L33875

CYLINDER

ASSEMBLY - brake, Includes: Ref. 22 - 31

1шт.

22

A12924

SCREW,7/16" - 20

Bleeder, brake

1шт.

A12985

CYLINDER

ASSEMBLY - brake, Includes: Ref. 23 - 29

1шт.

23

NSS

NOT SOLD SEPARAT

BODY - brake cylinder

1шт.

24

A13043

SPRING

Piston return

1шт.

25

A13044

PISTON ASSY.

Cylinder

2шт.

A12865

KIT

Repair, Includes: Ref. 26 and 27

1шт.

26

NSS

NOT SOLD SEPARAT

CUP - piston

2шт.

27

NSS

NOT SOLD SEPARAT

BOOT - cylinder

2шт.

28

A12926

BOLT

, Serial Range: Fitting-cylinder

1шт.

29

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

GASKET -, Serial Range: bolt-fitting

1шт.

30

A12925

FITTING

Swivel, inlet

1шт.

31

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

Swivel, Serial Range: fitting-cylinder

1шт.

D72855

SHOE

AND LINING - brake, upper and lower, consists of one shoe and one lining, Includes: Ref. 32 and 33

2шт.

32

NSS

NOT SOLD SEPARAT

SHOE - brake

1шт.

33

NSS

NOT SOLD SEPARAT

LINING - brake

1шт.

The A19896 lining kit is available to replace linings on 4 shoes, lining requirement for one complete axle.

1шт.
