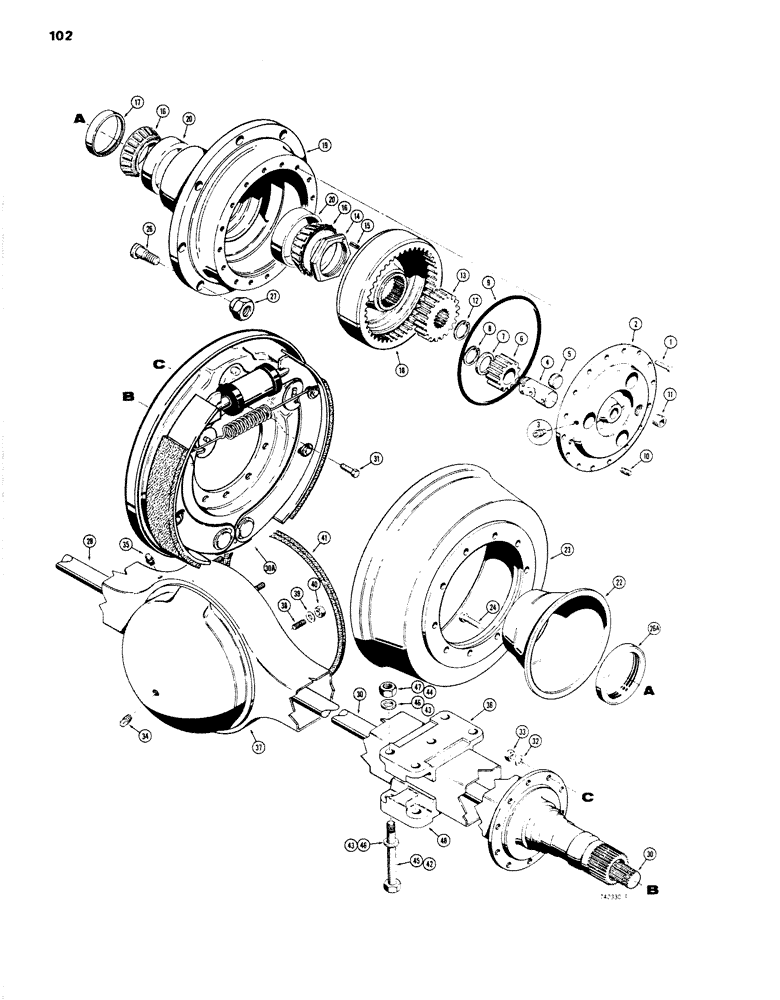

Запчасти Case W14 (102) - AXLE HOUSING AND PLANETARY (06) - POWER TRAIN

REF

INSTRUCTION

AXLE ASSEMBLY - rear (See Figure 093A for proper axle), Includes: Ref. 1 - 26

1шт.

1

A18221

BOLT,M10 x 1.25 x 50mm, Cl 8.8

Special

32шт.

L35235

PINION

SPIDER AND COVER ASSEMBLY - planetary, Includes: Ref. 2 - 5

2шт.

L35236

U-JOINT SPIDER

ASSEMBLY - planetary, Includes: Ref. 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

SPIDER - planetary

1шт.

3

178-256

SET SCREW,Hex Soc, 3/8"-16 x 5/8"

3шт.

4

A18246

SHAFT

Pinion

3шт.

5

A18247

PIN

BUTTON - thrust

1шт.

6

L35237

GEAR

PINION

3шт.

7

N7104

WASHER, THRUST

(Replaces A18236 )

3шт.

8

A18242

RING

Snap

3шт.

9

A18218

O-RING,10.125" ID x 10.312" OD x 0.103"

Seal

2шт.

10

221-3

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

2шт.

11

221-25

PLUG,Sq Soc, 3/4"-14 NPTF

Fill

2шт.

12

A18241

RING

Snap

2шт.

13

L35232

GEAR

Sun

2шт.

N7105

LOCK NUT

ASSEMBLY, bearing (replaces L35228 ), Includes: Ref. 14 and 15

2шт.

14

NSS

NOT SOLD SEPARAT

NUT - lock

1шт.

15

138-2018

PIN,1/4" x 7/8", Coiled

(Replaces 138-132)

1шт.

16

L35221

ROLLER BEARING,85mm ID x 30mm W

Bearing roller

4шт.

17

L35220

SLEEVE

Oil seal

2шт.

18

L35230

GEAR

Ring, pinion

2шт.

NSS

NOT SOLD SEPARAT

HUB AND DRUM ASSEMBLY, Includes: Ref. 19 - 26

2шт.

L35223

HUB CAP

AND CUP ASSEMBLY, Includes: Ref. 19 and 20

1шт.

19

NSS

NOT SOLD SEPARAT

HUB - wheel

1шт.

20

A63171

BEARING CUP,85 mm ID x 130 mm OD x 30.2 mm

Roller

2шт.

21

RESERVED

1шт.

22

L35224

SLINGER

Oil

1шт.

23

L35225

DRUM

Brake

1шт.

24

26-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

10шт.

25

RESERVED

1шт.

26

A13112

STUD

STUD - wheel

8шт.

26a

L35226

OIL SEAL

Oil, hub

2шт.

27

A12522

WHEEL NUT

Hex. special (Not included in axle assembly)

32шт.

28

L35231

SHAFT

Axle, LH (37.19" long)

1шт.

29

RESERVED

1шт.

30

L35234

SHAFT

Axle, RH (39.56" long)

1шт.

30a

REF

INSTRUCTION

BRAKE ASSEMBLY - parts list Figure 106

2шт.

31

26-926

BOLT,Hex, 9/16" - 12 x 1-5/8", Gr 8

HHCS - 9/16" - 12 NC x 1-5/8"

20шт.

32

35233

PLATE

SPARE PART WASHER - special

20шт.

33

A15033

LOCK NUT

Hex, lock (Used in L50107 and L51018 Axle Assemblies)

20шт.

33

131-1235

NUT,9/16"-18, GC

Used in L57779 and L57780 Axle Assemblies

20шт.

34

221-25

PLUG,Sq Soc, 3/4"-14 NPTF

2шт.

35

A12928

BREATHER

Oil

1шт.

36

L30662

LARGE PLATE

PLATE, LARGE Axle mounting

2шт.

37

L35219

SPARE PART Axle, Includes: Ref. 38

1шт.

38

A18207

STUD

Special

10шт.

39

D47367

WASHER

Special

10шт.

40

129-530

NUT,7/16"-20, G8

Hex (7/16"-14 NC)

10шт.

41

L35977

GASKET

Axle housing (Use M20704 silastic material)

1шт.

41

M20704

ADHESIVE

Silastic (Tube)

1шт.

42

116-707

BOLT

3/4"-16 NF x 9" (Front axle)

8шт.

43

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

Special

16шт.

44

131-1251

LOCK NUT,3/4"-16, GC

8шт.

45

116-703

BOLT,Hex, 3/4" - 16 x 9-1/2", Gr 8

(Rear Axle)

8шт.

46

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

Special

16шт.

47

131-1251

LOCK NUT,3/4"-16, GC

8шт.

48

L30662

LARGE PLATE

PLATE, LARGE Axle mounting

2шт.
