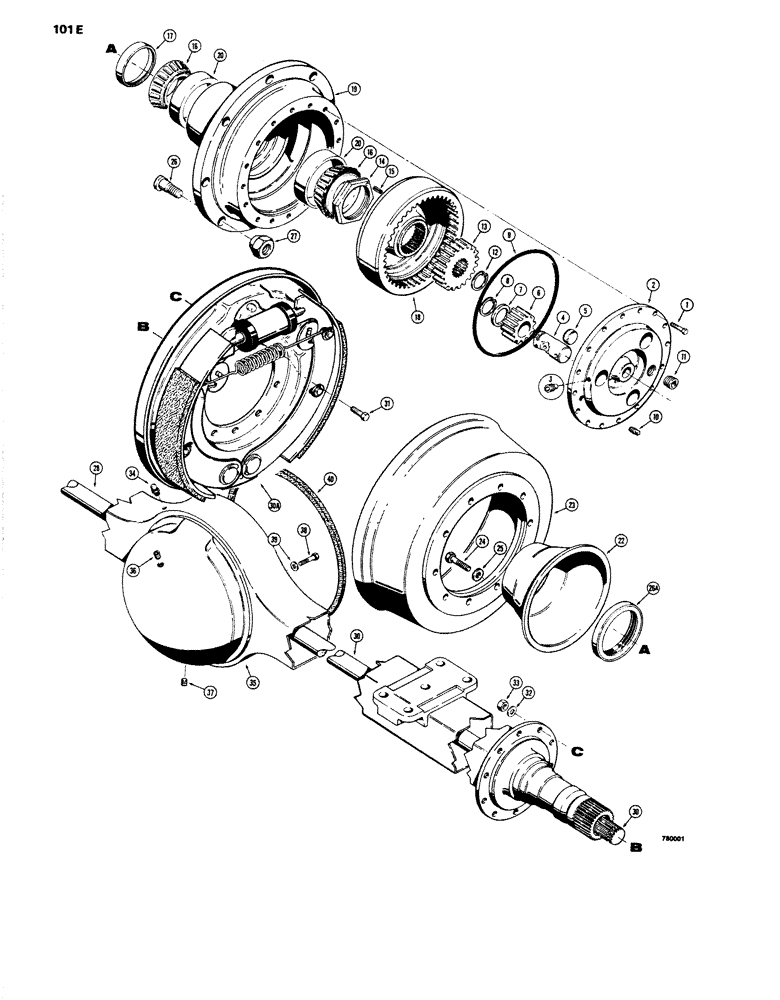

Запчасти Case W14 (101E) - AXLE HOUSING AND PLANETARY, L77964 AND L77965 (06) - POWER TRAIN

REF

INSTRUCTION

AXLE ASSEMBLY - rear and front, Includes: Ref. 1 - 40

1шт.

1

26-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 8

(Replaces A18218 )

32шт.

L35235

PINION

SPIDER AND COVER ASSEMBLY - planetary, Includes: Ref. 2 - 8 SPIDER ASSEMBLY - planetary, Includes: Ref. 2 - 5

2шт.

2

NSS

NOT SOLD SEPARAT

SPIDER - planetary

1шт.

3

178-256

SET SCREW,Hex Soc, 3/8"-16 x 5/8"

3шт.

4

A18246

SHAFT

Pinion

3шт.

5

A18247

PIN

BUTTON - thrust

1шт.

6

L35237

GEAR

PINION

3шт.

7

N7104

WASHER, THRUST

(Replaces A18236 )

3шт.

8

A18242

RING

Snap

3шт.

9

A18218

O-RING,10.125" ID x 10.312" OD x 0.103"

Seal

2шт.

10

221-3

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

2шт.

11

221-25

PLUG,Sq Soc, 3/4"-14 NPTF

2шт.

12

A18241

RING

Snap

2шт.

13

L35232

GEAR

Sun

2шт.

N7105

LOCK NUT

ASSEMBLY, bearing (replaces L35228 ), Includes: Ref. 14 and 15

2шт.

14

NSS

NOT SOLD SEPARAT

NUT - lock

1шт.

15

138-2018

PIN,1/4" x 7/8", Coiled

(Replaces 138-132)

1шт.

16

L35221

ROLLER BEARING,85mm ID x 30mm W

Bearing, roller

4шт.

17

L35220

SLEEVE

Oil seal

2шт.

18

L35230

GEAR

Ring, pinion

2шт.

L35223

HUB CAP

AND CUP ASSEMBLY, Includes: Ref. 19 and 20

2шт.

19

NSS

NOT SOLD SEPARAT

HUB - wheel

1шт.

20

A63171

BEARING CUP,85 mm ID x 130 mm OD x 30.2 mm

Roller

2шт.

21

RESERVED

1шт.

22

L35224

SLINGER

Oil

2шт.

23

L35225

DRUM

Brake

2шт.

24

26-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

20шт.

25

L30737

WASHER

Special

20шт.

26

A13112

STUD

STUD - wheel

16шт.

26a

L35226

OIL SEAL

Oil, hub

2шт.

27

A12522

WHEEL NUT

Hex, special, not included in axle assembly

32шт.

28

L35231

SHAFT

Axle, LH, 37.19" long (945 mm)

1шт.

29

RESERVED

1шт.

30

L35234

SHAFT

Axle, RH, 39.56" long (1005 mm)

1шт.

30a

REF

INSTRUCTION

BRAKE ASSEMBLY - parts list Figure 128

2шт.

31

26-926

BOLT,Hex, 9/16" - 12 x 1-5/8", Gr 8

HHCS - 9/16" - 12 NC x 1-5/8"

20шт.

32

L35233

WASHER

Special

20шт.

33

131-1235

NUT,9/16"-18, GC

20шт.

34

A12928

BREATHER

VALVE - inlet and outlet

1шт.

35

D78391

HOUSING

Axle, Includes: Ref. 36 and 37

1шт.

36

221-25

PLUG,Sq Soc, 3/4"-14 NPTF

1шт.

37

221-678

DRAIN PLUG,Sq Soc, 3/4" NPT

Magnetic

1шт.

38

26-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

12шт.

38

26-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 8

12шт.

38

26-740

BOLT,Hex, 7/16" - 14 x 2-1/2", Gr 8

2шт.

39

D47366

WASHER

Hardened

12шт.

40

M20704

ADHESIVE

Tube, 3 oz. (3206 ml)

1шт.
