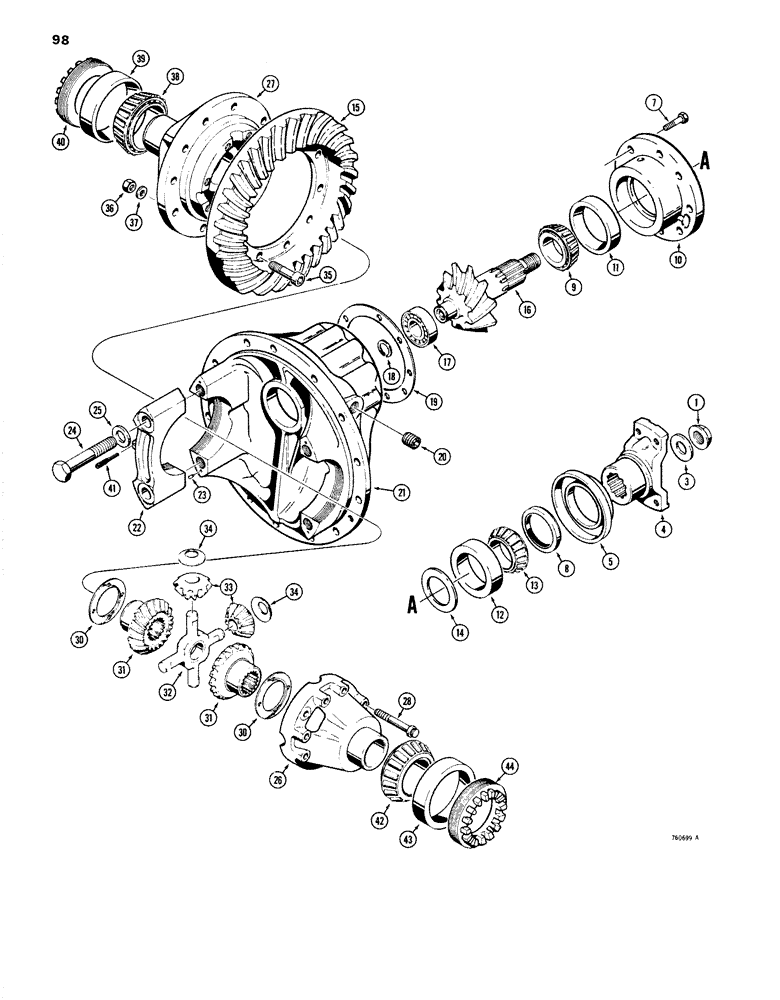

Запчасти Case W14 (098) - *L73964, L73965, L77964 AND L77965 AXLES (06) - POWER TRAIN

D77574

DIFFERENTIAL

ASSEMBLY - L76805 front axle and L77965 rear axle, Includes: Ref. 1 - 25

1шт.

D77578

DIFFERENTIAL

ASSEMBLY - L76804 rear axle and L77964 front axle, Includes: Ref. 1 - 25

1шт.

1

L35091

NUT

Yoke to pinion shaft

1шт.

2

RESERVED

1шт.

3

A13124

WASHER

Special

1шт.

D73687

YOKE

UNIVERSAL JOINT YOKE ASSEMBLY - drive shaft, Front Axle, Includes: Ref. 4 and 5

1шт.

D73690

YOKE

UNIVERSAL JOINT YOKE ASSEMBLY - drive shaft, Rear Axle, Includes: Ref. 4 and 5

1шт.

4

NSS

NOT SOLD SEPARAT

YOKE - drive shaft

1шт.

5

D73691

COVER

SLINGER - oil, Front and Rear Axle

1шт.

6

RESERVED

1шт.

7

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

8шт.

8

D73689

OIL SEAL

Oil

1шт.

9

R10276

ROLLER BEARING,1.686" ID x 1.1669"

CONE, inner

1шт.

D73688

BEARING, ROLLER, CYL

CAGE ASSEMBLY - pinion shaft bearing, Includes: Ref. 10 and 11

1шт.

10

NSS

NOT SOLD SEPARAT

CAGE - bearing

1шт.

11

R10277

BEARING CUP,3.5" OD x 0.9063"

Bearing

1шт.

12

A13161

BEARING CUP,88.5mm OD x 17.46mm W

Bearing, tapered roller type

1шт.

13

A13160

ROLLER BEARING,1.4375" ID x 0.933"

CONE, tapered roller type

1шт.

14

D74357

SHIM,.153" Thk

Spacer - bearing (3.886 mm)

1шт.

14

D74358

SHIM,.154" Thk

Spacer - bearing (3.912 mm)

1шт.

14

D74359

SHIM,.155" Thk

Spacer - bearing (3.937 mm)

1шт.

14

D74360

SHIM,.156" Thk

Spacer - bearing (3.962 mm)

1шт.

14

D74361

SHIM,.157" Thk

Spacer - bearing (3.987 mm)

1шт.

14

D74362

SHIM,.158" Thk

Spacer - bearing (4.013 mm)

1шт.

14

D74363

SHIM,.164" Thk

Spacer - bearing (4.166 mm)

1шт.

14

D74364

TUBE SPACER

Bearing, .170" thick (4.3180 mm)

1шт.

14

D74365

SPACER

Bearing, .176" thick (4.4704 mm)

1шт.

14

D74366

SPACER

Bearing, .182" thick (4.6228 mm)

1шт.

REF

INSTRUCTION

GEAR SET - ring and pinion, matched, use A18200 kit, Includes: Ref. 15 and 16

1шт.

15

NSS

NOT SOLD SEPARAT

GEAR - ring

1шт.

16

NSS

NOT SOLD SEPARAT

GEAR - pinion

1шт.

17

A18182

BALL BEARING,27.75mm ID x 62mm OD x 18mm W

Inner, drive pinion, ball type

1шт.

18

A18199

SNAP RING,#106, Ext

Bearing

1шт.

19

L36104

SHIM

.003" (0.0762 mm)

1шт.

19

L36105

SHIM

.005" (0.1270 mm)

1шт.

19

L36106

DISC

SHIM - 010" (0.2540 mm)

1шт.

20

221-25

PLUG,Sq Soc, 3/4"-14 NPTF

1шт.

L35925

CARRIER

AND CAP - D73685 and D73686 differential, Includes: Ref. 21 - 25

1шт.

D73630

SUPPORT

CARRIER AND CAP - D77574 and D77578 differential, Includes: Ref. 21 - 25

1шт.

21

NSS

NOT SOLD SEPARAT

CARRIER - differential

1шт.

22

NSS

NOT SOLD SEPARAT

CAP - differential bearing

2шт.

23

A15443

DOWEL

Cap, if used

4шт.

24

26-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 8

4шт.

25

L30737

WASHER

Special

4шт.

A18200

GEAR

KIT - gear and pinion; Includes: Refs. 1, 15, 16, 18, 35, 36 and 37

1шт.
