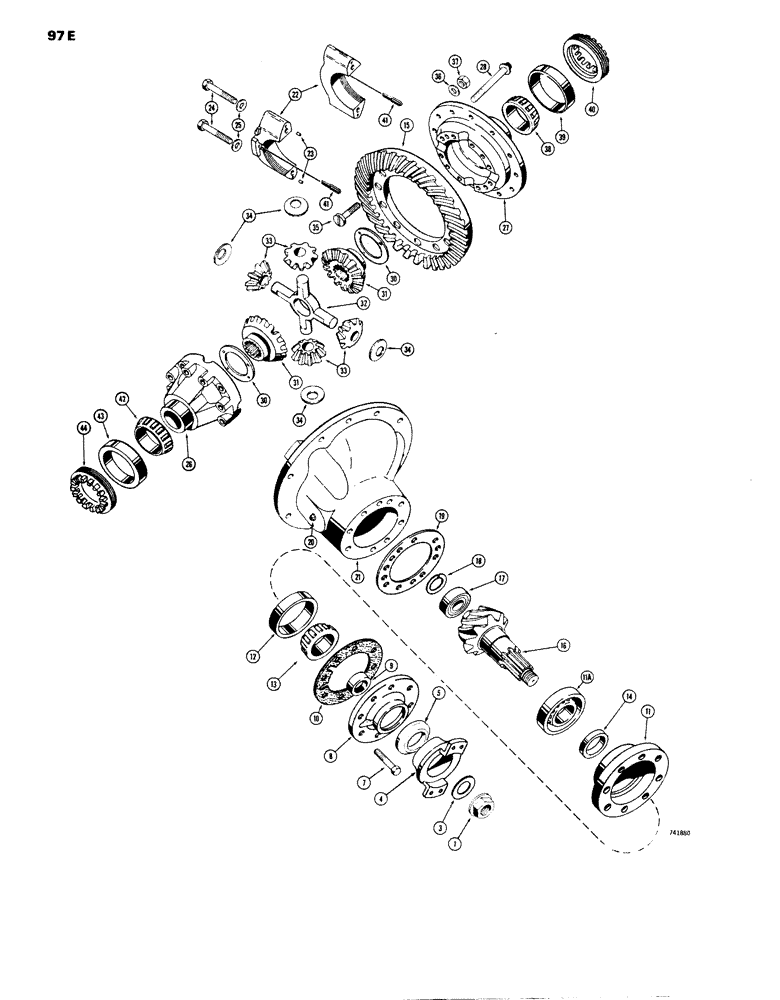

Запчасти Case W14 (097E) - L72033 AND *L72034 AXLE DIFFERENTIAL (06) - POWER TRAIN

D72769

CARRIER

DIFFERENTIAL ASSEMBLY - L72034 front axle, Includes: Ref. 1 - 14

1шт.

D72768

CARRIER

DIFFERENTIAL ASSEMBLY - L72033 rear axle, Includes: Ref. 1 - 14

1шт.

1

L36091

SHAFT

NUT - yoke to pinion shaft

1шт.

2

RESERVED

1шт.

3

A13124

WASHER

Special

1шт.

L35013

YOKE

SPARE PART ASSEMBLY - front axle, Includes: Ref. 4 and 5

1шт.

L35218

YOKE ASSEMBLY - rear axle, Includes: Ref. 4 and 5

1шт.

4

NSS

NOT SOLD SEPARAT

YOKE - drive shaft

1шт.

5

A18189

SLINGER

Oil

1шт.

6

RESERVED

1шт.

7

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

8шт.

L35933

COVER ASSY

Pinion shaft, Includes: Ref. 8 - 14

1шт.

8

NSS

NOT SOLD SEPARAT

COVER - opion shaft

1шт.

9

A18185

OIL SEAL

Oil

1шт.

10

L33674

GASKET

, Serial Range: Cover-cage

1шт.

REF

INSTRUCTION

CAGE ASSEMBLY - Ref. 11A O D is 3-7/8" (94 mm), Includes: Ref. 11, 11A and 12

1шт.

D72826

CAGE ASSY.

BEARING (replaces L72826), Includes: Ref. 11 and 11A

1шт.

11

NSS

NOT SOLD SEPARAT

CAGE - bearing

1шт.

11a

D72766

BEARING

Inner

1шт.

12

A13161

BEARING CUP,88.5mm OD x 17.46mm W

Bearing, tapered roller type

1шт.

13

A13160

ROLLER BEARING,1.4375" ID x 0.933"

CONE, tapered roller type

1шт.

14

A18358

SPACER

Bearing, .172" thick

1шт.

14

A18359

SPACER

Bearing, .173" thick

1шт.

14

A18360

SPACER

Bearing, .174" thick

1шт.

14

A18361

SPACER

Bearing, .175" thick

1шт.

14

A18362

RING

SPACER - bearing, .176" thick

1шт.

14

A18363

SPACER

Bearing, .177" thick

1шт.

14

A18364

SPACER

Bearing, .183" thick

1шт.

14

A18365

SPACER

Bearing, .189" thick

1шт.

14

A18366

SPACER

Bearing, .195" thick

1шт.

14

A18367

SPACER

Bearing, .201" thick

1шт.

D75486

CAGE

SPARE PART ASSEMBLY - Ref. 11AO. D. IS 3-1/2" (89 mm), Includes: Ref. 11 - 25

1шт.

11

NSS

NOT SOLD SEPARAT

CAGE - bearing

1шт.

11a

REF

INSTRUCTION

BEARING ASSEMBLY

1шт.

R10276

ROLLER BEARING,1.686" ID x 1.1669"

CONE

1шт.

R10277

BEARING CUP,3.5" OD x 0.9063"

CAP - bearing

1шт.

12

A13161

BEARING CUP,88.5mm OD x 17.46mm W

Bearing, tapered roller

1шт.

13

A13160

ROLLER BEARING,1.4375" ID x 0.933"

CONE, tapered roller

1шт.

14

D74357

SHIM,.153" Thk

Spacer - bearing (3.886 mm)

1шт.

14

D74358

SHIM,.154" Thk

Spacer - bearing (3.912 mm)

1шт.

14

D74359

SHIM,.155" Thk

Spacer - bearing (3.937 mm)

1шт.

14

D74360

SHIM,.156" Thk

Spacer - bearing (3.962 mm)

1шт.

14

D74361

SHIM,.157" Thk

Spacer - bearing (3.987 mm)

1шт.

14

D74362

SHIM,.158" Thk

Spacer - bearing (4.013 mm)

1шт.

14

D74363

SHIM,.164" Thk

Spacer - bearing (4.166 mm)

1шт.

14

D74364

TUBE SPACER

.170" thick (4.318 mm)

1шт.

14

D74365

SPACER

.176" thick (4.470 mm)

1шт.

14

D74366

SPACER

.182" thick (4.623 mm)

1шт.

REF

INSTRUCTION

GEAR SET - ring and pinion, matches, use A18200 kit, Includes: Ref. 15 and 16

1шт.

15

NSS

NOT SOLD SEPARAT

GEAR - ring

1шт.

16

NSS

NOT SOLD SEPARAT

GEAR - pinion

1шт.

17

A18182

BALL BEARING,27.75mm ID x 62mm OD x 18mm W

Inner, drive pinion, ball type

1шт.

18

A18199

SNAP RING,#106, Ext

Bearing

1шт.

19

L36104

SHIM

.003"

1шт.

19

L36105

SHIM

.005"

1шт.

19

L36106

DISC

SHIM - .010"

1шт.

20

221-835

PLUG

Pipe, sq. head, 3/4" NPT

1шт.

L35925

CARRIER

AND CAP ASSEMBLY - differential

1шт.

21

NSS

NOT SOLD SEPARAT

CARRIER - differential

1шт.

22

NSS

NOT SOLD SEPARAT

CAP - differential bearing

2шт.

23

A15443

DOWEL

Cap, if used

4шт.

24

26-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 8

4шт.

25

L30737

WASHER

Special

4шт.

L34022

TRANSMISSION

DIFFERENTIAL CASE AND GEAR ASSEMBLY, Includes: Ref. 26 - 34

1шт.

26

NSS

NOT SOLD SEPARAT

CASE - plain half

1шт.

27

NSS

NOT SOLD SEPARAT

CASE - flange half

1шт.

28

L30668

SCREW

BOLT - special

8шт.

29

RESERVED

1шт.

30

F9740

WASHER,60.68mm ID x 90.42mm OD x 1.58mm Thk

Thrust, side gear

2шт.

31

D66304

GEAR

Differential, side

2шт.

32

A18181

U-JOINT SPIDER

Differential

1шт.

33

A18175

PINION

GEAR - differential, pinion

4шт.

34

A18176

DISC

WASHER - thrust

4шт.

NSS

NOT SOLD SEPARAT

RIVET - not shown, use Refs. 35, 36 and 37

12шт.

35

L35919

BOLT

Special, ring, Serial Range: gear-differential

12шт.

36

D47366

WASHER

Special

12шт.

37

131-1138

LOCK NUT,1/2"-13, GC

12шт.

38

A18173

ROLLER BEARING

CONE, tapered roller type

1шт.

40

A18194

RING

Bearing adjustment

1шт.

41

A18196

HARDWARE

PIN - special

2шт.

42

A26847

ROLLER BEARING,2.5" ID x 0.866"

CONE, tapered roller type

1шт.

43

A26744

BEARING CUP,110.025 mm OD x 18.875 mm

CUP, differential

1шт.

44

A18194

RING

Bearing adjustment

1шт.

A18200

GEAR

KIT - gear and pinion: Includes: Refs. 1, 15, 16, 18, 35, 36 and 37

1шт.
