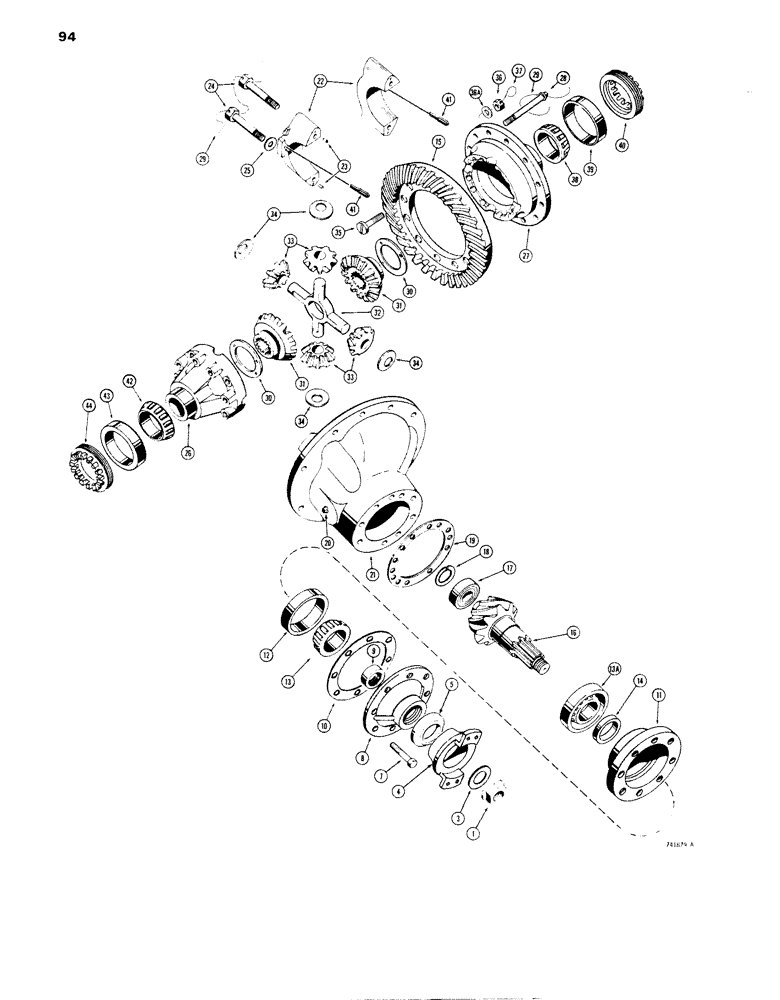

Запчасти Case W14 (094) - L50107 AND L51018 AXLE DIFFERENTIAL (06) - POWER TRAIN

L35238

DIFFERENTIAL ASSY

ASSEMBLY - L51018 front axle, order L35932 Differential Assembly for service, parts list Figure 097A, Includes: Ref. 1 - 34

1шт.

L35216

SPARE PART ASSEMBLY - L50107 rear axle, order L35926 Differential Assembly for service, parts list Figure 101A, Includes: Ref. 1 - 34

1шт.

1

L35091

NUT

Yoke to pinion shaft

1шт.

2

RESERVED

1шт.

3

A13124

WASHER

Special

1шт.

L35013

YOKE

SPARE PART ASSEMBLY - front axle, Includes: Ref. 4 and 5

1шт.

L35218

YOKE ASSEMBLY - rear axle, Includes: Ref. 4 and 5

1шт.

4

NSS

NOT SOLD SEPARAT

YOKE - drive shaft

1шт.

5

A18189

SLINGER

Oil

1шт.

6

RESERVED

1шт.

7

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

8шт.

A18184

COVER

ASSEMBLY - pinion shaft, Includes: Ref. 8 and 9

1шт.

8

NSS

NOT SOLD SEPARAT

COVER - pinion shaft

1шт.

9

A18185

OIL SEAL

Oil

1шт.

10

A18190

GASKET

, Serial Range: Cover-cage

1шт.

L30333

CAGE

ASSEMBLY - pinion shaft bearing, Includes: Ref. 11 - 14

1шт.

11

NSS

NOT SOLD SEPARAT

CAGE - bearing

1шт.

12

A13161

BEARING CUP,88.5mm OD x 17.46mm W

Bearing, tapered roller type

1шт.

13

A13160

ROLLER BEARING,1.4375" ID x 0.933"

CONE, tapered roller type

1шт.

13a

L30395

BEARING

Pinion shaft, inner

1шт.

14

A18358

SPACER

Bearing, .175" thick

1шт.

14

A18359

SPACER

Bearing, .173" thick

1шт.

14

A18360

SPACER

Bearing, .174" thick

1шт.

14

A18361

SPACER

Bearing, .175" thick

1шт.

14

A18362

RING

SPACER - bearing, .176" thick

1шт.

14

A18363

SPACER

Bearing, .177" thick

1шт.

14

A18364

SPACER

Bearing, .183" thick

1шт.

14

A18365

SPACER

Bearing, .189" thick

1шт.

14

A18366

SPACER

Bearing, .195" thick

1шт.

14

A18367

SPACER

Bearing, .201" thick

1шт.

REF

INSTRUCTION

GEAR SET - ring and pinion, matched (Use A18200 kit), Includes: Ref. 15 and 16

1шт.

15

NSS

NOT SOLD SEPARAT

GEAR - ring

1шт.

16

NSS

NOT SOLD SEPARAT

GEAR - pinion

1шт.

17

A18182

BALL BEARING,27.75mm ID x 62mm OD x 18mm W

Inner, drive pinion (Ball type)

1шт.

18

A18199

SNAP RING,#106, Ext

Bearing

1шт.

19

A18197

SHIM,.003" Thk

Bearing cage, .003" Thk

1шт.

19

A18198

SHIM,.005" Thk

Bearing cage, .005" Thk

1шт.

20

221-835

PLUG

Pipe, sq. head, 3/4" NPT

1шт.

L34080

CARRIER

AND CAP ASSEMBLY - differential

1шт.

21

NSS

NOT SOLD SEPARAT

CARRIER - differential

1шт.

22

NSS

NOT SOLD SEPARAT

CAP - differential bearing

2шт.

23

NSS

NOT SOLD SEPARAT

DOWEL - cap

4шт.

24

A18171

CAP

BOLT - special

4шт.

25

L30737

WASHER

Special

4шт.

A18200

GEAR

KIT - gear and pinion, includes Refs. 1, 15, 18, 35 (L35919) 36 (13-1138) and 36A

1шт.

L35217

CASE

DIFFERENTIAL CASE AND GEAR ASSEMBLY - front axle

1шт.

L34022

TRANSMISSION

DIFFERENTIAL CASE AND GEAR ASSEMBLY - rear axle

1шт.

D47347

CASE ASSY.

Differential, Includes: Ref. 27 - 29

1шт.

26

NSS

NOT SOLD SEPARAT

CASE - plain half

1шт.

27

NSS

NOT SOLD SEPARAT

CASE - flange half

1шт.

28

L30668

SCREW

BOLT - special

8шт.

29

391-627

ELECTRICAL WIRE

WIRE LOCK - bolt, No. 16 x 22" long

1шт.

30

F9740

WASHER,60.68mm ID x 90.42mm OD x 1.58mm Thk

Thrust, side gear

2шт.

31

A18179

GEAR

Differential, side

2шт.

32

A18181

U-JOINT SPIDER

Differential

1шт.

33

A18175

PINION

GEAR - differential

4шт.

34

A18176

DISC

WASHER - thrust

4шт.

35

D47597

BOLT

Special, ring gear to differential (When stock is exhausted, order L35919 bolt, 131-1138 nut and D47366 washer for service)

12шт.

35

L35919

BOLT

Special, ring gear to differential (Used with 131-1138 nut and D47366 washer, Includes: Ref. 35 and 36

12шт.

36

129-282

SLOTTED NUT

Hex, slotted, 1/2" - 20 NF, used with D47597 bolt

12шт.

36

131-1138

LOCK NUT,1/2"-13, GC

Used with L35919 bolt

12шт.

36a

D47366

WASHER

Special, used with L35919 bolt and 131-1138 nut

12шт.

37

391-618

ELECTRICAL WIRE

WIRE LOCK - NO. 16 x 10" long, used with D47597 bolt and 129-282 nut

1шт.

38

A18173

ROLLER BEARING

CONE, tapered roller type, RH

1шт.

39

A7890

BEARING CUP,112.738 mm OD x 23.81 mm

Bearing, differential

1шт.

40

A18195

RING

Bearing, adjustment

1шт.

41

A18196

HARDWARE

PIN - special

2шт.

42

A26847

ROLLER BEARING,2.5" ID x 0.866"

CONE, tapered roll type, LH

1шт.

43

A26744

BEARING CUP,110.025 mm OD x 18.875 mm

CUP - bearing, differential

1шт.

44

A18194

RING

Bearing adjustment

1шт.
