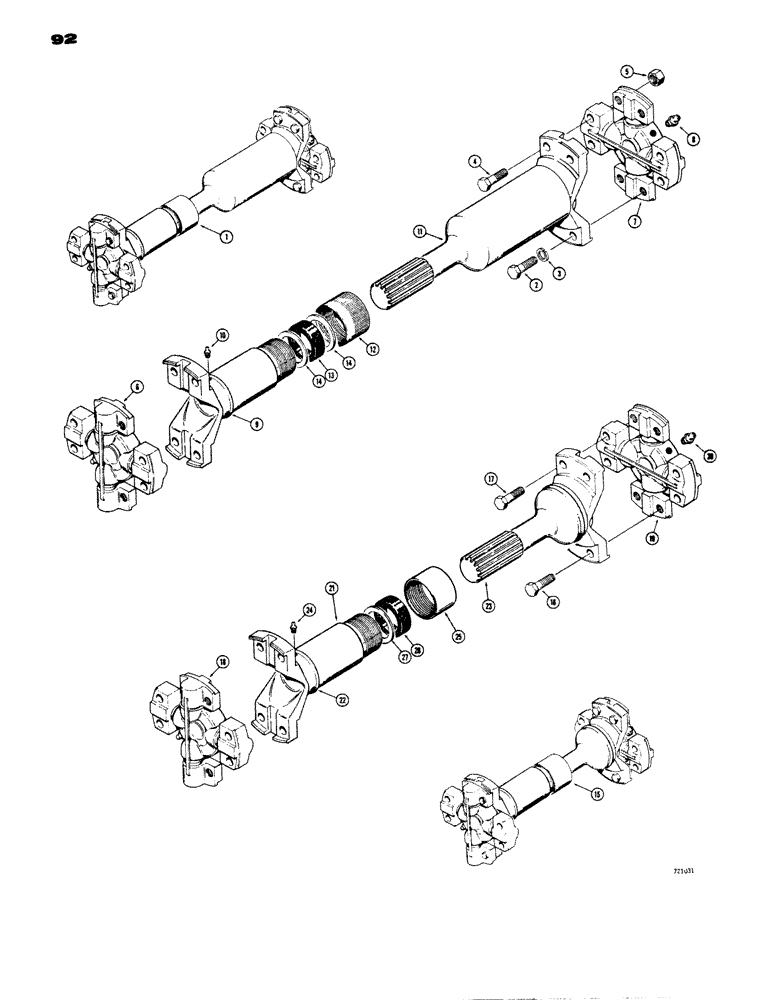

Запчасти Case W14 (092) - FRONT AXLE DRIVE SHAFT (TRANSMISSION END), REAR AXLE DRIVE (06) - POWER TRAIN

1

L51021

SHAFT

ASSEMBLY - drive, center, Includes: Ref. 2 - 14

1шт.

2

A17302

SCREW,Hex, 3/8" - 24 x 1", Gr 8

BOLT - special, spider and bearing to dirve shaft yokes

8шт.

3

L32430

LOCK WASHER

- lock, special

8шт.

4

L31781

BOLT

BOLT - special, spider and bearing to front drive shaft yoke and transmission

8шт.

5

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex., lock (3/8" - 24 NF)

8шт.

6

L32423

KIT

SPIDER AND BEARING ASSEMBLY - drive shaft, Includes: Ref. 7 and 8

2шт.

7

NSS

NOT SOLD SEPARAT

SPIDER AND BEARING - drive shaft

1шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

9

L32424

TUBE

YOKE AND TUBE - drive shaft

1шт.

10

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

11

L33949

YOKE

- splined end

1шт.

L32425

CAP

KIT - dust, drive shaft, Includes: Ref. 12 - 14

1шт.

12

NSS

NOT SOLD SEPARAT

CAP - dust, drive shaft

1шт.

13

L33948

WASHER

- felt

1шт.

14

L31779

WASHER

- metal, felt retaining

2шт.

15

L51017

SHAFT

ASSEMBLY - drive, rear axle, rear axle drive shaft, Includes: Ref. 16 - 27

1шт.

16

A17302

SCREW,Hex, 3/8" - 24 x 1", Gr 8

BOLT - special (3/8" -24 NF x 17/32"), rear axle drive shaft

12шт.

17

A17298

BOLT,Hex, 3/8" x 1 11/16"

- special (3/8" - 24 NF x 2"), rear sxle drive shaft

4шт.

18

L33953

U-JOINT SPIDER

SPIDER AND BEARING ASSEMBLY - drive shaft, rear axle, Includes: Ref. 19 and 20

2шт.

19

NSS

NOT SOLD SEPARAT

SPIDER AND BEARING - drive shafts, rear axle

1шт.

20

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, 1/4" - 28 NF, rear axle drive shaft

1шт.

22

L33955

YOKE

AND TUBE-drive shaft, rear axle, Includes: Ref. 23 - 27

1шт.

23

L33954

YOKE

- splined, rear axle drive shaft

1шт.

24

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT), rear axle drive shaft

1шт.

25

D32594

CYLINDER END CAP

CAP - dust, rear axle drive shaft

1шт.

26

A18390

WASHER

- felt, rear axle drive shaft

1шт.

27

A18388

CAP

WASHER - metal, felt retaining, rear axle drive shaft

1шт.
