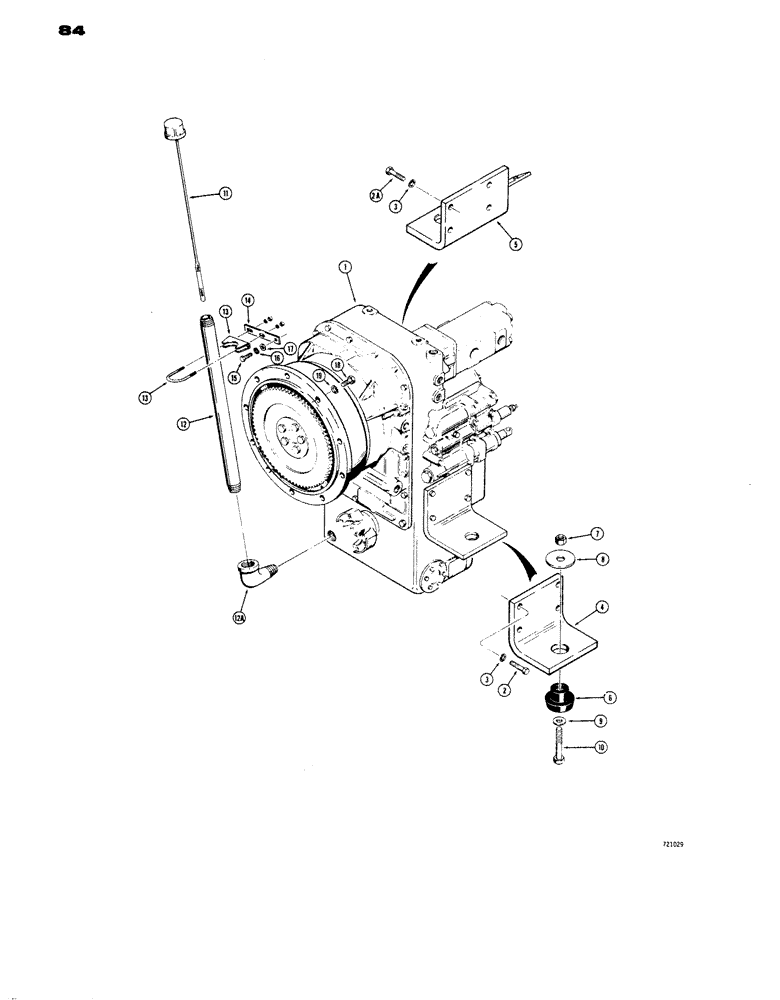

Запчасти Case W14 (084) - TRANSMISSION AND RELATED PARTS (06) - POWER TRAIN

1

L50106

TRANSMISSION

ASSEMBLY - complete (Parts list Figures 064 - 080) Before trans. Sn. 51482

1шт.

1

L55662

TRANSMISSION

ASSEMBLY - complete (Transmission Sn. 51482 and after) Parts list Figures 064 through 080

1шт.

2

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

2a

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

4шт.

3

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

4

L50676

BRACKET

- trans. mounting, R.H. (Includes Ref. 6)

1шт.

5

L51417

BRACKET - trans. mounting, L.H., Includes: Ref. 6

1шт.

6

S93392

MOUNTING PARTS

SHOCK MOUNT - transmission, bonded

1шт.

7

131-16

LOCK NUT,3/4"-10, GB

LOCKNUT, 3/4"-10, GB

2шт.

8

A19068

WASHER

- special, shock mount retaining

2шт.

9

95-12

WASHER,3/4"

- standard wrot () 3/4"

2шт.

10

13-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

2шт.

11

L50261

DIPSTICK

- transmission oil gauge (Threaded cap) When stock is exhausted, order L53872 dipstick for service

1шт.

11

L53872

DIPSTICK

- transmission oil gauge (Non-threaded cap with "T" handle ) Not shown

1шт.

12

L49769

PIPE - transmission filler (Threaded on both ends) When stock is exhausted, order L53873 pipe and L53872 dipstick for service)

1шт.

12

L53873

PIPE

- transmission filler (Threaded on lower end only) Not shown

1шт.

12a

221-417

ELBOW,90 Degree, 1 1/4"-11 1/2, NPT

- street, 90 degrees (1-/4" NPT)

1шт.

13

L14262

CLAMP

- pipe

1шт.

14

L72533

BRACKET

-, Serial Range: clamp-transmission

1шт.

15

13-722

BOLT,Hex, 7/16" - 14 x 1-3/8", Gr 5

1шт.

16

92-7

LOCK WASHER,7/16"

1шт.

17

95-7

WASHER,7/16"

- standard wrot () 7/16"

1шт.

18

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

12шт.

19

92-6

LOCK WASHER,3/8"

12шт.
