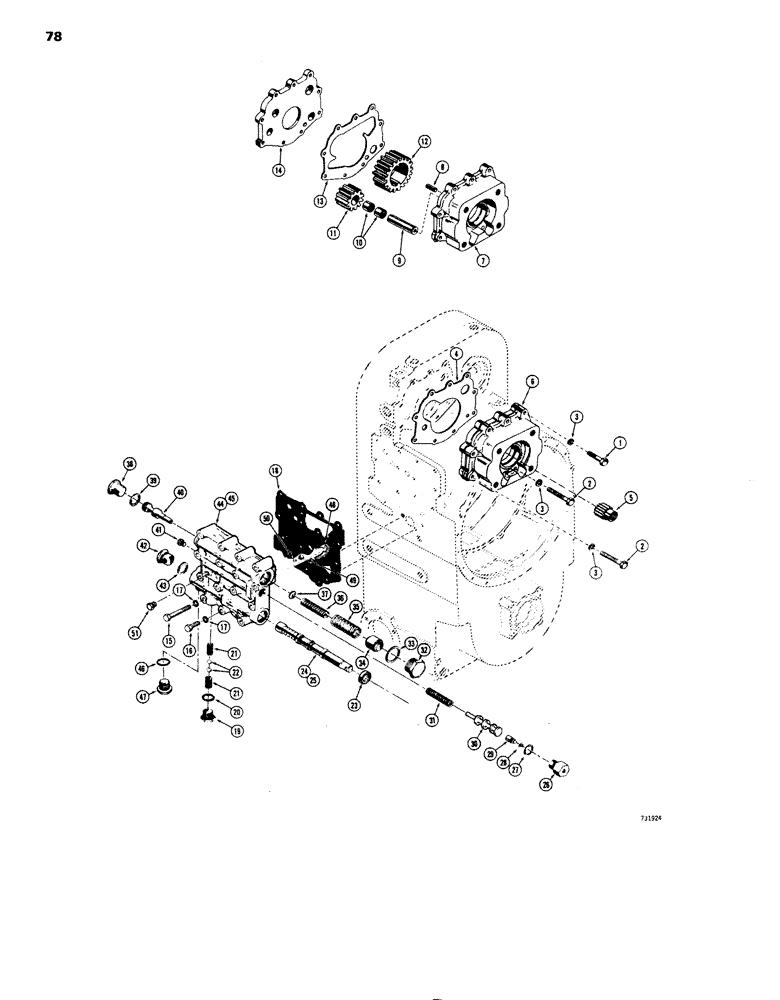

Запчасти Case W14 (078) - L50106 AND L55662 TRANSMISSIONS, CHARGING PUMP, CONTROL (06) - POWER TRAIN

1

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

7шт.

2

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

HHCS - 3/8" -16 NC x 3"

2шт.

3

92-6

LOCK WASHER,3/8"

9шт.

4

L31081

GASKET

-, Serial Range: pump-housing

1шт.

5

D47492

COUPLING, BREAK AWAY

COUPLING - charging pump drive

1шт.

The W14 line is the only product line to use a hydraulic pump coupler here. Other W-line models service manual show, show couplers, book error, only the W-14 uses one..

1шт.

6

L33974

PUMP

- transmission and torque converter charging (Before transmission Sn. 51482), Includes: Ref. 7 - 14

1шт.

6

L31078

PUMP

- transmission and torque converter charging (Transmission Sn. 51482 and after), Includes: Ref. 7 - 14

1шт.

7

NSS

NOT SOLD SEPARAT

HOUSING - pump

1шт.

8

L31168

PIN

- dowel, pump, Serial Range: housing-cover

1шт.

9

NSS

NOT SOLD SEPARAT

SHAFT - driven gear

1шт.

10

L31166

NEEDLE BEARING

- roller type

2шт.

11

NSS

NOT SOLD SEPARAT

GEAR - driven, pump

1шт.

12

NSS

NOT SOLD SEPARAT

GEAR - drive, pump

1шт.

13

L31037

GASKET

- pump, Serial Range: housing-cover

1шт.

14

NSS

NOT SOLD SEPARAT

COVER - pump

1шт.

15

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

HHCS - 3/8" - 16 NC x 2-1/2", control valves

15шт.

16

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Control valves Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

17

92-6

LOCK WASHER,3/8"

control valves 3/8"

16шт.

18

L31187

GASKET

- valve to housing, control valves

1шт.

L35242

VALVE

- transmission control (Before transmission Sn. 51482, control valves

1шт.

L36059

CONTROL VALVE

VALVE - transmission control (Transmission Sn. 51482 - 51786), control valves

1шт.

D71463

VALVE

- transmission ;control (Transmission Sn. 51786 and after), control valves, Includes: Ref. 19 - 33

1шт.

19

L31048

PLUG

- valve housing, lower, control valves

1шт.

20

L31034

WASHER

GASKET - trimmer valve plug, control valves

1шт.

21

L31027

SPRING

- detent, control valves

2шт.

22

211-13

BALL,1/2" Dia

- detent, control valves 1/2" Dia

2шт.

23

L31032

SEAL

- oil, control valves

1шт.

24

L31228

SPOOL

- valve (Before transmission Sn. 51482), control valves

1шт.

25

L36061

VALVE

SPOOL - valve (Tranmission Sn. 51482 and after), control valves

1шт.

26

L31030

PLUG

- clutch cut off valve, control valves

1шт.

27

L31034

WASHER

GASKET - plug, control valves

1шт.

28

A12666

O-RING,0.359" ID x 0.73"

SEAL - ring type, clutch cut off valve, control valves

1шт.

29

L31025

PLUG

- clutch cut off valve, control valves

1шт.

30

L33980

VALVE

- clutch cut off, control valves

1шт.

31

L31169

SPRING

- clutch cut off valve, control valves

1шт.

32

L31044

PLUG

- valve, control valves

1шт.

33

L31043

GASKET

- trimmer valve plug, control valves

1шт.

34

D51472

PLUG

- trimmer valve, control valves

1шт.

35

L31183

SPRING

- trimmer valve, control valves

1шт.

36

L35241

SPRING

- regulator valve, control valves

1шт.

37

L32743

RETAINER

- spring, control valves

1шт.

38

L31045

PLUG

- regulator valve, control valves

1шт.

39

L31016

GASKET

- plug, control valves

1шт.

40

L31189

VALVE

- regulator, control valves

1шт.

41

221-661

PLUG,Hex Hd, 1/8"-27

- valve, control valves

1шт.

42

L31054

PLUG - valve, before transmission Sn. 51482 only, control valves

1шт.

43

L31016

GASKET

- plug, control valves

1шт.

44

NSS

NOT SOLD SEPARAT

HOUSING - valve, before transmission Sn. 51482, control valves

1шт.

45

L36060

BODY

HOUSING - valve, Transmission Sn. 51482 only, control valves

1шт.

46

L36062

GASKET

- L35242 valve, control valves

1шт.

47

L36063

PLUG - hex. head, L35242 valve, control valves

1шт.

47

D72771

PLUG

- hex. head, D71463 and L36059 valve, control valves

1шт.

Used on Models without neutral start switch in valve.

1шт.

48

L31040

STOP

- valve, control valves

1шт.

49

L31046

PLUG

- ball retainer, control valves

1шт.

50

L31019

BALL

- valve, control valves

1шт.

51

221-661

PLUG,Hex Hd, 1/8"-27

- valve, control valves

1шт.
