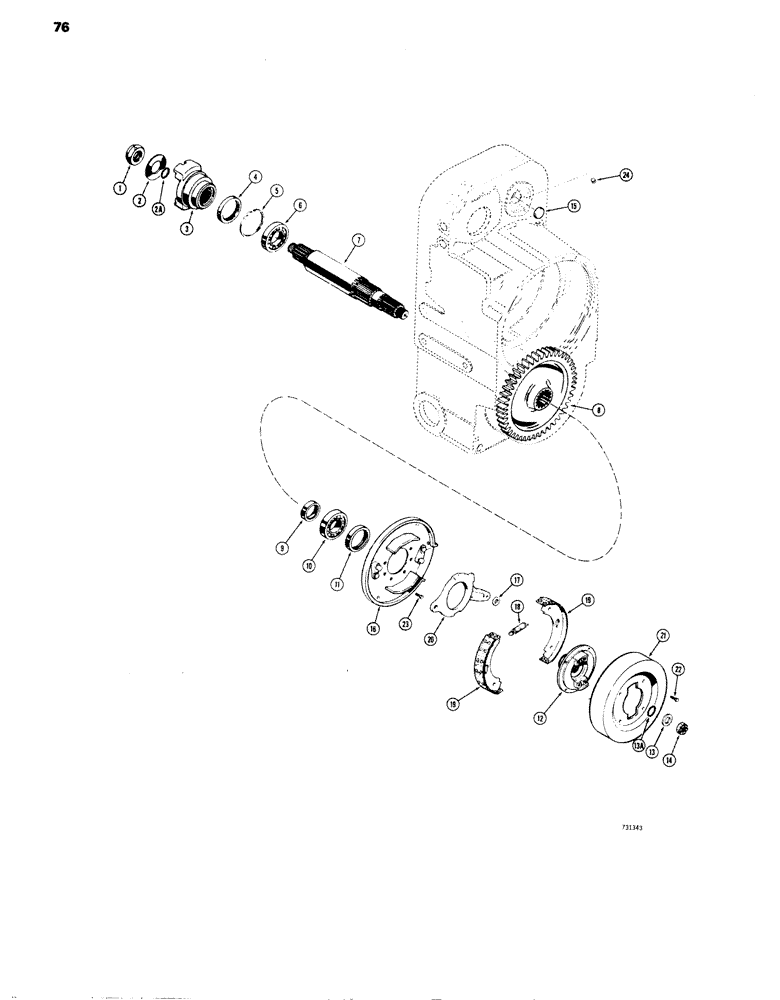

Запчасти Case W14 (076) - L50106 AND L55662 TRANSMISSIONS, AXLE OUTPUT SHAFT AND PARKING BRAKE (06) - POWER TRAIN

1

L31165

NUT

- flange washer retaining

1шт.

2

D47424

WASHER

- L36055 flange and L36058 shaft

1шт.

2

L35974

WASHER

- L33982 flange or D47491 shaft

1шт.

2a

L35973

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

SEAL - O-ring, use with L35974 washer

1шт.

2a

D71437

O-RING,1.475" ID x 1.895" OD

SEAL - O-ring, use with D47424 washer

1шт.

3

D71432

FLANGE

- rear, before transmission Sn.51482

1шт.

3

L36056

FLANGE

- rear, Transmission Sn. 51482 and after

1шт.

4

D47485

SEAL

- oil

1шт.

5

D47486

SNAP RING

SNAP RING - internal type

1шт.

6

L31013

BALL BEARING

- ball type

1шт.

7

D47491

SHAFT

- output, main, Axle drive, before transmission Sn. 51482

1шт.

7

L36058

SHAFT

- output, main, Axle drive Transmission Sn 51482 and after

1шт.

8

D47487

GEAR

- transfer

1шт.

9

D51506

BUSHING

SPACER - bearing

1шт.

10

D47489

ROLLER BEARING

BEARING - ball type

1шт.

11

D47485

SEAL

- oil

1шт.

12

D71431

FLANGE

- front, before Transmission Sn. 51482, holes are 3-1/2" apart, Serial Range: center-center

1шт.

12

L36055

FLANGE

- front, Transmission Sn. 51482 and after, holes are 4-1/2" apart, Serial Range: center-center

1шт.

13

D47424

WASHER

D71432 flange and D47491 shaft

1шт.

13

L35974

WASHER

- L36056 flange and L36058 shaft

1шт.

13a

L35973

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

SEAL - O-ring, use with L35974 washer

1шт.

13a

D71437

O-RING,1.475" ID x 1.895" OD

SEAL - O-ring, use with d47424 washer

1шт.

14

L31165

NUT

- flange washer retaining

1шт.

15

L33620

PLUG

- housing

1шт.

L33621

BRAKE

ASSEMBLY - parking, Includes: Ref. 16 - 21

1шт.

16

L33622

PLATE

- backing

1шт.

17

L33579

ROLLER

- brake

1шт.

18

A18134

SPRING

- brake shoe return

2шт.

19

D47524

BRAKE SHOE

SHOE AND LINING ASSEMBLY - brake

2шт.

D47501 parking brake lining kit is available for service replacement. includes 2 NSS linings and 24 L33939 rivets.

1шт.

20

D47526

LEVER

- brake shoe

1шт.

21

D47527

DRUM

- brake

1шт.

22

121-212

LOCK BOLT,Lock Place, Hex, 3/8" - 24 x 5/8", Gr 8

HHCS -3/8" 24 NF x 5/8"

4шт.

23

121-402

LOCK BOLT,Lock Place, Hex, 1/2" - 13 x 7/8", Gr 8

HHCS -1/2" -13 NC x 7/8"

4шт.

24

L33981

PLUG

- cup

1шт.
