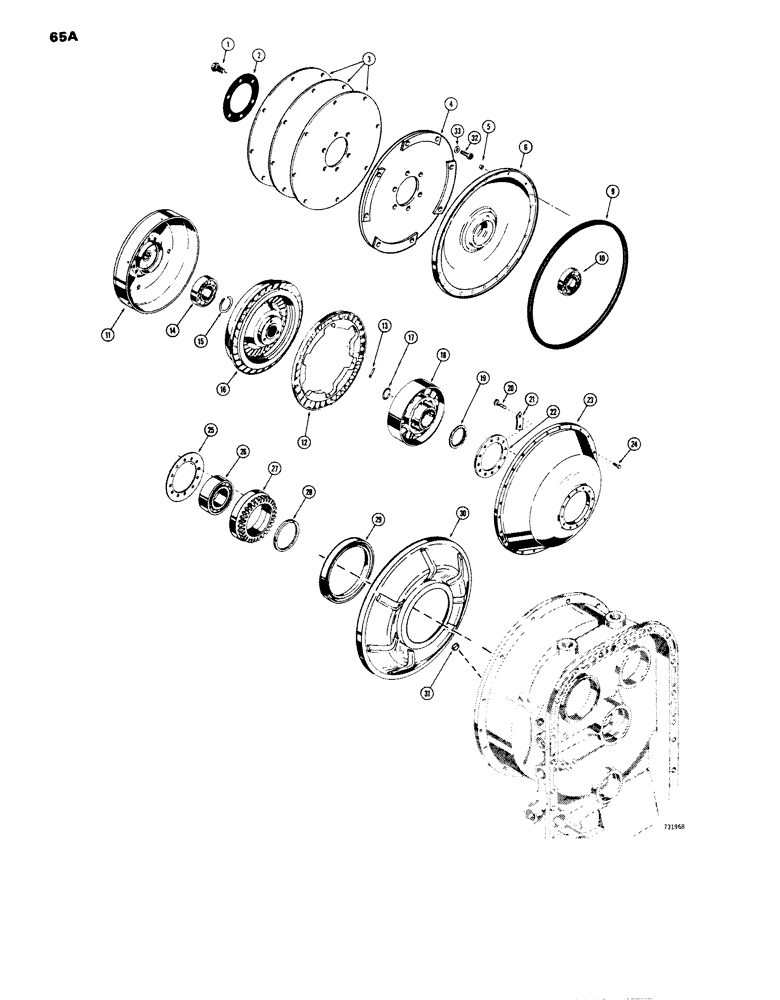

Запчасти Case W14 (065A) - L55662 TRANSMISSION, (FRONT COVER, INPUT SHAFT AND TORQUE CONVERTER) TRANS. S/N 51482 AND AFTER (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
121-402
LOCK BOLT,Lock Place, Hex, 1/2" - 13 x 7/8", Gr 8
HHCS - 1/2" - 13 NC x 7/8" (Grade 8)
6шт.
2
D46334
PLATE
- flex. disc retaining
1шт.
3
D46335
DISC
- flex plate drive
3шт.
4
L35093
DISC
- flex plate backing
1шт.
5
131-308
LOCK
NUT - hex., lock (5/16" - 24 NF)
24шт.
6
D46337
COVER
- torque converter pump
1шт.
7
RESERVED
1шт.
8
RESERVED
1шт.
9
A12674
RING
- seal
1шт.
10
L33908
BEARING
- ball type
1шт.
L33614
TURBINE
ASSEMBLY - torque converter, first, Includes: Ref. 11 - 13
1шт.
11
NSS
NOT SOLD SEPARAT
TURBINE HOUSING - torque converter, first
1шт.
12
NSS
NOT SOLD SEPARAT
TURBINE - torque converter, first
1шт.
13
L33615
PIN
- turbine
6шт.
14
L31004
BEARING
- ball type
1шт.
15
D47442
RING
SNAP RING - bearing retaining
1шт.
16
L33932
WHEEL
TURBINE ASSEMBLY - torque converter, second
1шт.
17
D47433
RING
SNAP RING - external type
1шт.
18
L33984
STATOR
- torque converter
1шт.
19
D47435
BUSHING
SPACER - stator
1шт.
20
28-420
BOLT,Hex, 1/4" - 28 x 1-1/4", Gr 8
HHCS -1/4" - 28 NF x 1-1/4"
12шт.
21
D47436
PLATE, LOCKING
PLATE - locking
6шт.
22
D47437
RETAINER
- pump
1шт.
L33931
HOUSING
PUMP ASSEMBLY - torque converter, Includes: Ref. 23 and 24
1шт.
23
NSS
NOT SOLD SEPARAT
PUMP - torque converter
1шт.
24
A12695
BOLT
- special
24шт.
25
D48208
GASKET
- pump
1шт.
26
D47531
BALL BEARING,55mm ID x 100mm OD x 33.34mm W
BEARING - ball tyoe
1шт.
27
L35399
GEAR
- drive
1шт.
28
D47441
SEAL
- rring type, converter housing sleeve
1шт.
L34000
DIAPHRAGM
ASSEMBLY - converter, Includes: Ref. 29 and 30
1шт.
29
NSS
NOT SOLD SEPARAT
SEAL - oil
1шт.
30
NSS
NOT SOLD SEPARAT
DIAPHRAGM - converter
1шт.
31
L30301
PLUG
- converter housing
1шт.
32
R14979
SCREW
BOLT - special, self locking (Grade 8)
8шт.
33
R14978
WASHER,9.91mm ID x 22.23mm OD x 1.52mm Thk
- special, cupped
8шт.
Выбрано товаров: 36
