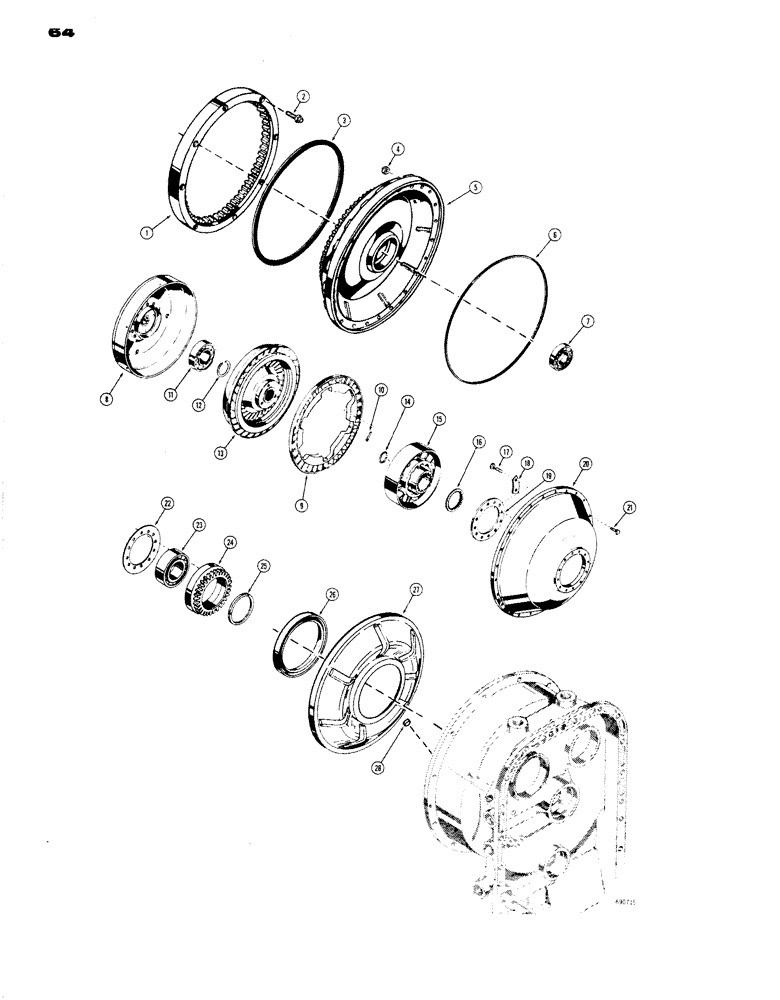

Запчасти Case W14 (064) - L50106 TRANSMISSION, FRONT COVER, INPUT SHAFT AND TORQUE CONVERTER, BEFORE TRANS. S/N 51482 (06) - POWER TRAIN

1

A16644

RING

- converter drive

1шт.

2

166-46

12 PT SCREW,Flg, 3/8" - 16 x 1 1/4", Gr 8

SCREW - ferry cap (3/8" - 16 NC x 1-1/4")

8шт.

3

A16645

SEALING RING

RING - seal

1шт.

4

25-135

SLOTTED NUT,5/16"-24, G5

NUT - hex., slotted (5/16" - 24 NF)

24шт.

5

L30355

COVER

- converter pump

1шт.

6

A12674

RING

- seal

1шт.

7

L33908

BEARING

- ball type

1шт.

L33614

TURBINE

ASSEMBLY - torque converter, first, Includes: Ref. 8 - 10

1шт.

8

NSS

NOT SOLD SEPARAT

TURBINE HOUSING - torque converter, first

1шт.

9

NSS

NOT SOLD SEPARAT

TURBINE - torque converter, first

1шт.

10

L33615

PIN

- turbine

6шт.

11

L31004

BEARING

- ball type

1шт.

12

D47442

RING

SNAP RING - bearing retaining

1шт.

13

L47433

TURBINE ASSEMBLY - torque converter, second

1шт.

14

D47433

RING

SNAP RING - external type

1шт.

15

L33984

STATOR

- torque converter

1шт.

16

D47435

BUSHING

SPACER - stator

1шт.

17

28-420

BOLT,Hex, 1/4" - 28 x 1-1/4", Gr 8

HHCS - 1/4" - 28 NF x 1-1/4"

12шт.

18

D47436

PLATE, LOCKING

PLATE - locking

6шт.

19

D47437

RETAINER

- pump

1шт.

L33931

HOUSING

PUMP ASSEMBLY - torque converter, Includes: Ref. 20 and 21

1шт.

20

NSS

NOT SOLD SEPARAT

PUMP - torque converter

1шт.

21

A12695

BOLT

- special

24шт.

22

D48208

GASKET

- pump

1шт.

23

D47531

BALL BEARING,55mm ID x 100mm OD x 33.34mm W

BEARING - ball type

1шт.

24

L32398

X

GEAR - drive (When stock is exhausted, order L35399 drive gear for service

1шт.

24

L35399

GEAR

- drive

1шт.

25

D47441

SEAL

- ring type, converter housing sleeve

1шт.

L34000

DIAPHRAGM

ASSEMBLY - converter, Includes: Ref. 26 and 27

1шт.

26

NSS

NOT SOLD SEPARAT

SEAL - oil

1шт.

27

NSS

NOT SOLD SEPARAT

DIAPHRAGM - converter

1шт.

28

L30301

PLUG

- converter housing

1шт.
