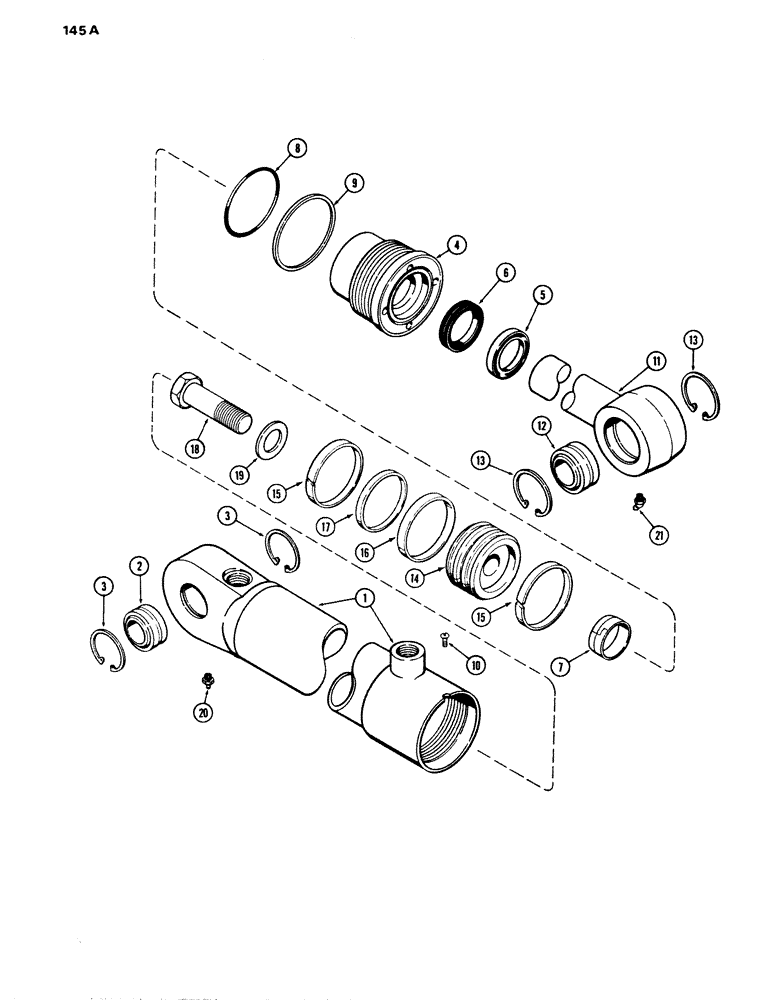

Запчасти Case W14 (145A) - G101280 STEERING CYLINDER, TUBE OR GLAND IS STAMPED WITH CYLINDER PART NUMBER (05) - STEERING

G101280

CYLINDER

- steering, 2-1/2" (64 mm) dia. x 14-1/8" (359 mm) stroke, Includes: Ref. 1 - 21

2шт.

1

G33876

TUBE,559.55 mm L

- cylinder body, Includes: Ref. 2 and 3

1шт.

2

D46620

BEARING,31.76 mm ID x 50.81 mm OD x 23.81 mm

- type, self- aligning

1шт.

3

D28436

SNAP RING,2", Int, #200

Ring, Snap, , brg 2", Int, #200

2шт.

G33578

GLAND

ASSEMBLY, Includes: Ref. 4 - 9

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND

1шт.

5

D95141

WIPER SEAL

WIPER - piston rod, outer

1шт.

Part of Seal Kit P/N G102407

1шт.

6

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

- piston rod

1шт.

7

D27705

WIPER

- piston rod, inner

1шт.

Part of Seal Kit P/N G102407

1шт.

8

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

1шт.

Part of Seal Kit P/N G102407

1шт.

9

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

- gland, O-ring backup

1шт.

Part of Seal Kit P/N G102407

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self tapping, No. 8-32 NC x 1/4"

1шт.

11

G33874

PISTON ROD

ROD - piston, 1-1/4" (32 mm) dia, Includes: Ref. 12 and 13

1шт.

12

L12570

BUSHING

BEARING - piston rod, self-aligning

1шт.

13

L12571

SNAP RING,#218, 2.321", Int, Spiral

RING - snap, bearing retaining

2шт.

14

G100708

PISTON

- one piece

1шт.

15

G100714

RING

- wear

2шт.

Part of Seal Kit P/N G102407

1шт.

16

G100713

SEALING RING,Square, 5.28mm Thk x 49.91mm ID

RING - backup

1шт.

Part of Seal Kit P/N G102407

1шт.

17

G102289

SEAL,59.92mm ID x 64.64mm OD x 6.96mm Thk

- piston

1шт.

Part of Seal Kit P/N G102407

1шт.

18

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

HHCS - 3/4" -16 NF x 3-1/2"

1шт.

19

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" NPT

1шт.

21

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - 45 degree grease, 1/8" NPT

1шт.

G102407

SEAL

KIT - seal, Includes: Ref. 5, 7, 8, 9, 15, 16 and 17

1шт.

G100775

SEAL

- piston rod, service option - extreme heat or cold

1шт.
