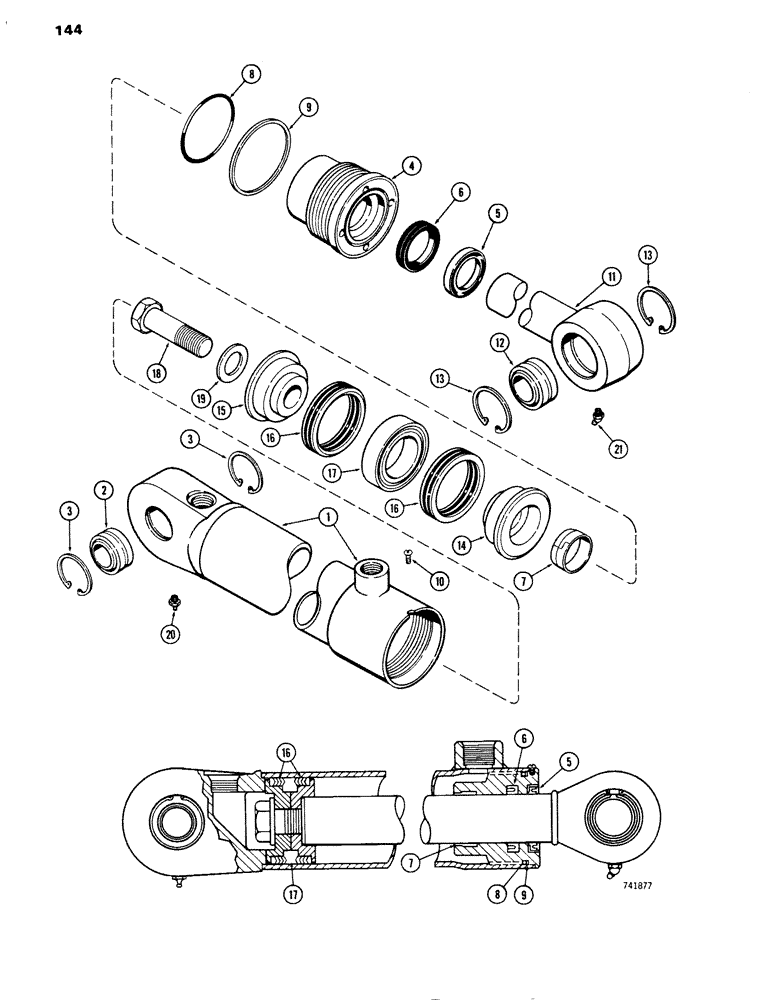

Запчасти Case W14 (144) - G33873 STEERING CYLINDER, TUBE OR GLAND IS STAMPED WITH CYLINDER PART NUMBER (05) - STEERING

G33873

CYLINDER

- steering, 2-1/2" dia. x 14-1/8" stroke (64 mm x 359 mm)

2шт.

1

G33876

TUBE,559.55 mm L

- cylinder body, Includes: Ref. 2 - 21

1шт.

2

D46620

BEARING,31.76 mm ID x 50.81 mm OD x 23.81 mm

- tube, self-aligning

1шт.

3

D28436

SNAP RING,2", Int, #200

Ring, Snap, , brg 2", Int, #200

2шт.

4

G33578

GLAND

ASSEMBLY, Includes: Ref. 4 - 9

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND

1шт.

5

D95141

WIPER SEAL

WIPER - piston rod, outer

1шт.

Part of Cylinder Repair Seal Kit P/N G32295

1шт.

6

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

- piston rod

1шт.

Part of Cylinder Repair Seal Kit P/N G32295

1шт.

7

D27705

WIPER

- piston rod, inner

1шт.

8

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

1шт.

Part of Cylinder Repair Seal Kit P/N G32295

1шт.

9

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

- gland, O-ring backup

1шт.

Part of Cylinder Repair Seal Kit P/N G32295

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self tapping, No 8 - 32 NC x 1/4"

1шт.

11

G33874

PISTON ROD

ROD - piston, 1-1/4" dia. (32 mm), Includes: Ref. 12 and 13

1шт.

12

L12570

BUSHING

BEARING - piston rod, self- aligning

1шт.

13

L12571

SNAP RING,#218, 2.321", Int, Spiral

RING - snap, bearing retaining

2шт.

14

G33347

PISTON ASSY.

PISTON - split, rod end

1шт.

15

D28364

PISTON

- split, bolt end

1шт.

16

G33193

PACKING

ASSEMBLY - piston, Includes: Ref. 16 and 17

1шт.

Part of Cylinder Repair Seal Kit P/N G32295

1шт.

16

NSS

NOT SOLD SEPARAT

PACKING ASSEMBLY - "V" type

2шт.

17

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

18

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

HHCS - 3/4" - 16 NF x 2-1/2"

1шт.

19

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" NPT

1шт.

21

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - 45 degree grease, 1/8" NPT

1шт.

G32295

GASKET KIT

SEAL - cylinder repair, Includes: Ref. 5, 6, 8, 9 and P/N G33193

1шт.

G100775

SEAL

- piston rod, service option - extreme heat or cold

1шт.
