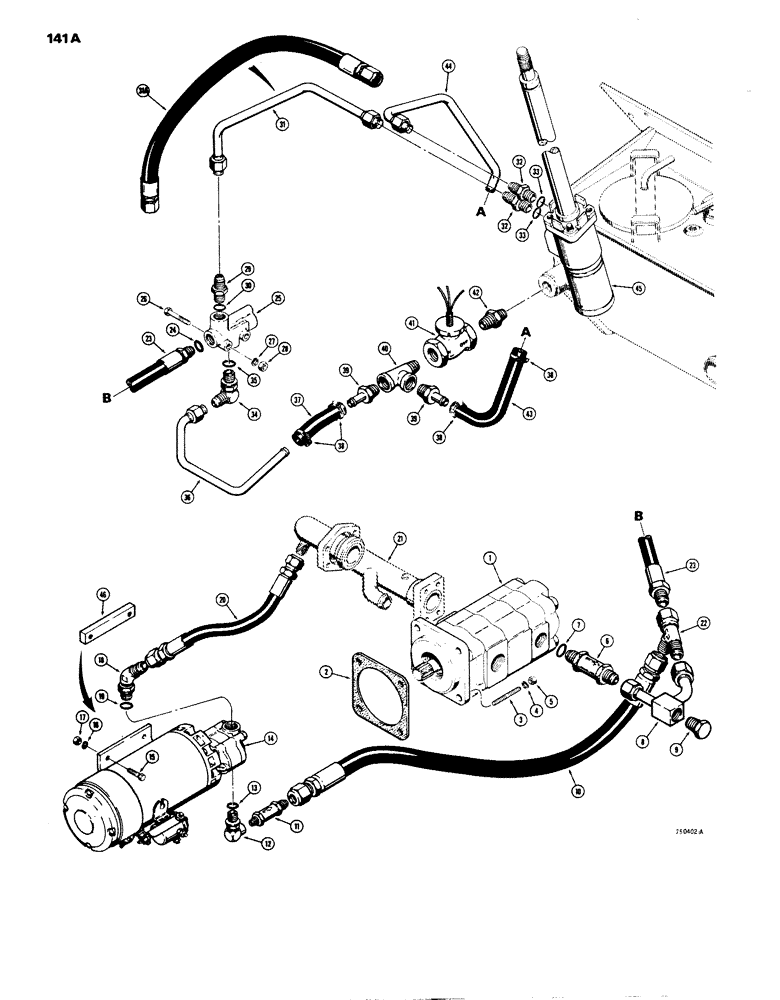

Запчасти Case W14 (141A) - STEERING PRESSURE LINE HYDRAULICS, MODELS WITH EMERGENCY STEERING (05) - STEERING

1

L50673

PUMP

Hydraulic (Parts list Figure 196)

1шт.

2

A12304

GASKET,0.4mm Thk

, Serial Range: Pump-transmission

1шт.

3

A27182

STUD

Special

4шт.

4

92-8

LOCK WASHER,1/2"

4шт.

5

25-108

NUT,1/2"-13, G5

Hex

4шт.

6

L58391

VALVE

Check

1шт.

7

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Seal

1шт.

8

L58891

TUBE

Pump to flow control valve

1шт.

9

221-655

PLUG,Hex Hd, 3/4"-14

(NPT)

1шт.

10

L72622

HOSE - hydraulic. 37" long

1шт.

11

L70819

VALVE

Check

1шт.

12

218-5460

FITTING

ELBOW - 90 degree, adjustable, Includes Ref. 13

1шт.

13

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Seal

1шт.

14

L70813

HYDRAULIC STEERING

PUMP AND MOTOR - parts list Figure 141C

1шт.

15

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

15

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

(L72530 plate)

4шт.

16

92-6

LOCK WASHER,3/8"

4шт.

17

25-106

NUT,3/8"-16, G5

4шт.

18

218-5146

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adjustable (Without backhoe), Includes Ref. 19

1шт.

18

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adjustable (Backhoe models) Not shown, Includes Ref. 19

1шт.

19

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Seal (218-5146 and 218-5121 elbows)

1шт.

20

L72663

HOSE ASSY.,0.50" ID x 14.00", SAE 100R3

Hydraulic, 14" long (Without backhoe)

1шт.

20

L72669

HOSE ASSY.,0.50" ID x 24.00", SAE 100R3

TUBE - suction, 24" long (With backhoe)

1шт.

21

REF

INSTRUCTION

TUBE - suction (See Figure 180 for service)

1шт.

22

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

Street

1шт.

23

L50800

HOSE

Hydraulic, 34-13/16" long, Includes Ref. 24

1шт.

24

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Seal

1шт.

25

L51457

VALVE

Flow control (Parts list Figure 140)

1шт.

26

13-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

27

92-5

LOCK WASHER,5/16"

2шт.

28

9635082

NUT,5/16" - 18, Gr 5

2шт.

29

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

Straight, male, Includes Ref. 30

1шт.

30

216-5007

SEAL - "O"ring

1шт.

31

L59644

TUBE,0.625" OD x 10.8, 6.2" L

Hydraulic, Use L73647 hose

1шт.

31a

L73647

HOSE ASSY.,0.63" ID x 19.00", SAE 100R2 Type A

Hydraulic. 19" long

1шт.

32

L218-5066

CONNECTOR - male, straight, Includes Ref. 33

2шт.

33

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Seal

1шт.

34

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adjustable, Incl. Ref. 35

1шт.

35

216-5007

SEAL - "O"ring

1шт.

36

L59837

TUBE,0.625" OD

Hydraulic

1шт.

37

L51361

HOSE,0.63" ID x 4.00", SAE 30R2 Type 1

Hydraulic, low pressure (5/8" I.D. x 4" long)

1шт.

38

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

4шт.

39

217-382

SPARE PART Hose stem 5/8" Hose x 1" NPTF Beaded

2шт.

40

221-695

FITTING,1" NPT

TEE, Pipe

1шт.

41

L58400

PRESSURE SWITCH

Flow control

1шт.

42

217-1075

HYD CONNECTOR,1" - 11-1/2 NPTF x 3/4" - 14 NPTF

Straight, pipe

1шт.

43

L72510

HOSE

Hydraulic, 10" x 5/8" I.D.

1шт.

44

L59835

TUBE

Hydraulic

1шт.

45

L50543

PUMP

Steering, parts list Figure 138

1шт.

46

L72530

PLATE

Pump (If used)

2шт.
