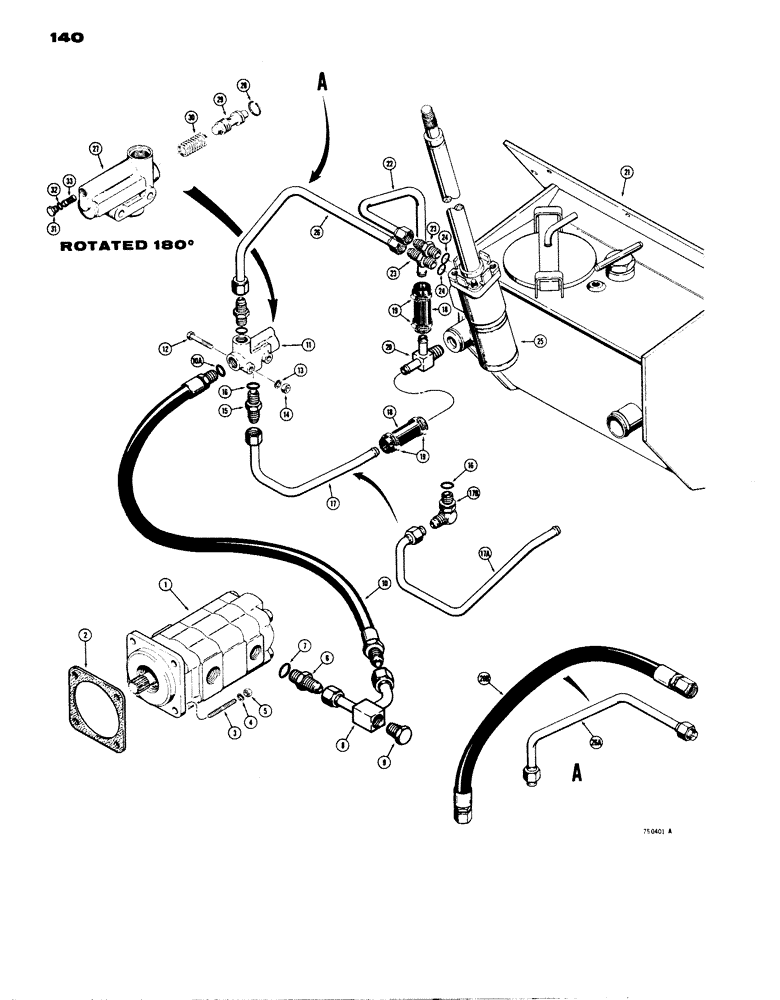

Запчасти Case W14 (140) - STEERING PRESSURE LINE HYDRAULICS, MODELS WITHOUT EMERGENCY STEERING (05) - STEERING

1

L50673

PUMP

- hydraulic (Parts list Figure 196)

1шт.

2

A12304

GASKET,0.4mm Thk

-, Serial Range: pump-transmission

1шт.

3

A27182

STUD

- special

4шт.

4

92-8

LOCK WASHER,1/2"

4шт.

5

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

4шт.

6

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - male, straight, Incl. Ref. 7

1шт.

7

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

8

L53111

TUBE,4, 3.1" L

- pump to flow control valve

1шт.

9

221-655

PLUG,Hex Hd, 3/4"-14

- hex. head (3/4" NPT)

1шт.

10

L50800

HOSE

- hydraulic, pump to flow control (34-13/16" long), Includes: Ref. 10A

1шт.

10a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

11

L51457

VALVE

- flow control (Parts list below)

1шт.

12

13-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

13

92-5

LOCK WASHER,5/16"

2шт.

14

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

2шт.

15

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - straight male, Includes: Ref. 16

2шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

17

L50902

TUBE,0.625" OD x 7.2, 3.1" L

- hydraulic, flow control to reservoir

1шт.

17a

L59762

TUBE,0.625" OD

- hydraulic, flow control to reservoir

1шт.

17b

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- adjustable, 90 degree

1шт.

18

L51361

HOSE,0.63" ID x 4.00", SAE 30R2 Type 1

0.63" ID x 4.00", SAE 30R2, Type 1, Hydraulic, Low Pressure

2шт.

19

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose

4шт.

20

L51622

TEE

- hose barb

1шт.

21

NSS

NOT SOLD SEPARAT

TANK - hydraulic reservoir (Parts list Figure 154)

1шт.

22

L50898

TUBE,0.625" OD

- hydraulic, reservoir to steering pump

1шт.

23

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., , male, straight, Incl. Ref. 24 7/8"-14, 37º x 3/4"-16, O-Ring

2шт.

24

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

25

L50543

PUMP

- steering (Parts list Figure 138)

1шт.

26

L50900

TUBE,0.625" OD

- steering pump to valve (Use L73647 hose)

1шт.

26a

L59644

TUBE,0.625" OD x 10.8, 6.2" L

- steering pump to valve (Use 73647 hose)

1шт.

26b

L73647

HOSE ASSY.,0.63" ID x 19.00", SAE 100R2 Type A

HOSE ASSY, 0.63" ID x 19.00", SAE 100R2, Type A, Steering Pump to Valve

1шт.

L51457

VALVE

- flow control, Includes: Ref. 27 - 33

1шт.

27

NSS

NOT SOLD SEPARAT

BODY - valve, L51457 flow control valve

1шт.

28

D46214

CIRCLIP

SNAP RING - spool retaining, L51457 flow control valve

1шт.

29

L33718

VALVE

SPOOL - flow control valve, L51457

1шт.

30

D46216

SPRING

- spool, L51457 flow control valve

1шт.

31

218-5152

PLUG,Hex Hd, 3/8"-24 ORB

Filter access, L51457 flow control valve, Includes Ref. 32 Hex Hd, 3/8"-24 ORB

1шт.

32

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk, L51457 flow control valve

1шт.

33

L33959

FILTER, ENGINE OIL

SCREEN - filter, L51457 flow control valve

1шт.
