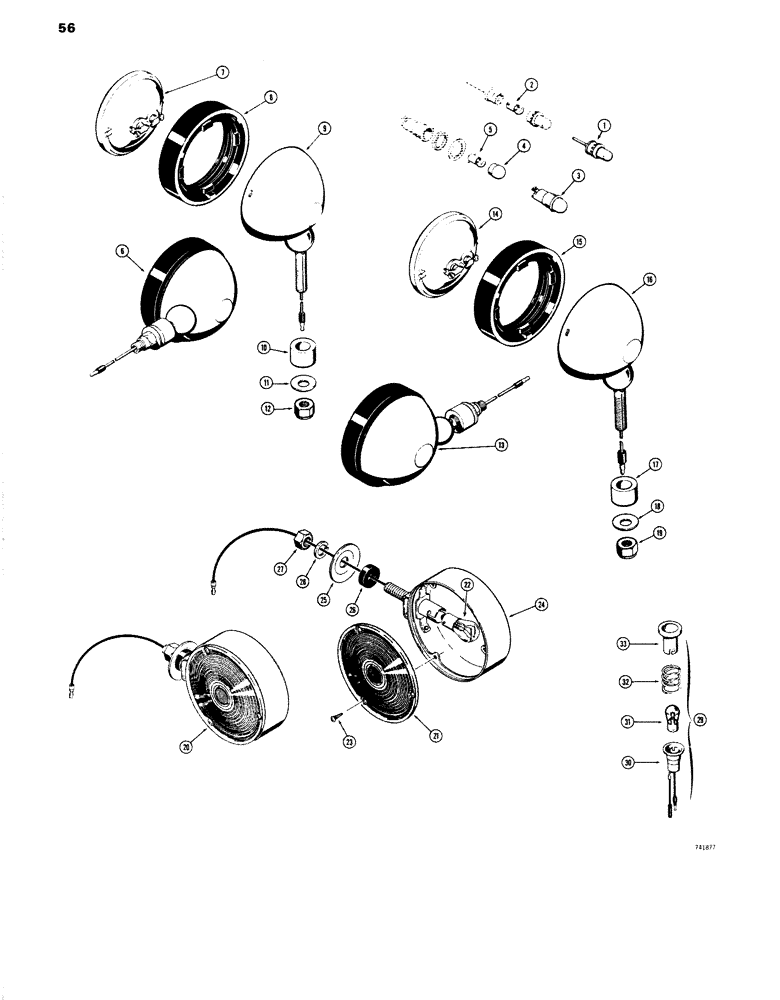

Запчасти Case W14 (056) - LIGHTING EQUIPMENT, INSTRUMENT PANEL LIGHT, IGNITION (04) - ELECTRICAL SYSTEMS

1

L55568

INTERIOR LIGHT

LIGHT ASSEMBLY - instrument panel, 12 volt, Includes: Ref. 2

2шт.

2

A22349

BULB

- #12V (#363)

1шт.

1

L13275

LAMP

LIGHT ASSEMBLY - instrument panel, 24 volt, Includes: Ref. 2

4шт.

2

A14928

BULB

- 24V. (#356)

1шт.

3

L13282

LAMP BASE

LIGHT ASSEMBLY - ignition indicator, 24 volt, Includes: Ref. 4 and 5

1шт.

4

L31223

LENS

- light, green, ignition indicator light

1шт.

5

L31227

BULB

- 24V. (#1819), ignition indicator light

1шт.

6

L71729

LAMP

LIGHT ASSEMBLY - painted black, 24 volt, front driving light, Includes: Ref. 7 - 12

2шт.

6

L13291

LAMP

LIGHT ASSEMBLY - painted yellow, 24 volt, front driving light, Includes: Ref. 7 - 12

2шт.

7

A25209

LAMP

LIGHT - sealed beam, front driving light

1шт.

8

A25210

MOUNTING PARTS

RETAINER - light, front driving light

1шт.

9

NSS

NOT SOLD SEPARAT

SHELL - light, front driving

1шт.

10

D37048

BUSHING

- light pivot, front driving light

1шт.

11

D37049

WASHER

- special, front driving light

1шт.

12

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

NUT - hex., lock (1/2" - 20 NF), front driving light

1шт.

13

L71730

INTERIOR LIGHT

LIGHT ASSEMBLY - painted black (24 volt), front and rear flood light, Includes: Ref. 14 - 19

3-4шт.

13

L13292

INTERIOR LIGHT

LIGHT ASSEMBLY - painted yellow (24 volt), front and rear flood light, Includes: Ref. 14 - 19

3-4шт.

14

D37920

LAMP

LIGHT - sealed beam, front and rear flood light

1шт.

15

A25210

MOUNTING PARTS

RETAINER - light, front and rear flood light

1шт.

16

NSS

NOT SOLD SEPARAT

SHELL - light, front and rear flood light

1шт.

17

D37048

BUSHING

- light, front and rear flood light

1шт.

18

D37049

WASHER

- special, front and rear flood light

1шт.

19

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

NUT - hex., lock (1/2" - 20 NF), front and rear flood light

1шт.

20

L47277

LAMP

- stop and tail, Do Ray (Use L59897 lamp), stop and taillight, Includes: Ref. 21 - 28

1шт.

21

L33639

LENS

- LIGHT, stop and taillight

1шт.

REF. 21 - RED LENS IS D82778 and BLACK LENS IS D82779

1шт.

22

A15084

LAMP

BULB - 24V. (#1683), stop and taillight

1шт.

23

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

- MACHINE, ROUND HEAD (6#-32 NC x 1/2"), stop and taillight

3шт.

24

NSS

NOT SOLD SEPARAT

BODY - light, stop and taillight

1шт.

25

L30258

WASHER

- crowned, metal, stop and taillight

1шт.

26

L30259

WASHER

- cushioned, rubber, stop and taillight

1шт.

27

129-104

NUT,7/16"-14, G5

Stop and tail light 7/16"-14, G5

1шт.

28

192-22

LOCK WASHER,7/16"

WASHER, LOCK, , 5189323, Stop and taillight 7/16"

1шт.

20

L59897

LAMP

- stop and tail (Hobbs), Includes: Ref. 21 - 24

1шт.

21

NSS

NOT SOLD SEPARAT

LENS - light, stop and taillight

1шт.

22

A15084

LAMP

BULB - 24V. (#1683), stop and taillight

1шт.

23

NSS

NOT SOLD SEPARAT

SCREW, stop and taillight

3шт.

24

NSS

NOT SOLD SEPARAT

BODY - light, stop and taillight

1шт.

25

L30258

WASHER

- crowned, rubber, stop and taillight

1шт.

26

L30259

WASHER

- cushioned, rubber, stop and taillight

1шт.

27

25-118

NUT,1/2"-20, G5

- hex.(1/2"- 20 NC), stop and taillight

1шт.

28

92-8

LOCK WASHER,1/2"

stop and taillight 1/2"

1шт.

29

L55349

LAMP

LIGHT ASSEMBLY - water temperature indicator, Includes: Ref. 30 - 33

1шт.

30

NSS

NOT SOLD SEPARAT

SOCKET - light, water temperature indicator

1шт.

31

L36001

BULB

- light (#303R), water temperature indicator

1шт.

32

L30505

VALVE SPRING

SPRING - light, water temperature indicator

1шт.

33

L36002

LENS

AND HOUSING - light, water temperature indicator

1шт.
