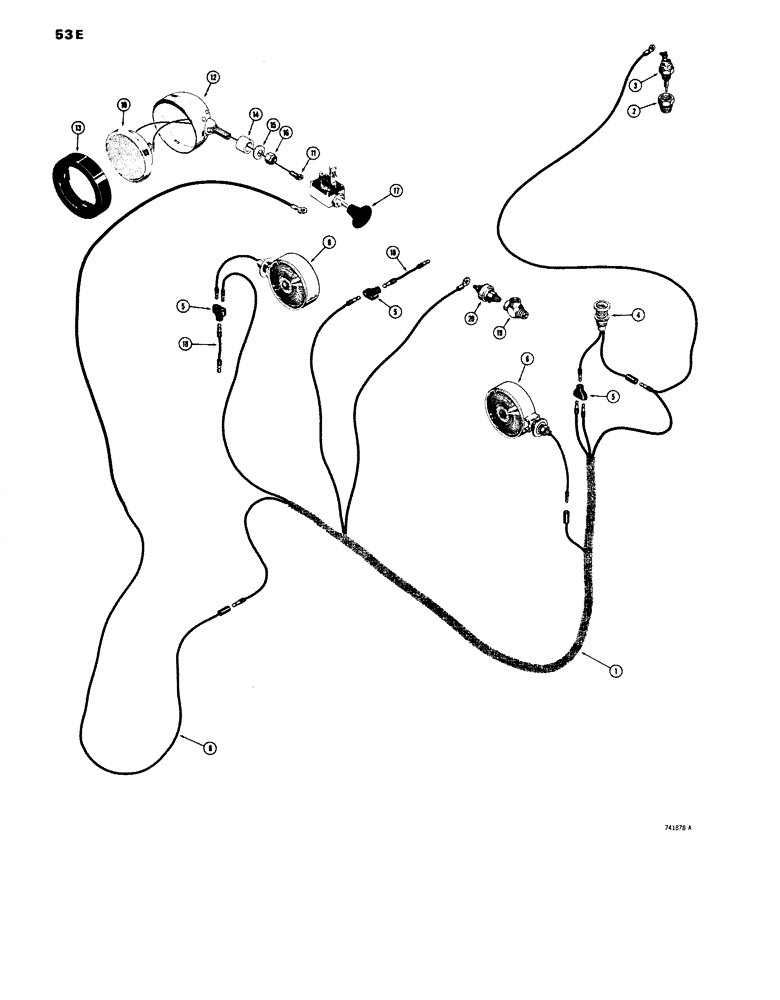

Запчасти Case W14 (053E) - BACKHOE ELECTRICAL SYSTEM AND FLOOD LIGHT (04) - ELECTRICAL SYSTEMS

1

L55342

HARNESS

- electrical

1шт.

2

221-56

BUSHING - reducer (1/2" x 3/8" NPT)

1шт.

3

L50238

SWITCH

SENDING - water temperature

1шт.

4

L55349

LAMP

ASSEMBLY - water temperature indicator (Parts list Figure 056)

1шт.

5

A8210

CONNECTOR, ELEC

CONNECTOR - 3 way

3шт.

6

L47277

LAMP

ASSEMBLY - stop and taillight (When stock is exhausted, L59897 will be supplied) Parts list Figure 056, Includes: Ref. 7

2шт.

6

L59897

LAMP

ASSEMBLY - stop and taillight (Parts list Figure 056), Includes: Ref. 7

2шт.

7

A15084

LAMP

BULB - light, 24 volt (Not shown)

2шт.

8

L55343

ELECTRICAL WIRE

WIRE ASSEMBLY - flood light

1шт.

9

RESERVED

1шт.

L58010

LIGHT ASSY.

FLOOD LIGHT ASSEMBLY - complete, Includes: Ref. 10 - 16

1шт.

10

A25212

LAMP

- seal beam, 24 volt

1шт.

11

223-59

TERMINAL CONNECTOR

EYELET

1шт.

12

D36824

SHELL

- light

1шт.

13

A25213

RETAINER

- rubber

1шт.

14

D37048

BUSHING

- pivot

1шт.

15

D37049

WASHER

- special

1шт.

16

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

NUT - hex., lock (1/2" - 20 NF)

1шт.

17

G13142

IGNITION SWITCH

SWITCH - light, flood

1шт.

18

L55344

ELECTRICAL WIRE

WIRE ASSEMBLY - electric fuel pump (If used)

2шт.

19

221-690

3 WAY CONNECTION

TEE - engine oil pressure

1шт.

20

A13794

TRANSMITTER

SENDING UNIT - engine oil pressure

1шт.
