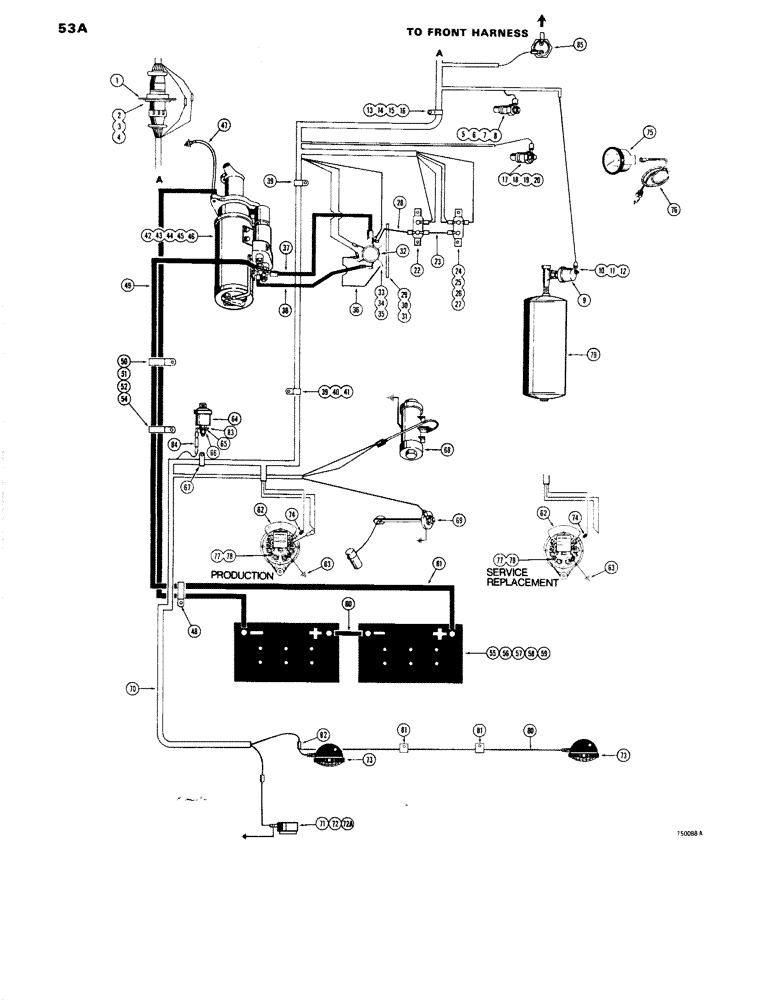

Запчасти Case W14 (053A) - ELECTRICAL SYSTEM, REAR HARNESS, MODELS WITH INSTRUMENT CLUSTER (04) - ELECTRICAL SYSTEMS

1

L57712

SPARE PART Electrical harness

1шт.

2

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

4шт.

3

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

4шт.

4

129-15

NUT,#6-32

4шт.

5

L56217

UNIT

SENDER - converter oil temperature

1шт.

6

92-3

LOCK WASHER,#10

1шт.

7

195-12

WASHER,#10

1шт.

8

129-27

NUT,Hex, #10 - 32

NUT - hex. (#10-24 NC)

1шт.

9

L57176

SENDER UNIT

Air pressure

1шт.

10

92-3

LOCK WASHER,#10

1шт.

11

195-12

WASHER,#10

1шт.

12

129-27

NUT,Hex, #10 - 32

NUT - hex. (#10-24 NC)

1шт.

13

D20302

CLAMP,7/8", Insul, 3/8" Bolt

Harness

1шт.

14

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

15

92-6

LOCK WASHER,3/8"

1шт.

16

25-106

NUT,3/8"-16, G5

1шт.

17

L50238

SWITCH

SENDING UNIT - water temperature, Models with backhoe

1шт.

17

REF

INSTRUCTION

SENDING UNIT - water temperature, Models without backhoe (See Figure 008)

1шт.

18

195-12

WASHER,#10

1шт.

19

92-3

LOCK WASHER,#10

1шт.

20

129-27

NUT,Hex, #10 - 32

1шт.

21

RESERVED

1шт.

22

D37203

BREAKER

Circuit (15 amp)

1шт.

23

L70057

ELECTRICAL WIRE

WIRE 15 amp breaker to 25 amp breaker

1шт.

24

L11342

BREAKER

Circuit (25 amp)

1шт.

25

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

2шт.

26

193-6

LOCK WASHER,Ext Tooth, #10

2шт.

27

129-17

NUT,Hex, #10 - 24

2шт.

28

L70058

ELECTRICAL WIRE

WIRE Solenoid to circuit breaker

1шт.

29

L18684

BRACKET

SPARE PART Solenoid mounting

1шт.

30

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

(Bracket mounting)

2шт.

31

92-5

LOCK WASHER,5/16"

2шт.

32

L74196

SOLENOID

Starter (replaces D31479)

1шт.

33

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

(Solenoid to bracket)

2шт.

34

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

2шт.

35

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

36

A31060

ELECTRICAL WIRE

WIRE, Serial Range: Solenoid-ground

1шт.

37

L14552

CABLE

, Serial Range: Starter-solenoid

1шт.

38

L13300

ELECTRICAL WIRE

WIRE, Serial Range: Solenoid-starter

1шт.

39

49838

CLAMP

Harness

2шт.

40

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

41

92-6

LOCK WASHER,3/8"

1шт.

42

R26136

STARTER MOTOR

Engine (Parts list Figures 036 - 038)

1шт.

43

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

44

13-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

1шт.

45

RESERVED

1шт.

46

R24323

WASHER

Flat (1/2")

3шт.

47

L40793

ELECTRICAL WIRE

WIRE CABLE - ground, starter

1шт.

48

R17416

CLAMP

Battery cable

1шт.

49

L52232

CABLE

Battery to starting motor

1шт.

50

L19029

CLAMP

Battery cable

2шт.

51

RESERVED

1шт.

52

92-6

LOCK WASHER,3/8"

2шт.

53

RESERVED

1шт.

54

25-106

NUT,3/8"-16, G5

2шт.

55

A38411

DRY BATTERY

12 volt

2шт.

56

L51503

HOLDER

Battery

2шт.

57

T53041

BOLT

"J" - battery holddown

4шт.

57a

95-5

WASHER,3/8" x 7/8" x .083"

WASHER - flat (5/16")

4шт.

58

92-5

LOCK WASHER,5/16"

4шт.

59

131-4

LOCK NUT,5/16"-18, GB

4шт.

60

L13310

CABLE

, Serial Range: Battery-battery

1шт.

61

L47938

CABLE

Battery ground

1шт.

62

L55767

ALTERNATOR

24 volt (Parts list Figure 034)

1шт.

63

A18312

SPARE PART Ground, alternator

1шт.

64

A35031

SENDER UNIT

SENDER Oil pressure, Models without backhoe

1шт.

64

A13794

TRANSMITTER

SENDING UNIT - oil pressure, Models with backhoe

1шт.

65

192-6

LOCK WASHER,#8

1шт.

66

129-6

NUT,#8-32

1шт.

67

49838

CLAMP

Harness

1шт.

68

L52634

PUMP

Fuel transfer (Parts list Figure 149E)

1шт.

69

L13302

TRANSMITTER

SPARE PART SENDING UNIT - fuel gauge

1шт.

70

L57938

ELECTRICAL WIRE

SPARE PART HARNESS - electrical, rear

1шт.

71

L59897

LAMP

Stop and tail (Parts list Figure 056)

1шт.

72

92-8

LOCK WASHER,1/2"

1шт.

72a

25-118

NUT,1/2"-20, G5

1шт.

75

L13316

ELECTRICAL GAUGE

TACHOMETER - engine R.P.M.

1шт.

74

L58496

RESISTOR

SPARE PART Alternator (25 ohm)

1шт.

73

REF

INSTRUCTION

LAMP - flood (See Figure 056 for lights)

1-2шт.

74

L58496

RESISTOR

SPARE PART Alternator (25 ohm)

1шт.

75

L13316

ELECTRICAL GAUGE

TACHOMETER - engine R.P.M.

1шт.

76

A24101

CABLE

Tachometer drive

1шт.

77

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

3шт.

78

129-17

NUT,Hex, #10 - 24

3шт.

79

REF

INSTRUCTION

RESERVOIR - air brake systems (See Figure 122 for related parts)

1шт.

80

L48782

ELECTRICAL WIRE

WIRE RH floodlight

1шт.

81

49832

CLAMP

Wire

2шт.

82

A8210

CONNECTOR, ELEC

CONNECTOR Harness to floodlight (Used with 2 rear floodlights)

1шт.

82

A30366

CABLE

CONNECTOR - harness to floodlight (Used with single rear floodlight)

1шт.

83

L58511

TERMINAL CONNECTOR

Oil pressure sending unit

1шт.

84

L58497

RESISTOR

Oil pressure sending unit

1шт.

85

L57855

SWITCH

Neutral start

1шт.
