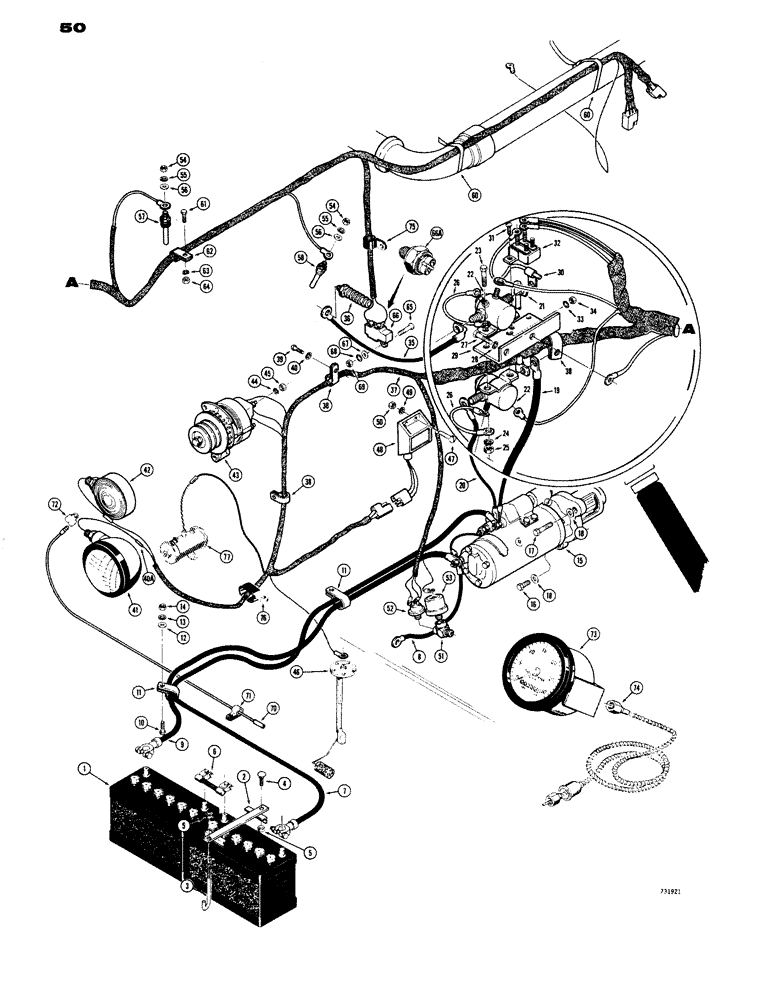

Запчасти Case W14 (050) - ELECTRICAL SYSTEM (REAR HARNESS), MODELS WITHOUT INSTRUMENT CLUSTER (04) - ELECTRICAL SYSTEMS

1

A38411

DRY BATTERY

12 volt, dry charge

2шт.

2

L51503

HOLDER

Battery

2шт.

3

T53041

BOLT

"J" - holddown

2шт.

4

11-524

CARRIAGE BOLT,Short NK, 5/16"-18 x 1 1/2"

2шт.

5

25-145

JAM NUT,Jam, 5/16"-18, G5

4шт.

6

L13310

CABLE

Jumper

1шт.

7

L47938

CABLE

Battery, ground to starter end cover

1шт.

8

L40793

ELECTRICAL WIRE

WIRE CABLE - ground, starter to engine block and chassis

2шт.

9

L52232

CABLE

Battery to starter solenoid

1шт.

10

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

11

L19029

CLAMP

Battery cable

2шт.

12

95-6

WASHER,3/8"

2шт.

13

92-6

LOCK WASHER,3/8"

2шт.

14

25-106

NUT,3/8"-16, G5

2шт.

15

R26136

STARTER MOTOR

Electrical, 24 volt (Parts list pages 37 and 39)

1шт.

16

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

17

13-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

1шт.

18

R24323

WASHER

Special

3шт.

19

L13300

ELECTRICAL WIRE

WIRE CABLE - starter solenoid to heater solenoid

1шт.

20

L14552

CABLE

, Serial Range: Starter-solenoid

1шт.

21

L17822

ELECTRICAL WIRE

WIRE CABLE - jumper, solenoid connecting

1шт.

22

D31479

SOLENOID SWITCH

SOLENOID - magnetic, 24 volt

2шт.

23

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

24

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

2шт.

25

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

26

A31060

ELECTRICAL WIRE

WIRE Ground, solenoid

2шт.

27

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

28

92-5

LOCK WASHER,5/16"

2шт.

29

L18684

BRACKET

SPARE PART Mounting, solenoid and circuit breaker

1шт.

30

L53270

SPARE PART Solenoid to circuit breaker

1шт.

31

173212

SCREW - machine, round head (#10 - 24 NC x 1/2")

2шт.

32

L11343

BREAKER

Circuit, 60 amp

1шт.

33

193-6

LOCK WASHER,Ext Tooth, #10

2шт.

34

129-17

NUT,Hex, #10 - 24

2шт.

35

L17831

WIRE HARNESS

CABLE - solenoid to manifold beater

1шт.

36

A34278

HEATER

Manifold

1шт.

37

L52522

HARNESS

Wiring, rear

1шт.

38

49838

CLAMP

Rear harness

3шт.

39

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

40

92-6

LOCK WASHER,3/8"

1шт.

40a

A30366

CABLE

CONNECTOR - flood light to harness (Used with single flood light)

1шт.

41

REF

INSTRUCTION

LIGHT - rear flood (See Figure 57 for lights)

1-2шт.

42

L47277

LAMP

Stop and tail (When stock is exhausted L59897 will be supplied) Parts list Figure 57, Includes: Ref. 42A

1-2шт.

42

L59897

LAMP

Stop and tail (Parts list Figure 57), Includes: Ref. 42A

1-2шт.

42a

A15084

LAMP

BULB, 24 volt (Not shown)

1-2шт.

43

A41360

ALTERNATOR

ASSEMBLY - 24 volt (Parts list Figure 35)

1шт.

44

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

3шт.

45

129-37

NUT,#10-32

NUT - hex. (#10-24 NC)

3шт.

46

L55039

UNIT

SENDING - fuel gauge

1шт.

47

169-99

SCREW,Sl Fil Hd, #10 - 24 x 5/8"

3шт.

48

A75072

REGULATOR

Voltage

1шт.

49

92-3

LOCK WASHER,#10

3шт.

50

129-17

NUT,Hex, #10 - 24

3шт.

51

221-690

3 WAY CONNECTION

TEE - engine oil pressure switch

1шт.

52

D28798

SWITCH

Pressure, oil

1шт.

53

A35031

SENDER UNIT

SENDER Engine oil pressure

1шт.

54

129-17

NUT,Hex, #10 - 24

NUT - hex. (#10-32 NF)

2шт.

55

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

2шт.

56

195-12

WASHER,#10

2шт.

57

F13156

SENDER UNIT

SENDER Engine water temperature

1шт.

58

A13795

SENDER UNIT

SENDER Converter oil temperature

1шт.

59

RESERVED

1шт.

60

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP Tee, harness

5шт.

61

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

62

D20302

CLAMP,7/8", Insul, 3/8" Bolt

Harness

1шт.

63

92-6

LOCK WASHER,3/8"

1шт.

64

25-106

NUT,3/8"-16, G5

1шт.

65

182-53

SCREW,Sl Pan Hd, #6 - 32 x 1 1/2"

(If used)

2шт.

66

L54683

SWITCH

Neutral start (Used before trans. S/N 51482)

1шт.

66a

L57855

SWITCH

Neutral start (Used trans. S/N 51482 and after)

1шт.

67

195-10

WASHER,#8

If used

2шт.

68

193-4

LOCK WASHER,Ext Tooth, 0.145" ID x 0.318" OD, STL, PLN

If used

2шт.

69

129-15

NUT,#6-32

If used

2шт.

70

L48782

ELECTRICAL WIRE

WIRE Jumper, rear flood light (Used if unit has two rear flood lights)

1шт.

71

49832

CLAMP

Jumper wire

2шт.

72

A8210

CONNECTOR, ELEC

CONNECTOR Rear flood light wire (Used with two rear flood lights)

1шт.

73

L13316

ELECTRICAL GAUGE

TACHOMETER - engine speed, R.P.M.

1шт.

74

A24101

CABLE

Tachometer drive

1шт.

75

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

Cable (to neutral start switch)

1шт.

76

R17416

CLAMP

Battery cables and harness

1шт.

77

REF

INSTRUCTION

PUMP - fuel transfer (if used) parts list page 149D (related parts Figure 149B)

1шт.
