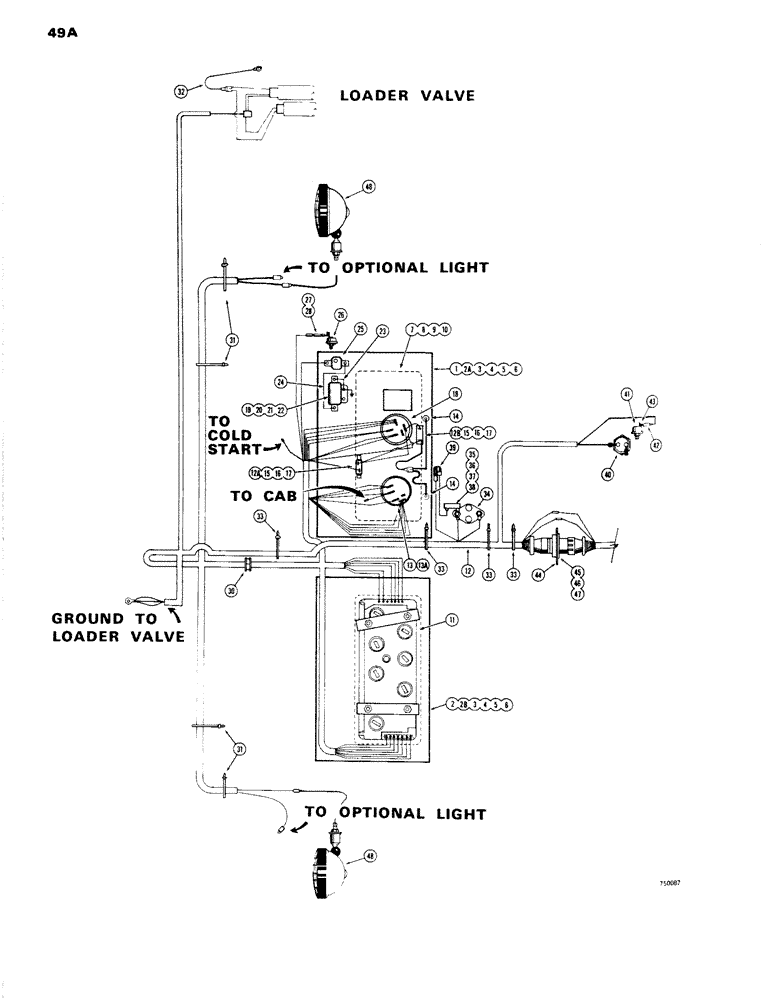

Запчасти Case W14 (049A) - ELECTRICAL SYSTEM, FRONT HARNESS AND INSTRUMENT PANELS, MODELS W/ INSTRUMENT CLUSTER (04) - ELECTRICAL SYSTEMS

1

L59975

PANEL

Instrument, RH

1шт.

2

L57001

PANEL

Instrument, LH

1шт.

2a

L57916

STRIP

Filler, instrument panel and frame (RH)

1шт.

2b

L57917

STRIP

Filler, instrument panel and frame (LH)

1шт.

3

77-412

SCREW

Truss head (1/4"-20 NC x 3/4")

8шт.

4

92-4

LOCK WASHER,1/4"

8шт.

5

95-4

WASHER,1/4"

8шт.

6

25-108

NUT,1/2"-13, G5

NUT - hex. 1/4" - 20 NC

8шт.

8

164-215

HEX SOC SCREW,#6 - 32 x 3/4", SST

4шт.

9

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

4шт.

10

129-15

NUT,#6-32

4шт.

11

L55650

CLUSTER

Instrument panel, LH (See Figure 049E for breakdown)

1шт.

12

L57523

HARNESS

SPARE PART Front, electrical, Includes: Ref. 12A and 12B

1шт.

12a

L57052

RESISTOR

Front harness

1шт.

12b

L57178

RESISTOR

Front harness

1шт.

13

L55655

SWITCH

Ignition, Includes: Ref. 13A

1шт.

13a

D36822

KEY

Set of two

1шт.

14

L55568

INTERIOR LIGHT

Instrument panel (Parts list Figure 056)

2шт.

15

171-61

SCREW,Sl Flat Hd, #6 - 32 x 1/2"

4шт.

16

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

4шт.

17

129-15

NUT,#6-32

4шт.

18

L55654

SWITCH

Light

1шт.

19

L15056

BUZZER

Warning, air pressure

1шт.

20

73-48

SCREW,Slotted Flat Hd, 1/4"-20 x 1/2"

2шт.

21

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

2шт.

22

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

23

A31060

ELECTRICAL WIRE

WIRE, Serial Range: Buzzer-ground

1шт.

24

A18457

ELECTRICAL WIRE

WIRE, Serial Range: Buzzer-switch

1шт.

25

L48480

SWITCH

Air pressure

1шт.

26

L57937

SWITCH

Air parking brake

1шт.

27

L58497

RESISTOR

Air brake switch (40 ohm)

1шт.

28

L58511

TERMINAL CONNECTOR

Resistor to wire harness

1шт.

29

L59970

BREAKER

RESERVED

1шт.

30

L53783

GROMMET,1 1/4" ID x 2 3/8" Groove Dia, Str Cut

Split

1шт.

31

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP Tie

4шт.

32

L50380

ELECTRICAL WIRE

WIRE Ground, valve to tractor frame

1шт.

33

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

4шт.

34

L48128

VALVE

SWITCH - stop light (Parts list Figure 132)

1шт.

35

L59040

RESISTOR

Stop light switch

1шт.

36

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

1шт.

37

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

1шт.

38

129-15

NUT,#6-32

1шт.

39

L11760

DIODE

Stoplight switch protecting

1шт.

40

L57855

SWITCH

Neutral start

1шт.

41

L71751

PRESSURE SWITCH

Clutch, pressure

1шт.

42

L58497

RESISTOR

40 ohm

1шт.

43

L58511

TERMINAL CONNECTOR

Resistor

1шт.

44

L57712

SPARE PART Harness

1шт.

45

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

4шт.

46

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

4шт.

47

129-15

NUT,#6-32

4шт.

48

REF

INSTRUCTION

LAMP - flood (See Figure 056 for proper lights)

2шт.
