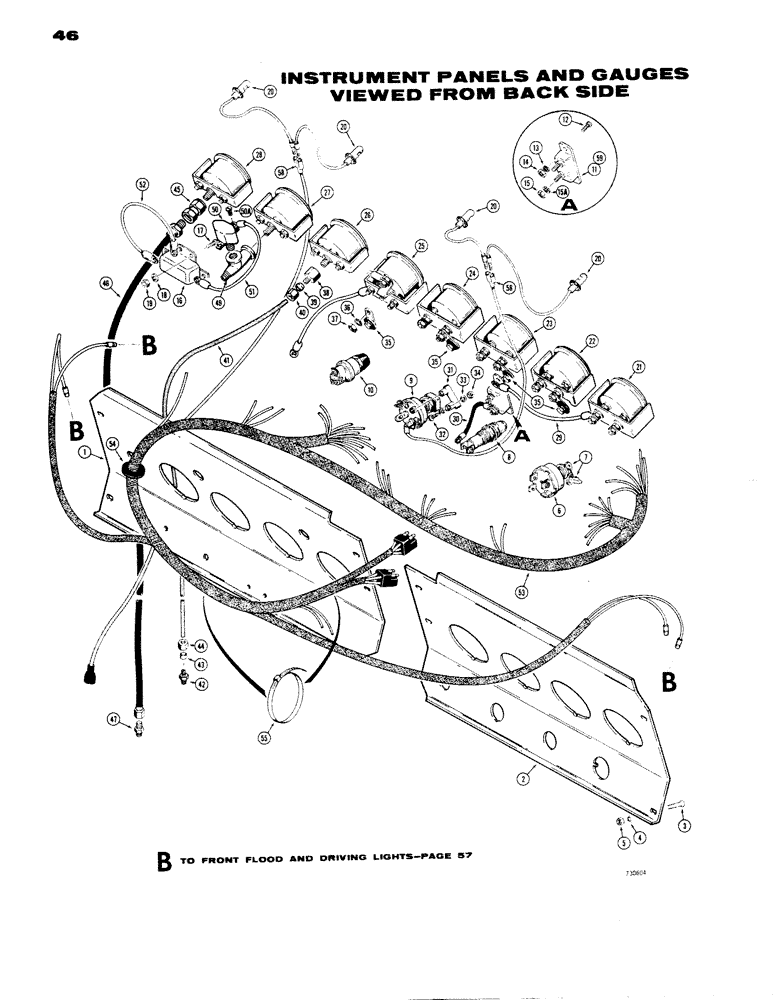

Запчасти Case W14 (046) - ELECTRICAL SYSTEM (FRONT HARNESS AND INSTRUMENT PANELS) MODELS W/O INSTRUMENT CLUSTER (04) - ELECTRICAL SYSTEMS

1

L53266

PANEL

- instrument, R.H.

1шт.

2

L48119

PANEL

- instrument, L.H.

1шт.

3

182-527

SCREW,Sl Pan Hd, 1/4" - 20 x 5/8"

- truss head, 1/4" - 20 NC x 5/8", plated

8шт.

4

193-60

LOCK WASHER,Int Tooth, 1/4"

WASHER, LOCK, Int Tooth, 1/4"

8шт.

5

131-120

NUT

- hex, 1/4" - 20 NC, outer

8шт.

6

L17820

SWITCH

- ignition, Includes: Ref. 6A and 7

1шт.

6a

D77654

NUT - special, not shown

1шт.

7

A20346

KEY

- ignition

1шт.

8

L13282

LAMP BASE

LIGHT - ignition indicator, parts list Figure 056

1шт.

9

L10376

SWITCH

- light

1шт.

10

A30858

SWITCH

- starting aid, push button

1шт.

11

L11342

BREAKER

- circuit, 25 amp

1шт.

12

182-510

SCREW,Sl Pan Hd, #8 - 32 x 1/2"

RHMS - No. 8-32 NC x 1/2"

2шт.

13

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

2шт.

14

129-16

NUT,#8-32

2шт.

15

129-37

NUT,#10-32

2шт.

15a

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

16

L103669

BUZZER

- warning, air pressure (replaces L15056 )

1шт.

17

182-527

SCREW,Sl Pan Hd, 1/4" - 20 x 5/8"

- truss head, 1/4" - 20 NC x 5/8"

2шт.

18

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

19

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

20

L13275

LAMP

LIGHT - instrument panel, parts list Figure 056

4шт.

21

L13279

METER

GAUGE - voltmeter

1шт.

22

A19346

ELECTRICAL GAUGE

GAUGE - pressure, engine oil

1шт.

23

A19347

ELECTRICAL GAUGE

GAUGE - engine temperature 2 terminal, use L74121 and L74218

1шт.

PUT A REDUCER(3/4" TO 1/2" NPTF)AND THEN PUT IN NEW SENDER.

1шт.

REF.23 - GAUGE USED A SENDING UNIT WITH 3/8"NPTF LOCATED IN THE CYL.HEAD.L74121 NOW SUBS TO D78516 GAUGE AND A21462 SENDING UNIT WHICH HAS 1/2" NPTF THREAD.CUSTOMER MUST PUT A 3/8"PIPE PLUG IN THE CYL HOLE WHERE OLD SENDING UNIT WAS.THE NEW 1/2" NPTF SENDER IS TO BE PUT IN THE WATER MANIFOLD NOW.USE THE 3/4" HOLE IN MANIFOLD

1шт.

23

L74121

GAUGE

- engine temperature

1шт.

A65588

SENDER UNIT

SENDING UNIT - H18347 Gauge, not shown

1шт.

L74218

SENDER UNIT

SENDING UNIT - L74121 Gauge, not shown

1шт.

24

A19345

ELECTRICAL GAUGE

GAUGE - fuel level

1шт.

25

L51460

ELECTRICAL GAUGE

GAUGE - temperature, converter oil

1шт.

26

A56447

ELECTRICAL GAUGE

GAUGE - pressure, converter

1шт.

27

L12141

ELECTRICAL GAUGE

GAUGE - air pressure

1шт.

28

L13271

ELECTRICAL GAUGE

GAUGE - pressure, hydraulic pump inlet

1шт.

29

A18311

ELECTRICAL WIRE

WIRE - ground, voltmeter

1шт.

30

L13283

ELECTRICAL WIRE

WIRE - ground, circuit breaker to ignition indicator

1шт.

31

A14900

RESISTOR

- light switch

1шт.

32

182-513

SCREW,Sl Pan Hd, #6 - 32 x 1/4"

RHMS - No. 6 - 32 NC x 1/4"

1шт.

33

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

Washer, Lock, #6

1шт.

34

129-15

NUT,#6-32

1шт.

35

A19349

RESISTOR

- electrical gauges, 75 ohm

4шт.

36

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

37

129-37

NUT,#10-32

4шт.

38

222-5150

FITTING,3/8"-24 x 1/8" NPT, Hi-seal

CONNECTOR ASSEMBLY - straight female, Flex type, Includes: Ref. 39 and 40

1шт.

39

222-5045

SLEEVE,1/8" Tube

- connector

1шт.

40

222-5058

NUT,3/8"-24

NUT - connector

1шт.

41

L47270

TUBE,0.078" ID x 0.125" OD x 105" L

- converter pressure gauge to transmission

1шт.

42

222-5000

HYD CONNECTOR,3/8"-24 x 1/8" NPT, Hi-seal

CONNECTOR ASSEMBLY - straight, Flex type, Includes: Ref. 43 and 44

1шт.

43

222-5045

SLEEVE,1/8" Tube

- connector

1шт.

44

222-5058

NUT,3/8"-24

NUT - connector

1шт.

45

218-915

HYD CONNECTOR,Sw, 1/8" NPT Fem x 1/8" NPSM Fem

UNION - adapter, hydraulic pump inlet pressure gauge to hose

1шт.

46

L14389

HOSE

- union to hydraulic pump

1шт.

47

222-807

HYD CONNECTOR,1/2"-20, 45 Degree Fl x 1/4" NPT

ADAPTER - straight, oil pressure gauge hose

1шт.

48

RESERVED

1шт.

49

221-1421

TEE,Pipe, 1/8" NPT

- pipe (1/8" NPT)

1шт.

50

L48480

SWITCH

- air pressure buzzer

1шт.

50a

173-73

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

RHMS - #8 - 32 NC x 1/4"

2шт.

51

A18404

ELECTRICAL WIRE

WIRE -, Serial Range: switch-buzzer

1шт.

52

A31060

ELECTRICAL WIRE

WIRE - ground, buzzer

1шт.

53

L52523

HARNESS

- front and instrument panel wiring

1шт.

54

L53783

GROMMET,1 1/4" ID x 2 3/8" Groove Dia, Str Cut

- harness

1шт.

55

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - harness tie

3шт.

56

L13292

INTERIOR LIGHT

LIGHT - front flood (Parts list Figure 056)

2шт.

57

L13291

LAMP

LIGHT - driving (Parts list Figure 056)

2шт.

58

A8210

CONNECTOR, ELEC

CONNECTOR - electrical, three way female (Bullet)

2шт.

59

D37203

BREAKER

- circuit, 15 amp

1шт.
