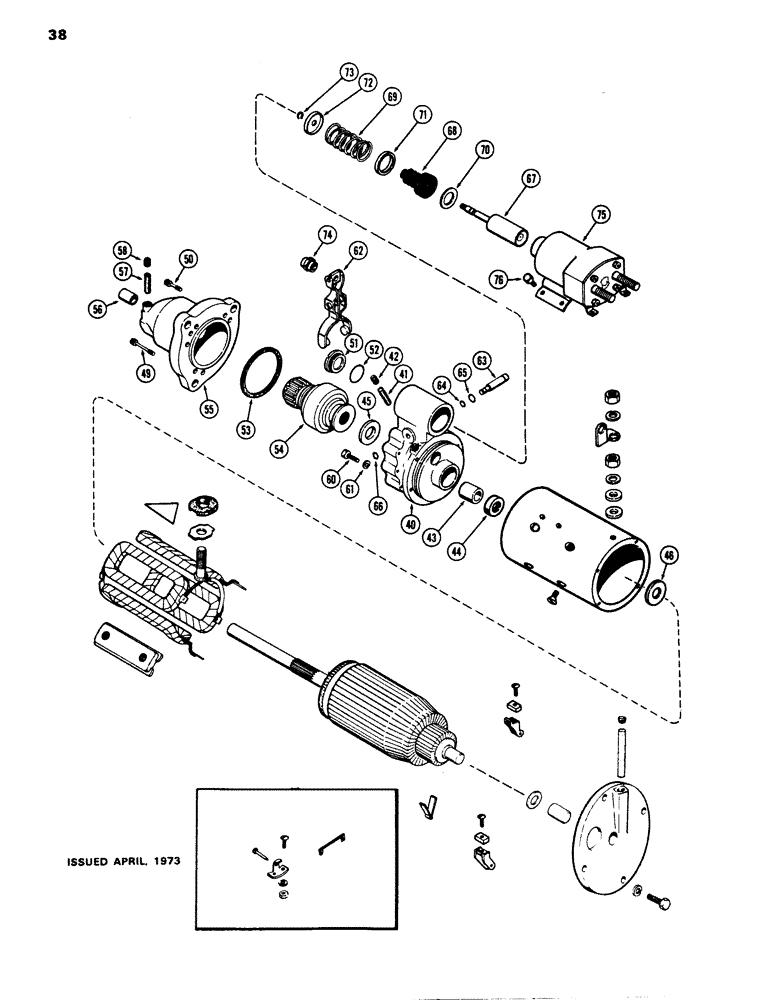

Запчасти Case W14 (038) - R26136 STARTER, (336B) DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

R26136

STARTER MOTOR

STARTER ASSY. - Includes: Ref. 40 - 76 and Ref. 2 - 35 on Figure 36

1шт.

40

R21579

HOUSING

ASSY. - shift lever, Includes: Ref. 41 - 45

1шт.

41

R15023

WICK

- oil

1шт.

42

221-1041

PLUG

- pipe, 1/8" P.T. slotted headless

1шт.

43

R21580

BUSHING

- (13/16 x 1 x 1-1/4")

1шт.

44

R21582

OIL SEAL

- oil (13/16 x 1-3/8 x 13/32")

1шт.

45

R15145

DISC

WASHER - spacer (27/32 x 1-29/32 x 3/16")

1шт.

46

A40892

WASHER

- spacer (27/32 x 1-3/4 x 3/16")

1шт.

49

D32488

HEX SOC SCREW,5/16" - 18 x 1.50"

SCREW - housing (5/16 x 1-1/2" N.C. socket hd.)

1шт.

50

D32489

HEX SOC SCREW,5/16" - 18 x 0.86"

SCREW - housing (5/16 x 7/8" N.C. socket hd.)

1шт.

51

R21587

PLUG

- lever housing

1шт.

52

A41924

GASKET

- rubber (1-3/8 x 1-9/16 x 3/32")

1шт.

53

R21562

GASKET

- drive housing

1шт.

54

A42397

DRIVE

ASSY. - starter pinion

1шт.

55

A40283

HOUSING

ASSY. - pinion drive, Includes: Ref. 56 - 58

1шт.

56

A40893

BUSHING

- (5/8 x 3/4 x 25/32")

1шт.

57

R15023

WICK

- oil

1шт.

58

221-1041

PLUG

- pipe, 1/8" slotted headless

1шт.

60

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

Drive housing Hex, 1/4"-28 x 1", G5

5шт.

61

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

5шт.

62

D32547

LEVER

- drive control

1шт.

63

A42199

PIN

SHAFT - pivot, shift lever

1шт.

64

R21574

O-RING,0.244" ID x 0.391" OD x 0.073"

"O"-RING - shaft (1/4 x 3/8 x 1/16")

1шт.

65

R21573

O-RING,0.369" ID x 0.515" OD x 0.073"

"O"-RING - shaft (3/8 x 1/2 x 1/16")

1шт.

66

G46146

SNAP RING,#37, Ext

Ring, Snap, , lever shaft #37, Ext

1шт.

67

A42309

PLUNGER

- solenoid

1шт.

68

A42308

BOOT

- rubber, plunger

1шт.

69

A41242

SPRING

- plunger

1шт.

70

A41922

WASHER

- spring seat (53/64 x 1-3/8 x 1/32")

1шт.

71

A43380

BACK-UP RING

RETAINER - inner, plunger spring (1-13/64" hole)

1шт.

72

A43419

SEAT

RETAINER - outer, plunger spring (13/32" hole)

1шт.

73

G46146

SNAP RING,#37, Ext

Ring, Snap, , retainer #37, Ext

1шт.

74

A43856

NUT

- lock (5/16" N.F.)

1шт.

75

A42376

SWITCH

SOLENOID ASSY. - (See Figure 040)

1шт.

76

R15159

SCREW,Hex, 1/4" - 20 x 3/8", w/ LW

- solenoid mounting (1/4 x 3/8" N.F. hex.)

4шт.
