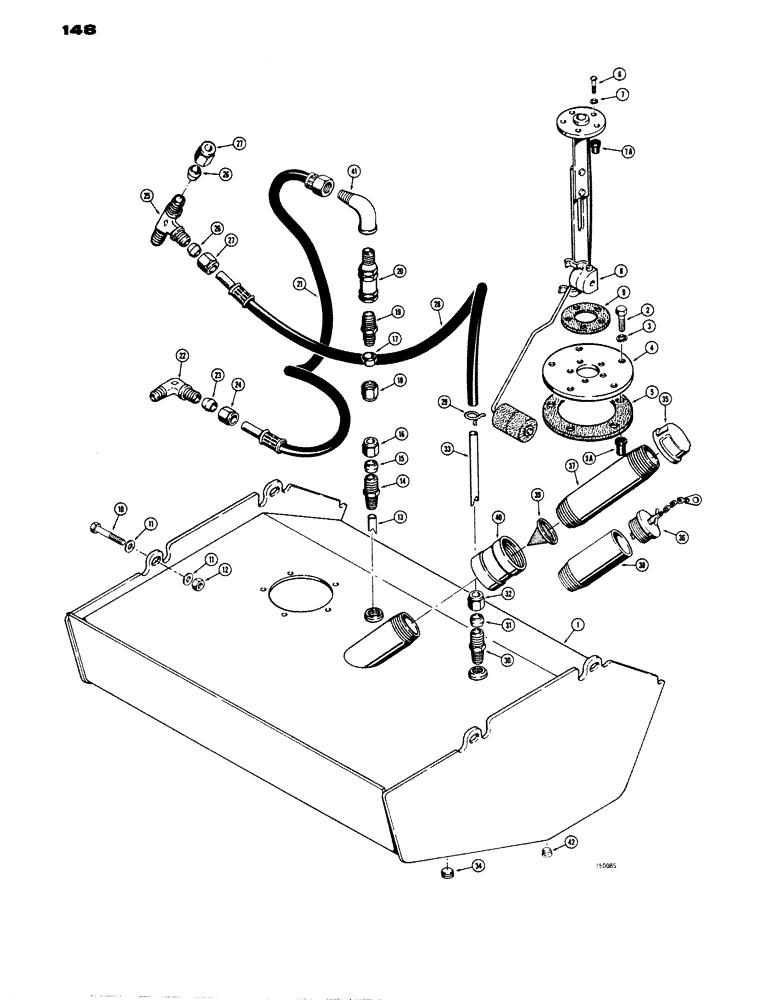

Запчасти Case W14 (148) - FUEL TANK AND RELATED PARTS, MODELS WITHOUT ELECTRIC FUEL PUMP (03) - FUEL SYSTEM

L50727

TANK ASSEMBLY - fuel, Models without instrument cluster, Includes: Ref. 1 - 9

1шт.

L58333

TANK

ASSEMBLY - fuel, Models with instrument cluster, Includes: Ref. 1 - 9

1шт.

1

NSS

NOT SOLD SEPARAT

TANK - fuel

1шт.

2

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

5шт.

3

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

5шт.

3a

L13176

NUT

RIVNUT

5шт.

4

L13193

LARGE PLATE

PLATE ASSEMBLY - hand hole cover

1шт.

5

L13195

GASKET

- hand hole cover

1шт.

6

182-532

SCREW,Sl Pan Hd, #10 - 32 x 3/4"

RHMS - #10 - 32 NC x 3/4" (replaces 173-240 )

5шт.

7

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

5шт.

7a

L13194

NUT

RIVNUT

5шт.

8

L55039

UNIT

SENDING UNIT - L50727 fuel tank (12V stamped on top), Includes: Ref. 9

1шт.

8

L57177

TRANSMITTER

SENDING UNIT - L58333 fuel tank (90 ohms stamped on housing), Includes: Ref. 9

1шт.

REF#8 & 8A-VENDOR REMOVED STAMPED INFORMATION ON BOTH PARTS

1шт.

9

A11822

GASKET

- fuel sending unit

1шт.

10

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

4шт.

11

R24323

WASHER

- hardened

8шт.

12

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

4шт.

13

L50732

FUEL TUBE

TUBE - ASSEMBLY - fuel intake

1шт.

222-638

FITTING,9/16"-24 x 3/8" NPT, Comp

ASSEMBLY - straight male, tube, Includes: Ref. 14 - 16

1шт.

14

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

15

222-654

FERRULE,3/8" Tube, Comp

- fitting

1шт.

16

222-664

TUBE NUT,9/16"-24, 45 Degree Fl, Comp

NUT - fitting

1шт.

17

218-363

SLEEVE,37 Degree, 3/8" Tube

- 3/8" tube

1шт.

18

218-343

TUBE NUT,37 Degree, 9/16"-18, Type B

NUT - 3/8" tube

1шт.

19

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

CONNECTOR - straight, male

1шт.

20

L17627

VALVE

CHECK VALVE - fuel

1шт.

21

L50706

HOSE

- check valve to primary filter

1шт.

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

ASSEMBLY - tube, 90 degree, Includes: Ref. 22 - 24

1шт.

22

NSS

NOT SOLD SEPARAT

BODY - elbow

1шт.

23

222-104

SLEEVE,3/8" Tube

- elbow

1шт.

24

222-114

NUT,5/8"-24

NUT - elbow

1шт.

222-642

TEE,3/8"-24 x 1/8" NPT Run x 3/8"-24 BR

ASSEMBLY - male, Includes: Ref. 25 - 27

1шт.

25

NSS

NOT SOLD SEPARAT

BODY - tee

1шт.

26

222-102

SLEEVE,1/4" Tube

Tee 1/4" Tube

2шт.

27

87017024

TUBE NUT,1/2"-24

NUT - tee

2шт.

28

L48042

HOSE

- fuel return

1шт.

29

214-102

HOSE CLAMP,#7, 7/16", Spring

CLAMP - self-tightening

1шт.

222-639

FITTING,7/16"-24 x 1/4" NPT, Comp

ASSEMBLY - tube, fuel return, Includes: Ref. 30 - 32

1шт.

30

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

31

222-102

SLEEVE,1/4" Tube

1шт.

32

87017024

TUBE NUT,1/2"-24

NUT - fitting

1шт.

33

L50733

TUBE,0.25" OD x 13.7" L

- fuel return

1шт.

34

221-35

DRAIN PLUG,Sq Soc, 3/4"-14 NPTF

PLUG - square socket head (3/4")

1шт.

35

L47929

CAP

- fuel tank, threaded iron (When stock is exhausted, order L53399 cap for service)

1шт.

36

L53399

CAP

- fuel tank (Rubber stopper type with "T" handle)

1шт.

37

L50708

PIPE

- filler extension (When stock is exhausted, order L53397 pipe and L53399 stopper type cap for service)

1шт.

38

L53397

PIPE

- afiller extension (Use with L53399 stopper type cap for service only)

1шт.

39

L52650

STRAINER ELEMENT

STRAINER - fuel

1шт.

40

221-733

FITTING

COUPLING - pipe (replaces 221-1732)

1шт.

41

221-412

ELBOW,90 Degree, 1/4"-27, NPT

- street, 90 degree (1/4" NPT)

1шт.

42

221-24

DRAIN PLUG,Sq Soc, 1/2"-14 NPTF

PLUG - pipe, square socket head (1/2" NPT)

2шт.
