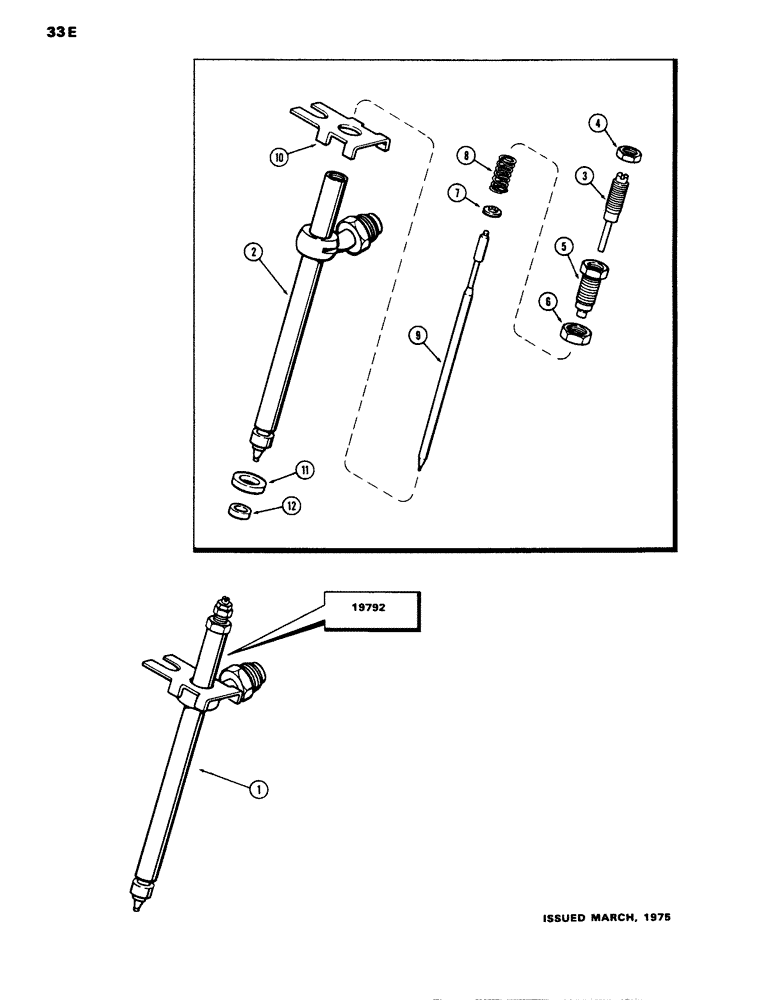

Запчасти Case W14 (033E) - A64439 FUEL INJECTION NOZZLE, (336 BD) DIESEL ENGINE (03) - FUEL SYSTEM

1

A64439

NOZZLE CAP

NOZZLE ASSY. - injector (Stanadyne #19792 and yellow paint color code), Includes: Ref. 2 - 12

1шт.

WHENEVER NOZZLE IS REMOVED FROM HEAD, SEAL (A41402) and WASHER (A41403) MUST BE REPLACED BEFORE NOZZLE IS INSTALLED BACK IN HEAD.

1шт.

A140830R

REMAN-INJECT NOZZLE

W14 (NORTH AMERICA) PRIOR TO S/N 9119672, Reman for new PN A64439

1шт.

A140830C

CORE-NOZZLE, INJECT

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - nozzle

1шт.

3

A43599

ADJUSTMENT SCREW,#10 - 56 x 1.39"

SCREW - lift adjusting

1шт.

4

A43602

NUT

- lock, lift adjusting screw

1шт.

5

A43600

ADJUSTMENT SCREW,#10 - 56 x 0.68"

SCREW - pressure adjusting

1шт.

6

A42424

LOCK NUT

- lock, pressure adjusting screw

1шт.

7

A41401

SEAT

- spring

1шт.

8

A43733

SPRING

- pressure adjusting (9/16" free length w/red stain)

1шт.

9

NSS

NOT SOLD SEPARAT

VALVE - nozzle

1шт.

10

A41768

PLATE

- nozzle locating

1шт.

11

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- plain

1шт.

12

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop

1шт.
