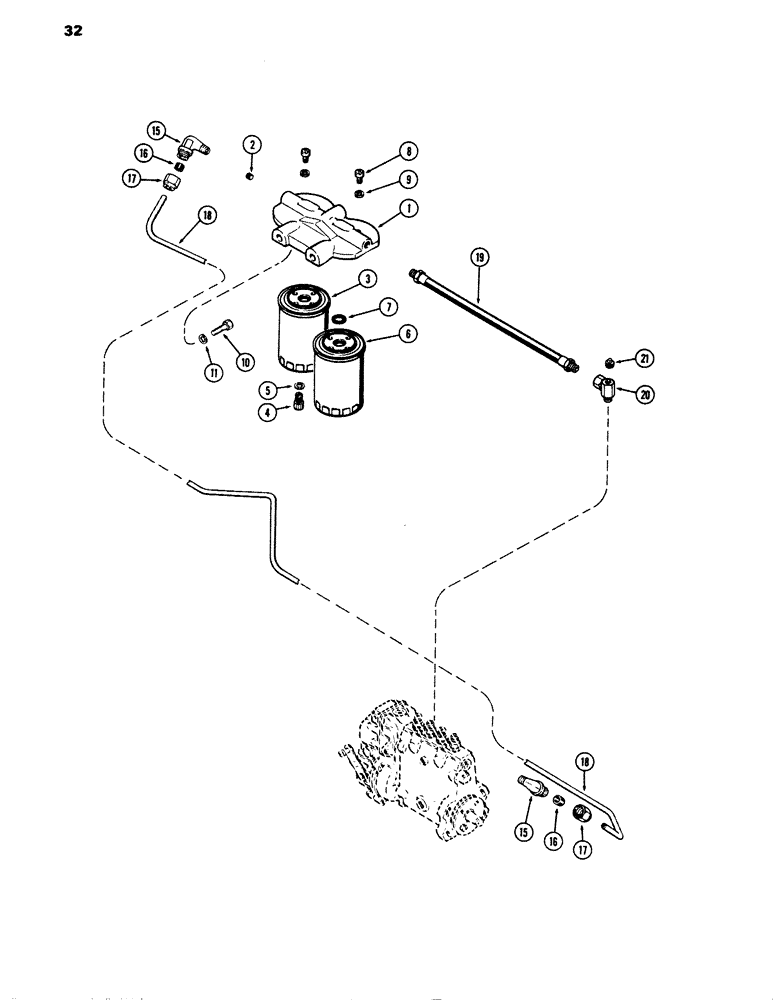

Запчасти Case W14 (032) - FUEL FILTER SYSTEM, (336B) DIESEL ENGINE (03) - FUEL SYSTEM

1

A62339

HEAD

ASSY. - fuel filter, Includes: Ref. 2

1шт.

2

221-41

PLUG

- (1/8" P.T., sltd. hd.)

1шт.

CASA41745

FUEL FILTER

ELEMENT KIT - filter replacement, Includes: Ref. 3 - 7

1шт.

3

NSS

NOT SOLD SEPARAT

FILTER ASSY. - 1st stage, Includes: Ref. 4 and 5

1шт.

4

G49080

PLUG

- filter drain (3/8"-24, 12pt. hd., plastic)

1шт.

5

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk - Plug

1шт.

6

NSS

NOT SOLD SEPARAT

FILTER ASSY. - 2nd stage, Includes: Ref. 7

1шт.

7

A42315

GASKET

-, Serial Range: filter-head

1шт.

8

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

- bleed (#10-32 x 5/16" fill. hd.)

2шт.

9

A66619

WASHER

- bleed screw (3/16 x 3/8 x 1/16") (Replaces A20662)

2шт.

10

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

11

92-6

LOCK WASHER,3/8"

2шт.

15

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

ASSY. - filter tube, Includes: Ref. 16 and 17

2шт.

16

222-103

SLEEVE,5/16" Tube

1шт.

17

222-113

TUBE NUT,9/16"-24

NUT - for 5/16" tube

1шт.

18

A62341

TUBE

- pump to 1st stage filter

1шт.

19

A58774

HOSE,19.05mm ID x 254mm L, SAE 100R6

- 2nd stage, Serial Range: filter-pump

1шт.

20

A20539

FITTING

UNION - hose

1шт.

21

222-1011

HYD CONNECTOR,3/8"-24 Inv Fl x 1/8" NPT

PLUG - union (1/8" P.T., sq. hd.)

1шт.
