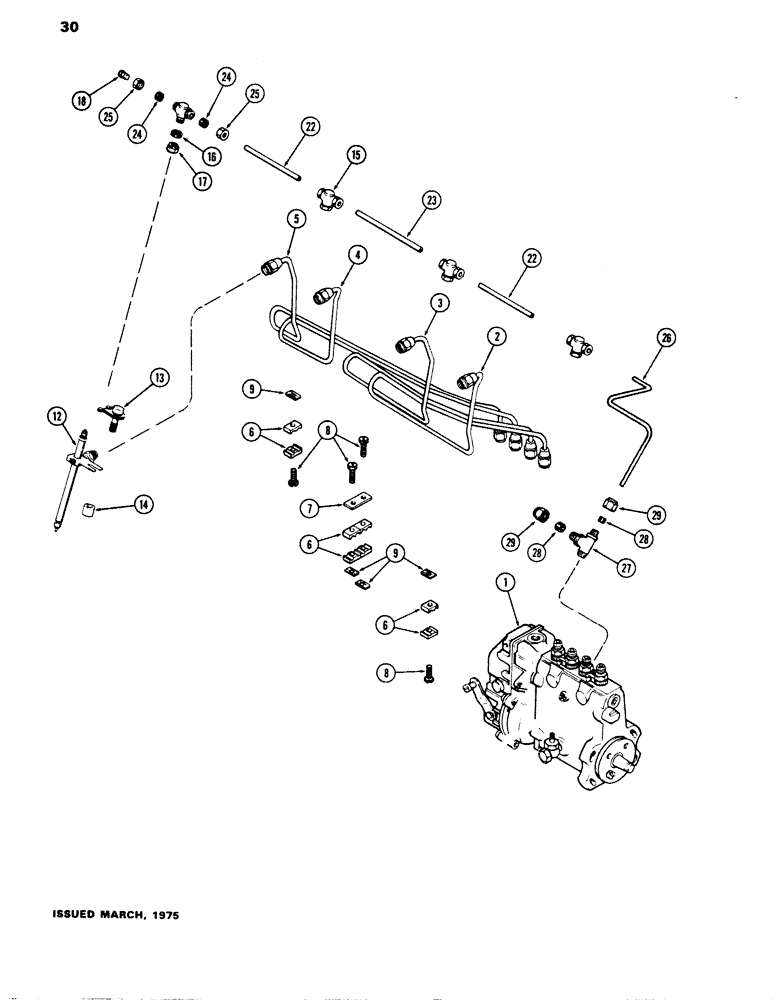

Запчасти Case W14 (030) - FUEL INJECTION SYSTEM, (336 BD) DIESEL ENGINE (03) - FUEL SYSTEM

1

REF

INSTRUCTION

PUMP ASSY - fuel injection (See Figures 033A and 033C)

1шт.

2

A58702

TUBE

ASSY - fuel injection, No. 1 cylinder

1шт.

3

A58703

TUBE

ASSY - fuel injection, No. 2 cylinder

1шт.

4

A58704

TUBE

ASSY - fuel injection, No. 3 cylinder

1шт.

5

A58705

TUBE

ASSY - fuel injection, No. 4 cylinder

1шт.

6

A58709

BRACKET

CLAMP - injection tubes

8шт.

7

A58710

PLATE

Clamp support

1шт.

8

163-19

SCREW,Sl Hex Wshr Hd, #10 - 24 x 1"

Clamp

4шт.

9

131-612

SPRING NUT,Flat, #10 - 24, 0.022" Thk

4шт.

12

REF

INSTRUCTION

NOZZLE ASSY. - fuel injector (See Figure 33F)

4шт.

13

A58695

CLAMP

ASSY. - nozzle

4шт.

14

A58696

SPACER

SPACER - nozzle clamp

4шт.

15

A58960

TEE,1/2" - 25 NPT x 1/2" - 25 NPT x 9/16" - 24 NPT

TEE - injection nozzles & leak-off lines

4шт.

16

A58962

GROMMET,9.14mm ID x 12.82mm OD x 5.28mm Thk

Tee

4шт.

17

A58961

NUT

Tee

4шт.

18

47-47

RIVET,FH, 1/4" x 7/16"

PLUG - tee

1шт.

22

A58965

TUBE

Leak-off (4-5/8" long)

2шт.

23

A58964

TUBE

Leak-off (5-5/8" long)

1шт.

24

222-102

SLEEVE,1/4" Tube

8шт.

25

87017024

TUBE NUT,1/2"-24

For 1/4" tube

8шт.

26

A58963

TUBE

Leak-off, No. 1, Serial Range: nozzle-pump

1шт.

27

A59097

VALVE

ASSY - check (one way valve), Includes Ref. 28 and 29

1шт.

28

222-102

SLEEVE,1/4" Tube

2шт.

29

87017024

TUBE NUT,1/2"-24

For 1/4" tube

2шт.
