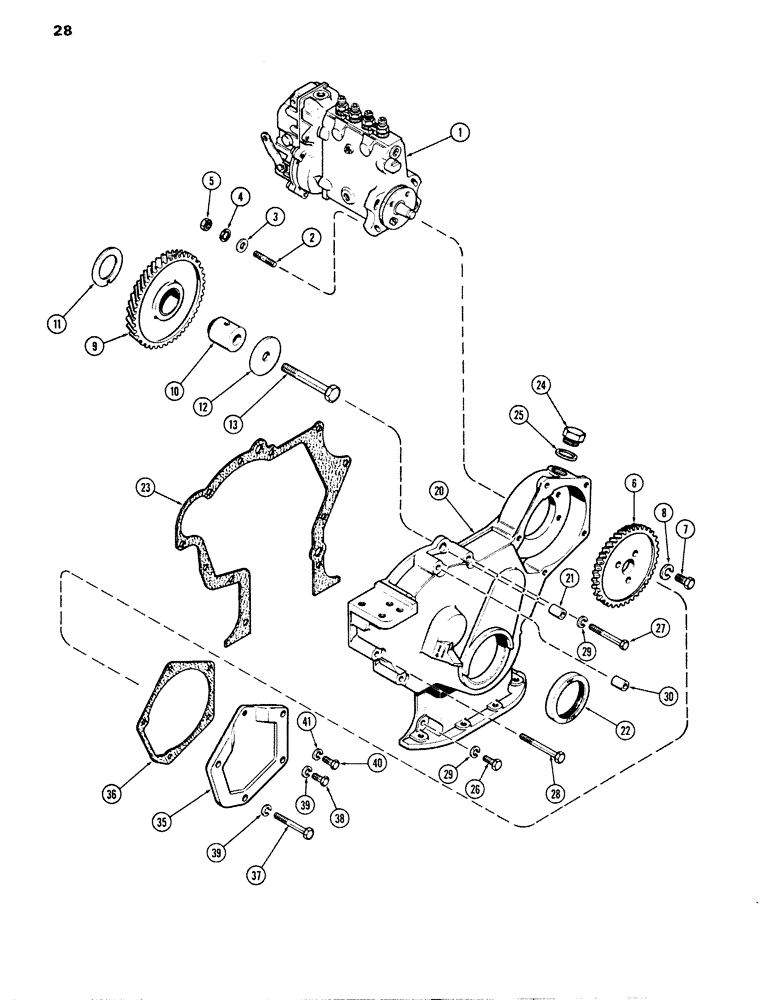

Запчасти Case W14 (028) - INJECTION PUMP DRIVE, (336 BD) DIESEL ENGINE, TIMING GEAR (03) - FUEL SYSTEM

1

REF

INSTRUCTION

PUMP ASSY - fuel injection (See Figures 033A and 033C)

1шт.

2

A58689

STUD

Pump mounting (3/8" N.C. x 1-7/8")

4шт.

3

A57470

WASHER

(13/32 x 11/16 x 16 ga.)

4шт.

4

193-30

LOCK WASHER,Int Tooth, 3/8"

4шт.

5

25-106

NUT,3/8"-16, G5

4шт.

6

A58693

GEAR

Injection pump drive

1шт.

7

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

8

92-6

LOCK WASHER,3/8"

3шт.

9

A62542

GEAR

ASSY. - idler, w/bushing

1шт.

10

A58690

SHAFT

Idler gear

1шт.

11

A58691

WASHER

Thrust, idler shaft

1шт.

12

A58692

PLATE

Thrust, idler shaft

1шт.

13

13-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

1шт.

20

A58609

COVER

ASSY - timing gear, Includes Ref. 21

1шт.

21

A58611

PIN

Dowel, cover locating, timing gear cover

2шт.

22

A62049

OIL SEAL

Oil, crankshaft, front (2-5/8 x 3-5/8 x 1/2"), timing gear cover

1шт.

23

A58612

GASKET

Cover, timing gear

1шт.

24

21140

PLUG - timing window, timing gear cover

1шт.

25

A58613

SEALING WASHER

Timing window plug, timing gear cover

1шт.

26

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Timing gear cover

4шт.

27

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

Timing gear cover

2шт.

28

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

Timing gear cover

2шт.

28

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

Timing gear cover

1шт.

29

92-6

LOCK WASHER,3/8"

Timing gear cover

9шт.

30

A19774

BUSHING

SPACER - alternator pry point, timing gear cover

1шт.

35

A61053

COVER

Fuel pump, timing gear

1шт.

36

A58615

GASKET

Cover, timing gear

1шт.

37

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

Timing gear cover

2шт.

38

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Timing gear cover

2шт.

39

92-6

LOCK WASHER,3/8"

Timing gear cover

4шт.

40

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Timing gear cover

1шт.

41

92-5

LOCK WASHER,5/16"

Timing gear cover

1шт.
