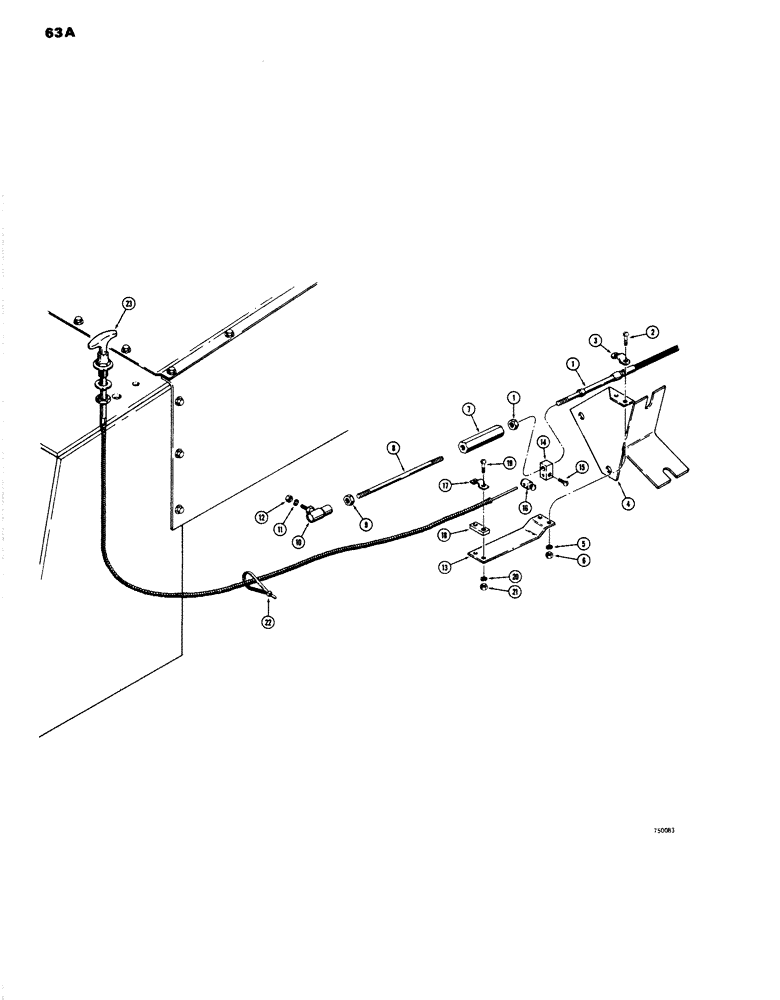

Запчасти Case W14 (063A) - HAND THROTTLE AND LINKAGE, BACKHOE MODELS (02) - ENGINE

1

REF

INSTRUCTION

CABLE ASSEMBLY - throttle

1шт.

2

177-100

SCREW,Sl Fil Hd, #10 - 32 x 3/4"

Slotted fillister head (#10 - 32 NF x 3/4")

2шт.

3

L12441

CLAMP

Accelerator cable

1шт.

4

L52967

BRACKET

Throttle cable mounting

1шт.

5

92-3

LOCK WASHER,#10

2шт.

6

129-37

NUT,#10-32

2шт.

7

L14227

CONNECTOR, ELEC

CONNECTOR TURN BUCKLE

1шт.

8

L50805

ROD

Throttle linkage

1шт.

9

129-315

NUT,#10-32, LH

1шт.

10

L12437

BALL JOINT,#10 - 32 x 7/8"

At fuel injection pump

1шт.

11

92-3

LOCK WASHER,#10

1шт.

12

NLS

NO LONGER SERVICED

NUT - hex. (#10 - 32 NF) Zinc plated

1шт.

13

L55168

BRACKET

Backhoe throttle

1шт.

14

L55171

BLOCK

Backhoe throttle

1шт.

15

169-74

SCREW,Fil Hd, #8 - 32 x 5/16"

Fillister head

1шт.

16

L32208

CLAMP

COLLAR - backhoe throttle

1шт.

17

L55170

CLAMP

Throttle rod

1шт.

18

L55169

SPACER

Backhoe throttle

1шт.

19

177-136

SCREW,Sl Fil Hd, #10 - 32 x 3/4"

2шт.

20

92-3

LOCK WASHER,#10

2шт.

21

129-37

NUT,#10-32

2шт.

22

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP Tie (Throttle cable to fuel supply line)

1шт.

23

L55203

CABLE

ASSEMBLY - hand throttle

1шт.
