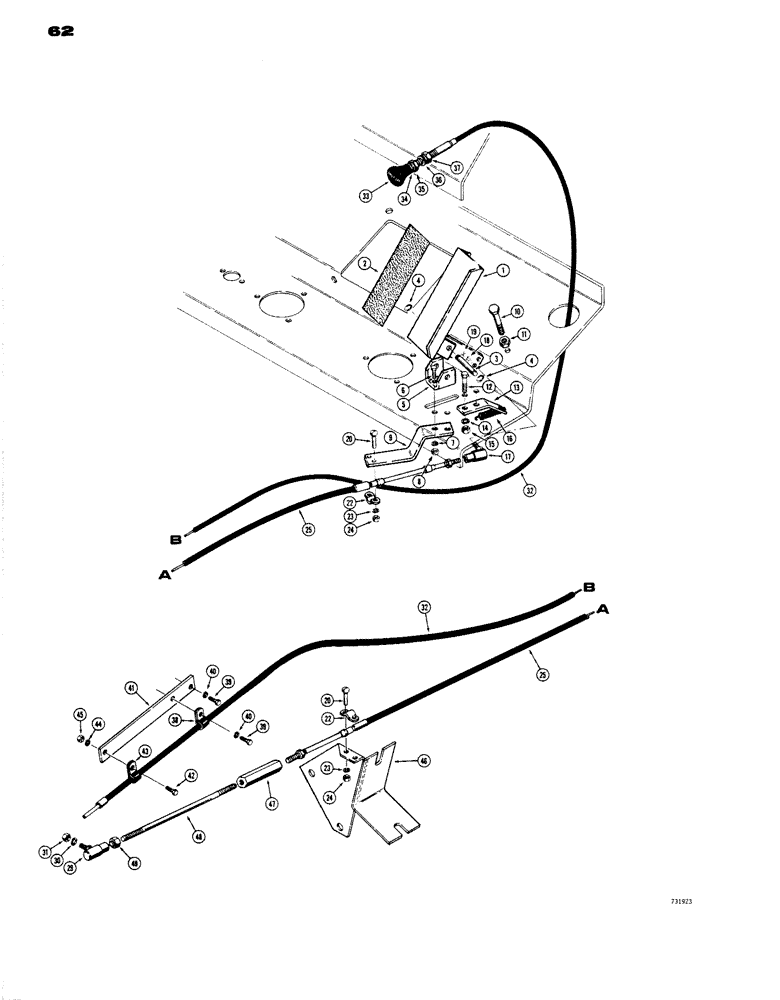

Запчасти Case W14 (062) - *ACCELERATOR AND LINKAGE (02) - ENGINE

1

L48004

PEDAL

- accelerator, foot feed

1шт.

2

L48674

PAD

- accelerator, foot feed

1шт.

3

L48003

PIN

- pedal pivot

1шт.

4

A27795

RING

- snap

2шт.

5

L48002

BRACKET

BLOCK - accelerator pedal mounting

1шт.

6

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

7

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

8

25-104

NUT,1/4"-20, G5

2шт.

9

L48027

BRACKET

- cable mounting, accelerator

1шт.

10

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

HHC - 3/8" NC x 2-1/2"

1шт.

11

25-146

JAM NUT,Jam, 3/8"-16, G5

- hex., jam (3/8" - 16 NC)

1шт.

12

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

13

L48024

BRACKET

- spring return

1шт.

14

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

15

25-104

NUT,1/4"-20, G5

2шт.

16

L48104

SPRING

- return, accelerator

1шт.

17

L12437

BALL JOINT,#10 - 32 x 7/8"

JOINT - ball type, accelerator linkage

1шт.

18

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

19

129-37

NUT,#10-32

1шт.

20

177-100

SCREW,Sl Fil Hd, #10 - 32 x 3/4"

- slotted fillister head (#10 - 32 NF x 3/4")

4шт.

21

RESERVED

1шт.

22

L12441

CLAMP

- accelerator cable

2шт.

23

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

24

129-37

NUT,#10-32

4шт.

25

L50792

CABLE

ASSEMBLY - accelerator

1шт.

26

RESERVED

1шт.

27

RESERVED

1шт.

28

RESERVED

1шт.

29

L12437

BALL JOINT,#10 - 32 x 7/8"

JOINT - ball tyoe, at fuel injection pump

1шт.

30

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

31

129-37

NUT,#10-32

1шт.

L50793

PLATE

CABLE ASSEMBLY - fuel shut off, Includes: Ref. 32 - 37

1шт.

32

NSS

NOT SOLD SEPARAT

CABLE - shutoff

1шт.

33

L33717

KNOB

HANDLE - cable

1шт.

34

129-141

JAM NUT,Jam, 1/4"-20, G5

(Replaces 219-141) Jam, 1/4"-20, G5

1шт.

35

L32866

SEAL

NUT - special (replaces 129-161)

1шт.

36

193-68

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

37

87016560

JAM NUT,Jam, 3/8"-16, G5

1шт.

38

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- cable, shutoff

1шт.

39

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

40

92-6

LOCK WASHER,3/8"

2шт.

41

50803

BRACKET

- mounting , fuel shut off cable (REAR)

1шт.

42

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

43

66297

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

- cable

1шт.

44

92-6

LOCK WASHER,3/8"

1шт.

45

25-106

NUT,3/8"-16, G5

- hex (3/8" - 16 NC )

1шт.

46

L52967

BRACKET

- throttle cable mounting

1шт.

47

L14227

CONNECTOR, ELEC

TURN BUCKLE

1шт.

48

L50805

ROD

- throttle linkage

1шт.

49

129-315

NUT,#10-32, LH

1шт.
