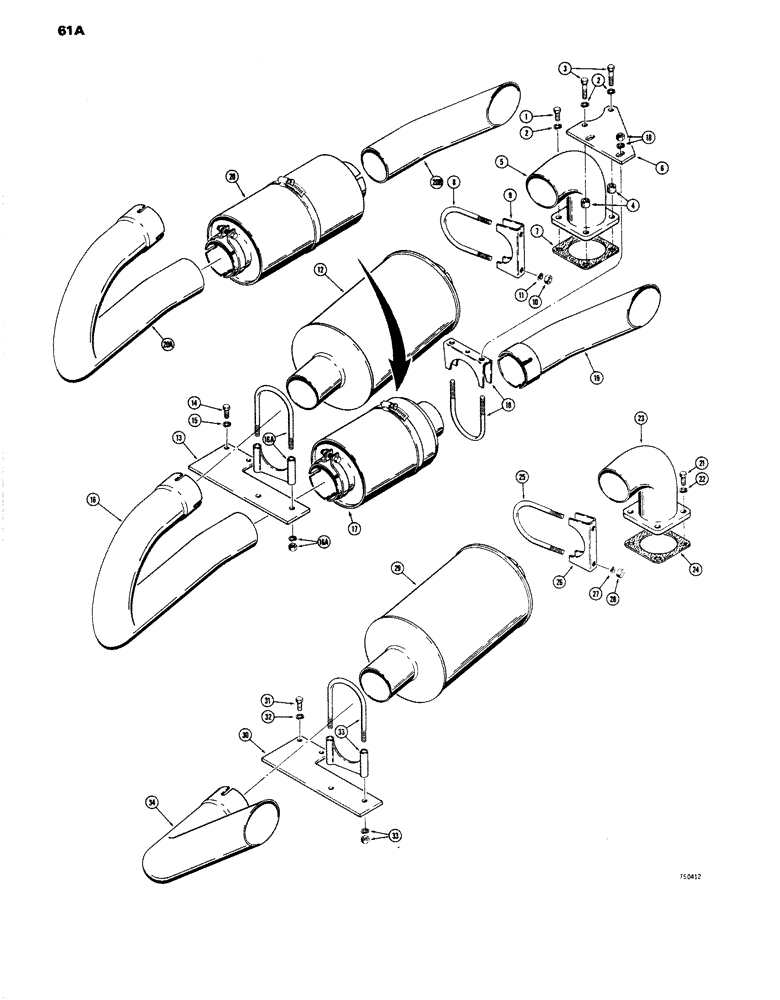

Запчасти Case W14 (061A) - STANDARD AND SPARK ARRESTING MUFFLERS, BACKHOE MODELS ONLY (02) - ENGINE

1

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

2

92-6

LOCK WASHER,3/8"

4шт.

3

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2

2шт.

4

T34907

SPACER

- bracket mounting

2шт.

5

L50751

ADAPTER

- exhaust, Serial Range: manifold-muffler

1шт.

6

L57351

BRACKET

- spark arresting muffler attaching

1шт.

7

L14218

MANIFOLD GASKET

- adapter to exhaust manifold

1шт.

8

L19083

U-BOLT

"U"BOLT - muffler clamping

1шт.

9

L19084

SADDLE

- muffler clamping

1шт.

10

92-5

LOCK WASHER,5/16"

2шт.

11

9635082

NUT,5/16" - 18, Gr 5

- hex (5/16" - 18 NC)

2шт.

12

L46279

MUFFLER

- exhaust, standard

1шт.

13

L52377

SUPPORT

BRACKET - muffler mounting

1шт.

14

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

15

92-6

LOCK WASHER,3/8"

2шт.

16

L57348

PIPE

- L41692 spark arrestor extension

1шт.

When replacing Ref. 16, 17 or 19; order L52686 spark arrestor, L72073 pipe and L72270 exhaust stack. Must use these parts on machines with backhoes.

1шт.

16a

L52853

CLAMP

ASSEMBLY - muffler

1шт.

17

L41692

ARRESTER

SPARK ARRESTOR ASSEMBLY - 12" long

1шт.

When replacing Ref. 16, 17 or 19; order L52686 spark arrestor, L72073 pipe and L72270 exhaust stack. Must use these parts on machines with backhoes.

1шт.

18

L14222

CLAMP,79.25mm ID

ASSEMBLY - includes hardware

1шт.

19

L57358

PIPE

STACK - exhaust, L41692 spark arrestor

1шт.

When replacing Ref. 16, 17 or 19; order L52686 spark arrestor, L72073 pipe and L72270 exhaust stack. Must use these parts on machines with backhoes.

1шт.

20

L52686

MUFFLER

SPARK ARRESTOR - 15" long

1шт.

20a

L72073

PIPE

- L52686 spark arrestor extension

1шт.

20b

L72270

PIPE, EXHAUST SYSTEM

STACK - L52686 spark arrestor exhaust

1шт.

21

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Standard mufflers Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

22

92-6

LOCK WASHER,3/8"

standard mufflers 3/8"

4шт.

23

L50751

ADAPTER

- exhaust manfold to muffler, standard mufflers

1шт.

24

L14218

MANIFOLD GASKET

- adapter to exhaust manifold, standard mufflers

1шт.

25

L19083

U-BOLT

"U"BOLT - muffler clamp, standard mufflers

1шт.

26

L19084

SADDLE

- muffler clamp, standard mufflers

1шт.

27

92-5

LOCK WASHER,5/16"

standard mufflers 5/16"

2шт.

28

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" -18 NC), standard mufflers

2шт.

29

L46279

MUFFLER

- engine exhaust, standard mufflers

1шт.

30

L52377

SUPPORT

BRACKET - muffler mounting, standard mufflers

1шт.

31

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Standard mufflers Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

32

92-6

LOCK WASHER,3/8"

standard mufflers 3/8"

2шт.

33

L52853

CLAMP

ASSEMBLY - muffler, standard

1шт.

34

L55086

TUBE,3" OD x 9.74, 14.63" L

STACK - engine exhaust (Used on models without spark arresting muffler), standard mufflers

1шт.
