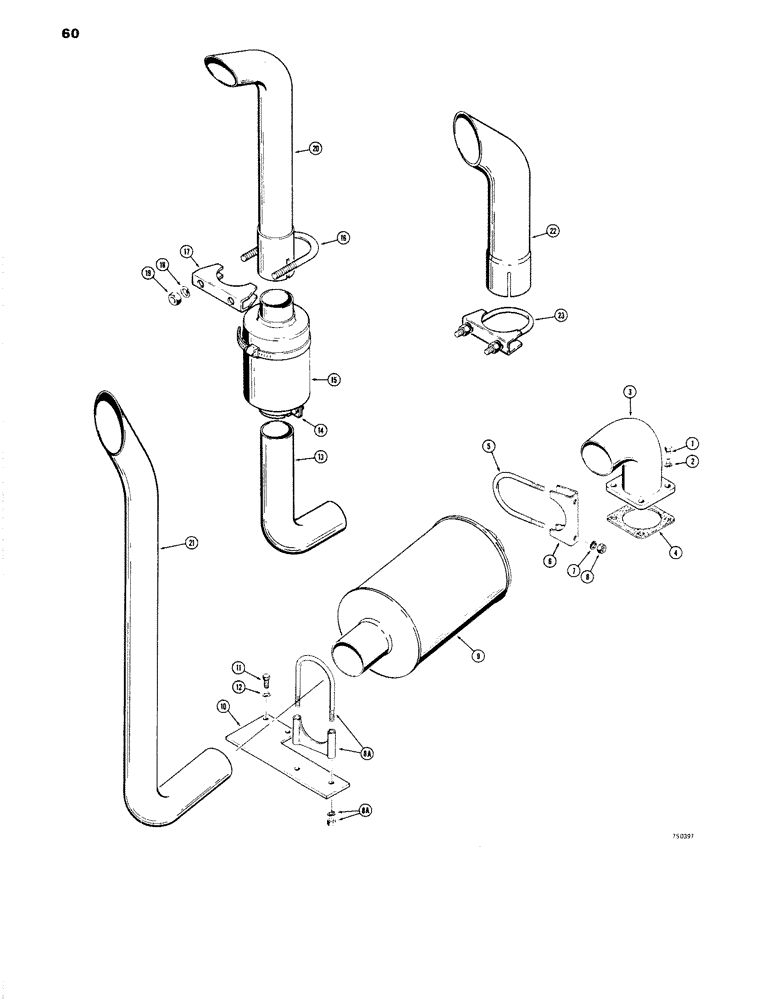

Запчасти Case W14 (060) - STANDARD AND SPARK ARRESTING MUFFLERS, USED ON ALL MODELS EXCEPT BACKHOE (02) - ENGINE

1

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

2

92-6

LOCK WASHER,3/8"

4шт.

3

L50751

ADAPTER

- exhaust, Serial Range: manifold-muffler

1шт.

4

L14218

MANIFOLD GASKET

- adapter to exhaust manifold

1шт.

5

L19083

U-BOLT

"U"BOLT - muffler clamping

1шт.

6

L19084

SADDLE

- muffler clamping

1шт.

7

92-5

LOCK WASHER,5/16"

2шт.

8

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

2шт.

8a

L52853

CLAMP

ASSEMBLY -muffler

1шт.

9

L46279

MUFFLER

- engine exhaust

1шт.

10

L52377

SUPPORT

BRACKET - muffler mounting

1шт.

11

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

12

92-6

LOCK WASHER,3/8"

2шт.

13

L51828

TUBE

- standard muffler to spark arresting muffler

1шт.

L41692

ARRESTER

MUFFLER ASSEMBLY - spark arresting

1шт.

14

NSS

NOT SOLD SEPARAT

CLAMP - muffler

1шт.

15

NSS

NOT SOLD SEPARAT

MUFFLER - spark arresting

1шт.

16

L19083

U-BOLT

"U"BOLT - muffler clamping

1шт.

17

L19084

SADDLE

- muffler clamping

1шт.

18

92-5

LOCK WASHER,5/16"

2шт.

19

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" -18 NC)

2шт.

20

L18424

PIPE

STACK - engine exhaust (Used on models with spark arresting muffler)

1шт.

21

L17152

TUBE,2.975" OD

STACK - engine exhaust, 19" high (Standard on models without spark arresting muffler)

1шт.

21

L47988

PIPE, EXHAUST SYSTEM

STACK - engine exhaust (41" high) Service option on models without spark arresting muffler

1шт.

22

L57758

MUFFLER

STACK - exhaust, turbo charged models

1шт.

23

A17851

CLAMP

ASSEMBLY - muffler, includes hardware

1шт.
