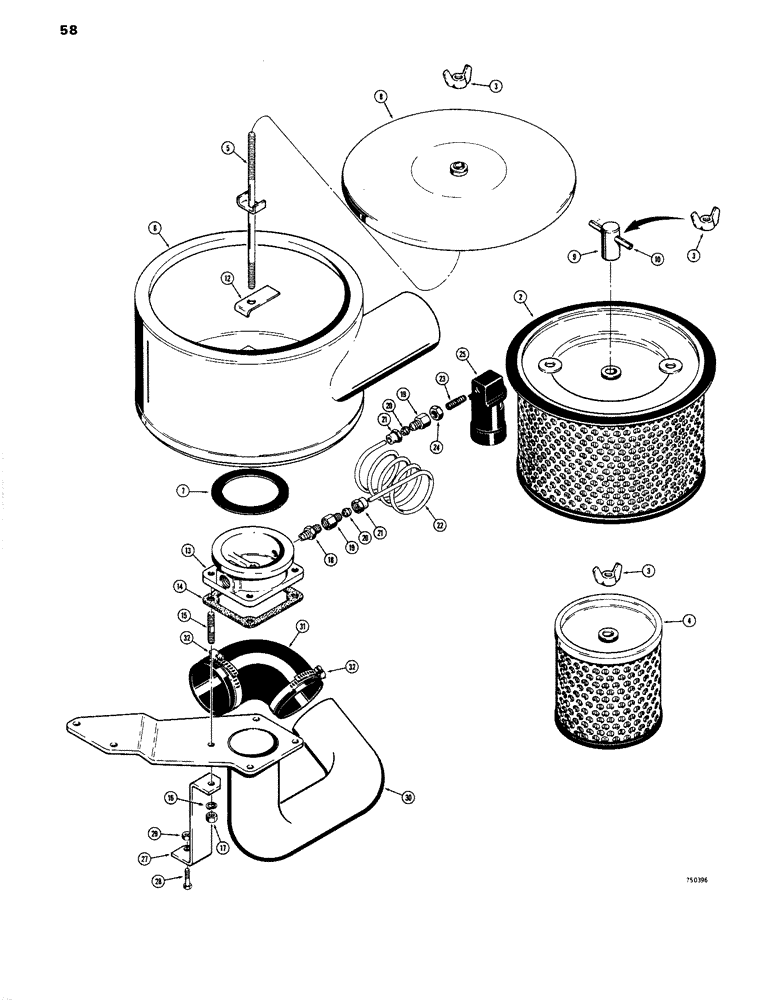

Запчасти Case W14 (058) - AIR CLEANER AND RELATED PARTS (02) - ENGINE

L54055

CLEANER

AIR CLEANER ASSEMBLY - dry type, outer filter top serves as rain cover, Includes: Ref. 1 - 8

1шт.

L77847

AIR CLEANER

ASSEMBLY - dry type, includes separate rain cover, Includes: Ref. 1 - 8

1шт.

1

RESERVED

1шт.

2

A43734

AIR CLEANER

ELEMENT - filter, outer

1шт.

3

129-549

WING NUT,Locking, 3/8"-16

NUT - wing

1-3шт.

4

A43735

AIR CLEANER

ELEMENT - filter, inner

1шт.

5

L35485

BOLT

- special, used with L54055 air cleaner only

1шт.

5

L35984

BOLT

- special, used with L58033 air cleaner only

1шт.

6

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

7

A43736

GASKET

- air cleaner

1шт.

8

L35985

COVER ASSY

COVER - air cleaner, L58033 air cleaner only

1шт.

9

L55318

RETAINER

- air cleaner, L54055 air cleaner only

1шт.

10

138-106

LOCK PIN,3/16" x 2 1/2", Slotted

PIN, , L54055 air cleaner only 3/16" x 2 1/2", Slotted

1шт.

11

RESERVERED

1шт.

12

L53838

LOCK ASSY

LOCK - tab

1шт.

13

L53209

ADAPTER

- air cleaner to intake manifold

1шт.

14

A58910

GASKET

- adapter to intake manifold

1шт.

15

L13023

STUD

- special, 3/8" - 16 NC

4шт.

16

92-6

LOCK WASHER,3/8"

4шт.

17

25-106

NUT,3/8"-16, G5

- hex,3/8" - 16 NC

4шт.

18

D36264

FITTING

CONNECTOR - special

1шт.

222-5150

FITTING,3/8"-24 x 1/8" NPT, Hi-seal

CONNECTOR ASSEMBLY - tube, air cleaner indicator, Includes: Ref. 19 and 20

2шт.

19

NSS

NOT SOLD SEPARAT

BODY - connector

1шт.

20

222-5045

SLEEVE,1/8" Tube

- connector

1шт.

21

222-5058

NUT,3/8"-24

NUT - connector

1шт.

22

D43836

TUBE

- air cleaner indicator, nonturbo charged models

1шт.

23

221-101

PIPE,Nipple, 1/8" NPT x 3/4"

NIPPLE - pipe, L40280 indicator

1шт.

23

222-600

FITTING,5/16"-24 x 1/8 NPT, Comp

- A17652 indicator, not shown

1шт.

24

L13268

LOCK NUT

- special, lock

1шт.

25

L40280

DIPSTICK

INDICATOR - air cleaner restriction, use A17652 indicator and 222-600 fitting

1шт.

25

A17652

ELECTRICAL GAUGE

INDICATOR - air cleaner restriction, not shown

1шт.

26

RESERVED

1шт.

27

L59952

BRACKET

- air cleaner support

1шт.

28

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8"-16NC x 1-1/2"

2шт.

29

131-903

NUT,3/8"-16

NUT - hex, lock, NC 3/8"-16

2шт.

30

L59959

TUBE

- elbow, turbo charged models

1шт.

31

D36262

LARGE HOSE

HOSE - elbow, turbo charged models

1шт.

32

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP- worm screw type

2шт.
