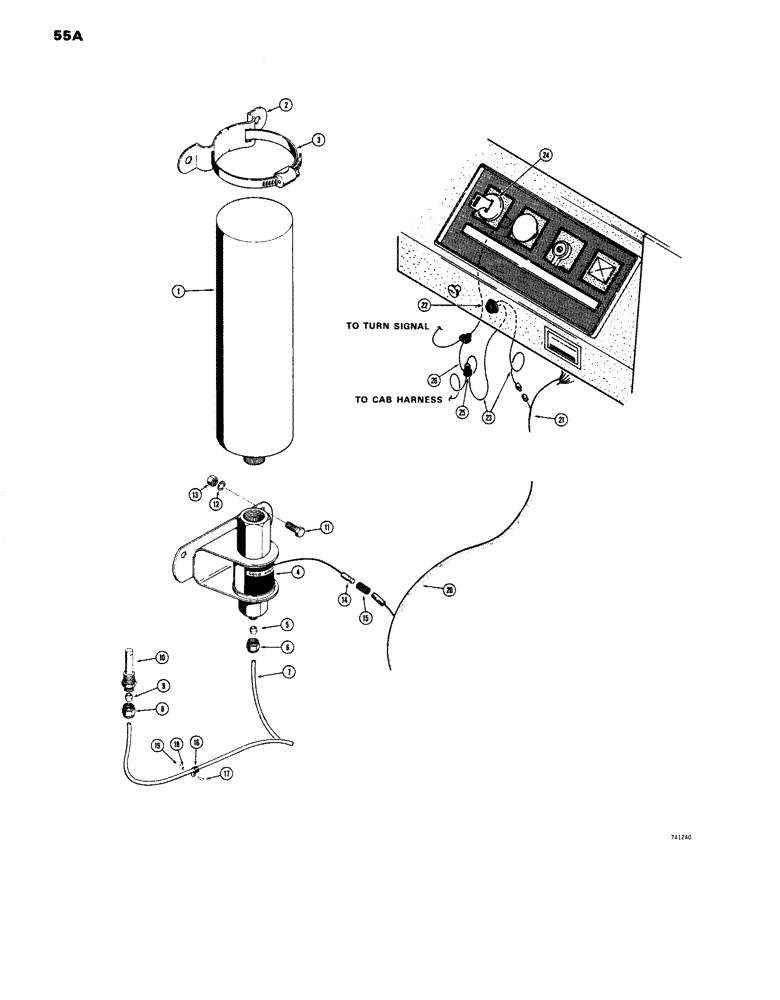

Запчасти Case W14 (055A) - COLD STARTING SYSTEM, MODELS WITH INSTRUMENT CLUSTER (02) - ENGINE
№
Артикул
Название
Примечание
Количество
L53196
START SPRAY FLUID
KIT - cold, Includes: Ref. 1 - 10
1шт.
1
D55767
CYLINDER
Either
1шт.
2
D55949
BRACKET
Clamp mounting
1шт.
3
214-262
HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm
Tank retaining
1шт.
4
L35280
VALVE
ASSEMBLY - actuator, Includes: Ref. 5 and 6
1шт.
5
222-650
SLEEVE,1/8" Tube, Comp
(NPT brass)
1шт.
6
222-660
FLANGE NUT,5/16"-24, 45 Degree Fl, Comp
(1/8" NPT brass)
1шт.
L35283
PACKAGE, REPAIR
SEAL KIT - overhaul repair, includes seals and washer
1шт.
NSS
NOT SOLD SEPARAT
SEAL - "O"ring, cylinder to valve (13/16" I.D.)
1шт.
NSS
NOT SOLD SEPARAT
SEAL - "O"ring, armature (9/32" I.D.)
1шт.
NSS
NOT SOLD SEPARAT
SEAL - "O"ring, retainer fitting (3/4" I.D.)
1шт.
NSS
NOT SOLD SEPARAT
WASHER - bumper, retaining fitting
1шт.
7
L35281
TUBE,0.125" OD x 60" L
Nylon (1/8" O.D. x 60 " long) Cut to length
1шт.
8
222-660
FLANGE NUT,5/16"-24, 45 Degree Fl, Comp
(1/8" NPT brass)
1шт.
9
222-650
SLEEVE,1/8" Tube, Comp
(NPT brass)
1шт.
10
L35282
JET
NOZZLE - manifold
1шт.
11
13-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd
HHCS - 1/4" - 20 NC x 3/4"
4шт.
12
92-4
LOCK WASHER,1/4"
4шт.
13
25-104
NUT,1/4"-20, G5
4шт.
14
L10051
TERMINAL CONNECTOR,Male
bullet (156" dia.) Male
1шт.
15
L11779
TUBE,0.187" ID x 0.187" OD x 1" L
INSULATOR - connector
1шт.
16
80049853
YOKE
Wiring
2шт.
17
13-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd
2шт.
18
92-6
LOCK WASHER,3/8"
2шт.
19
25-106
NUT,3/8"-16, G5
2шт.
20
L57938
ELECTRICAL WIRE
SPARE PART HARNESS - rear
1шт.
21
L57523
HARNESS
SPARE PART Front
1шт.
22
A30858
SWITCH
STARTING SWITCH - push button type, cold start
1шт.
23
A18112
ELECTRICAL WIRE
WIRE Jumper, push button switch
2шт.
24
REF
INSTRUCTION
SWITCH - ignition (Includes wire and 3-way connector)
1шт.
25
A8210
CONNECTOR, ELEC
CONNECTOR 3-way
1шт.
26
L58674
ELECTRICAL WIRE
WIRE Jumper
1шт.
Выбрано товаров: 32
