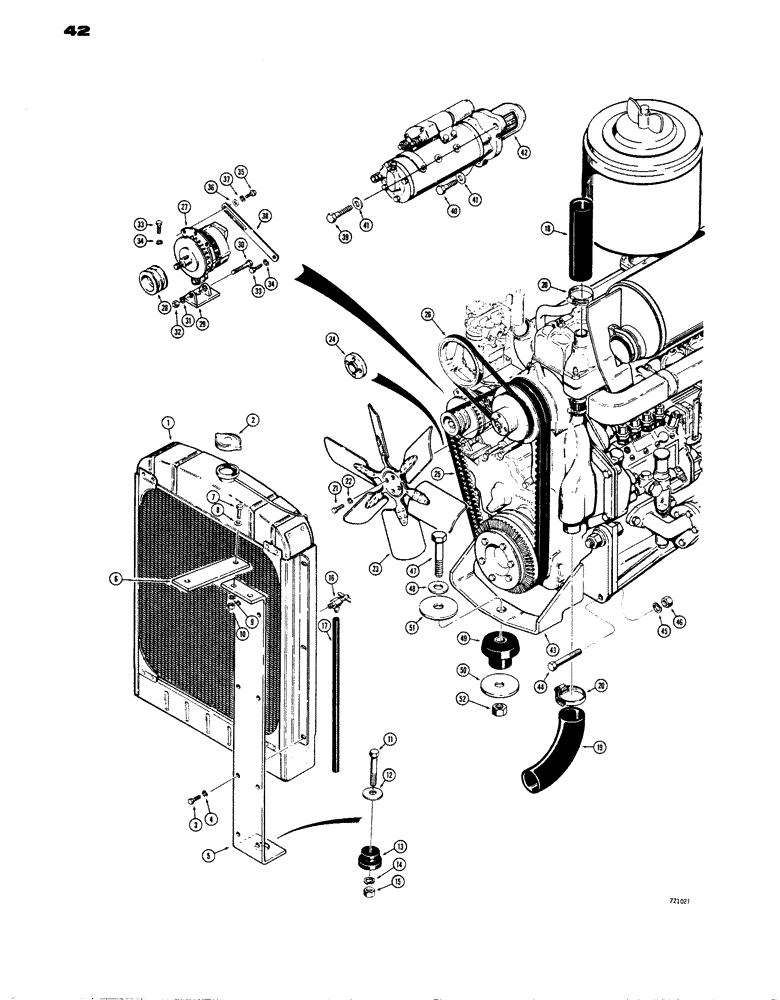

Запчасти Case W14 (042) - ENGINE, RADIATOR AND RELATED PARTS (02) - ENGINE

1

L52525

RADIATOR

- cooler, Includes: Ref. 2

1шт.

REF.1 - NO SHROUD AVAILABLE FOR IT.

1шт.

2

D25826

CAP

- radiator

1шт.

3

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

4

92-5

LOCK WASHER,5/16"

6шт.

5

L50640

SUPPORT

- radiator

2шт.

6

L50641

CONNECTING STRIP

STRAP - radiator support

2шт.

7

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

8

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

9

92-6

LOCK WASHER,3/8"

4шт.

10

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

11

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

HHCS - 1/2" - 13 NC x 2-1/2"

2шт.

12

195-2061

WASHER,5/8" x 1 7/8" x .134"

- flat (1/2")

2шт.

13

L46821

SHOCK ABSORBER

BRUSHING - rubber, radiator mount

2шт.

14

92-8

LOCK WASHER,1/2"

2шт.

15

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

2шт.

16

A23655

VALVE

- radiator drain

1шт.

17

L13809

RADIATOR HOSE,6.40 mm ID x 609.60, SAE 30R2 Type I

- Radiator drain 6.40 mm ID x 609.60, SAE 30R2 Type I

1шт.

18

L48820

HOSE

- radiator, upper (2-1/2"I.D. x 7-3/4" long)

1шт.

19

L18970

RADIATOR HOSE,2.60" ID x 9.50", SAE 20R4

Lower 2.60" ID x 9.50", SAE 20R4

1шт.

20

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose

4шт.

21

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

(A15504 fan) Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

21

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2" (A15519 fan)

4шт.

22

92-6

LOCK WASHER,3/8"

4шт.

23

A15504

FAN

- pusher, radiator cooling

1шт.

23

A15519

FAN

- suction, radiator cooling

1шт.

24

L49007

SPACER

- A15519 fan only

1шт.

25

L51181

SET OF BELTS,0.69" W x 52.25" L

V-Belt, Fan and alternator drive 0.69" W x 52.25" L

1шт.

26

L51182

V-BELT,0.50" W x 41.69" L

L52092 Compressor 0.50" W x 41.69" L

1шт.

26

L57802

V-BELT,12.70" W

- L17683 Compressor, 49" circumference

1шт.

27

A41360

ALTERNATOR

- Motorola #MH24N-901 (Parts list Figure 034)

1шт.

27

L55767

ALTERNATOR

- Motorola #BHC 3006F

1шт.

28

A41361

PULLEY

- alternator

1шт.

29

A38492

BRACKET

- alternator mounting

1шт.

30

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

HHCS - 3/8" - 16 NC x 3"

1шт.

31

92-6

LOCK WASHER,3/8"

1шт.

32

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

33

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

34

92-6

LOCK WASHER,3/8"

3шт.

35

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

1шт.

36

95-5

WASHER,3/8" x 7/8" x .083"

- standard wrot (5/16")

1шт.

37

92-5

LOCK WASHER,5/16"

1шт.

38

A62429

STRAP

- alternator adjusting

1шт.

39

13-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

1шт.

40

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

41

R24323

WASHER

- special

3шт.

42

R26136

STARTER MOTOR

STARTER - electrical (Parts list Figures 036 - 038)

1шт.

43

L50755

BRACKET

- engine mount

1шт.

44

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

4шт.

45

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

46

25-1012

NUT,3/4"-10, G5

4шт.

47

13-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

1шт.

48

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special

1шт.

49

S93392

MOUNTING PARTS

MOUNT - rubber, engine

1шт.

50

A19068

WASHER

- special

1шт.

51

A61406

WASHER

- special

1шт.

52

131-657

LOCK NUT,3/4"-10, GB

NUT - hex. lock (3/4" - 10 NC)

1шт.
